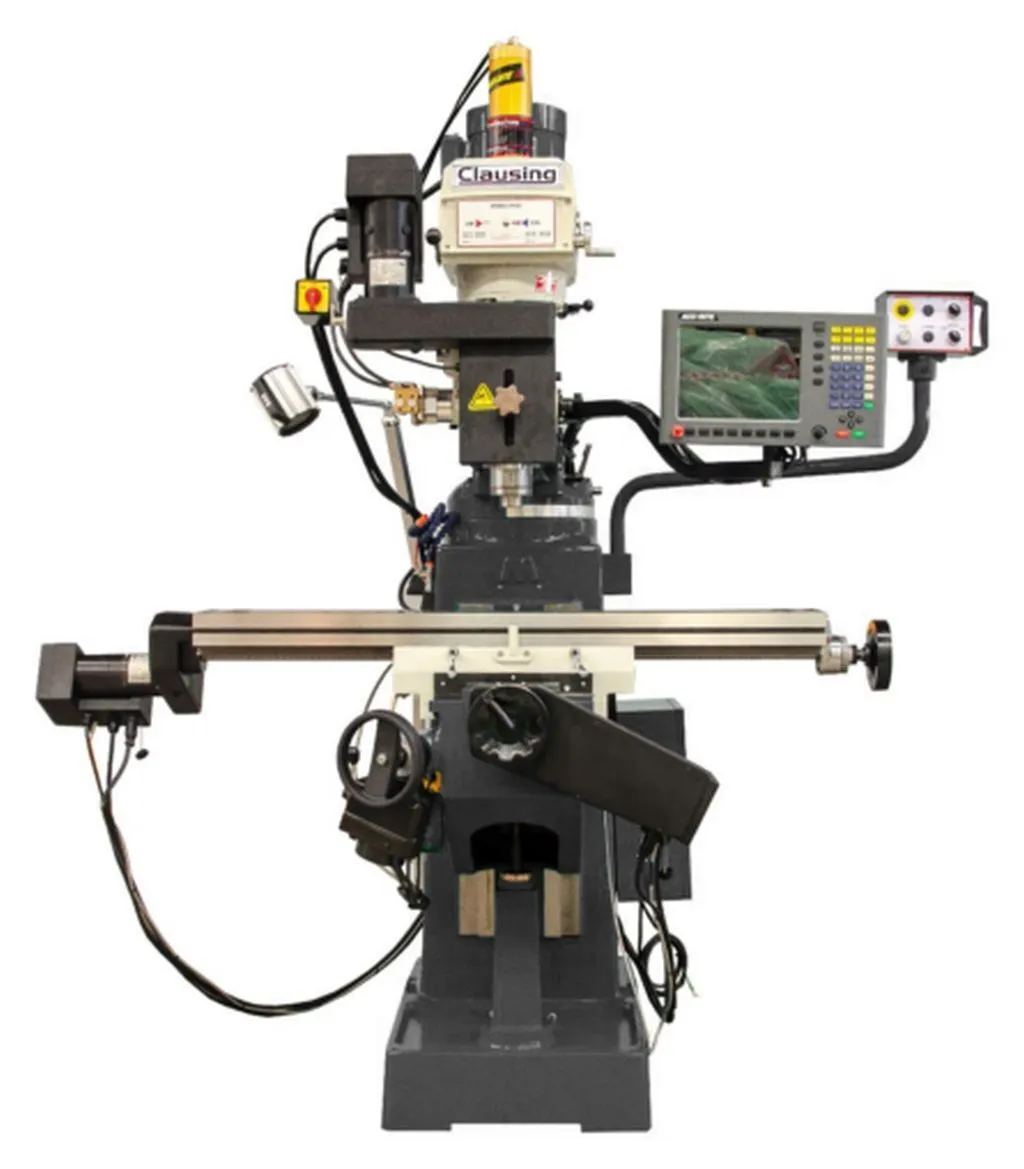

New 2025 Clausing 2VS30CNC3L CNC Knee Mill

Machine Style..........CNC Knee Mill
Number Controlled Axes..........3 (X,Y, Z-Quill)
Spindle Speed Control..........Manual Variable Speed
Spindle (Hp)..........3
Table Size (inch)..........9 x 49
Number T-Slots..........3
T-Slot Width (inch)..........(.638)
T-Slot Center Distance (inch)..........2.08
Table Way Design..........Dovetail
Cross Feed Way Design..........Dovetail
Knee Way Design..........Dovetail
X Longitudinal Travel Auto (inch)..........30
Y Cross Travel Auto (inch)..........11.5
Knee Travel Manual (inch)..........15
Ram Travel Manual (inch)..........18.5
Programmed Feed Rate X,Y,Z (in/min)..........0-100
Rapid Feed X,Y,Z (in/min)..........100
Variable Spindle Speed (rpm)..........60 – 4300
Variable Spindle Speed Low Range (rpm)..........60 – 500
Variable Spindle Speed High Range (rpm)..........550 – 4300
Spindle Taper..........NMTB 30
Spindle quill Travel (inch)..........5
Quill Diameter (inch)..........3.38
Column Turret Diameter (inch)..........14.96
Knee Width (inch)..........11.42
Column Bearing Length (inch)..........16.54
Saddle/Table Bearing Length (inch)..........19.88
Ram/Turret Bearing Length (inch)..........16.14
Ram Length (inch)..........28.94
Table Load (lbs.)..........665
Machine Weight (lbs.)..........2,250
Machine Voltage Required..........208/230/460
Phase..........3
Control Voltage..........115
Phase..........1
Machine Foot Print (LxWxH) (inch)..........99 x 66 x 88.6
Shipping Weight (lbs.)..........2,600

Machine Features:
G2 Acu-Rite Mill Power Control
X, Y, Z Ballscrews
Linear position feedback X,Y, Z-Quill
Manual variable speed with sheave pulley drive
9” x 49” Table surface
Meehanite Castings for superior rigidity and wear resistance
Hardened and Ground X,Y, and Knee ways
X/Y ways coated with Turcite B for excellent wear resistance
Column and Knee way covers
Ground T-slots to provide reference edge for workpiece positioning
Hardened and ground table surface, and spindle
Chromed and ground quill
ABEC7/CP4 Spindle bearings
Coolant System w/pump and switch
Head will tilt 45 degree up and down by worm gear
Z-quill ballscrew dis-engagement nut to allow manual quill operation with quick lever (no re-home required after re-engagement)
Reversing switch for clockwise or counter clockwise operation of spindle
Hand operated spindle brake
One shot way lube system
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service.
