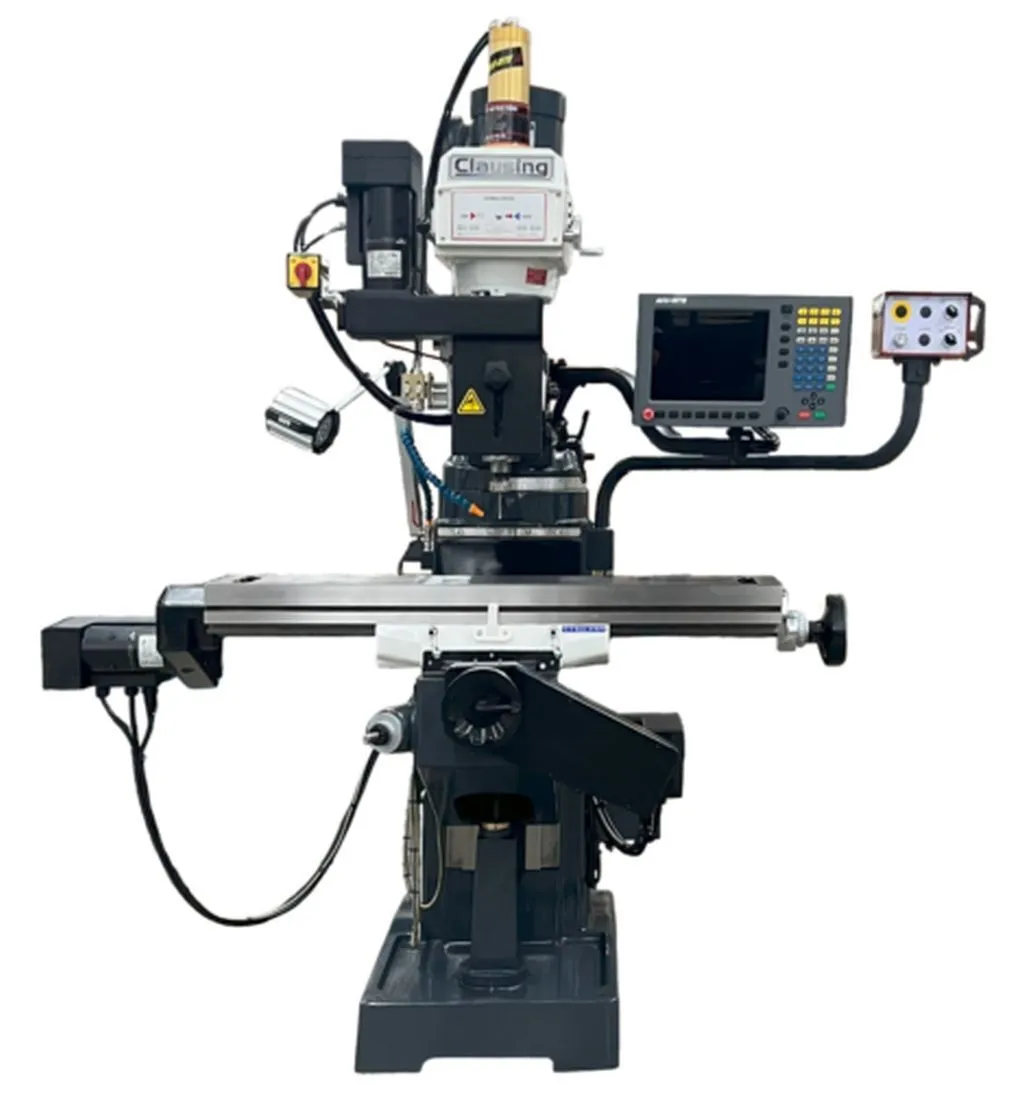

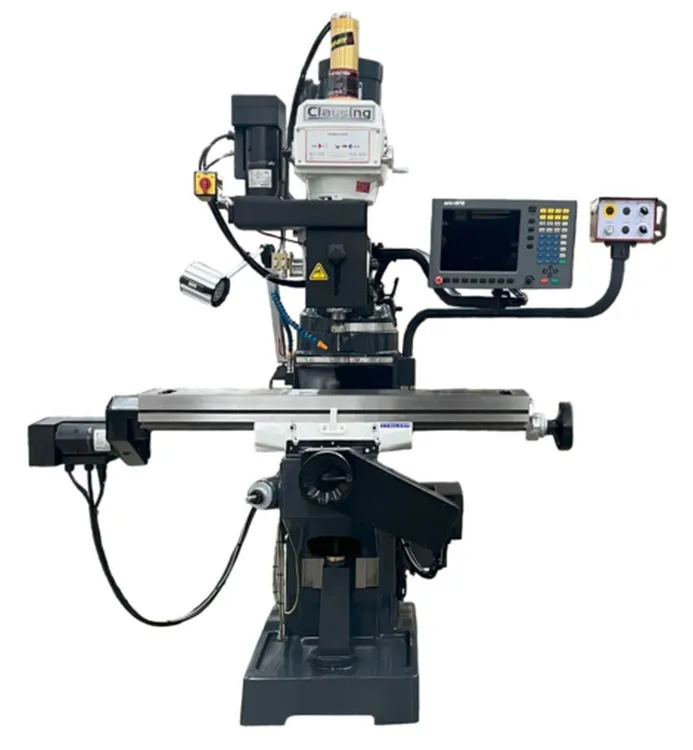

New 2025 Clausing 4EVSQCNCAR CNC Knee Mill

Machine Style..........CNC Knee Mill
Number Controlled Axes..........2 (X,Y)
Spindle Speed Control..........Electronic Inverter Variable
Spindle (Hp)..........5
Table Size (inch)..........10 x 54
Number T-Slots..........3
T-Slot Width (inch)..........(.638)
T-Slot Center Distance (inch)..........2.08
Table Way Design..........Dovetail
Cross Feed Way Design..........Square
Knee Way Design..........Square
X Longitudinal Travel Auto (inch)..........33
Y Cross Travel Auto (inch)..........16
Knee Travel Manual / AC Power (inch)..........17.7
Ram Travel Manual (inch)..........26.75
Programmed Feed Rate X,Y (in/min)..........0-100
Rapid Feed X,Y (in/min)..........100
Variable Spindle Speed (rpm)..........60 – 4300
Variable Spindle Speed Low Range (rpm)..........60 – 500
Variable Spindle Speed High Range (rpm)..........550 – 4300
Spindle Taper..........NMTB 40
Spindle quill Travel (inch)..........5
Quill Feed (in/rev)..........(.0015/.0031/.006)
Quill Diameter (inch)..........3.38
Column Turret Diameter (inch)..........4.13
Knee Width (inch)..........13.39
Column Bearing Length (inch)..........16.93
Saddle/Table Bearing Length (inch)..........16.93
Ram/Turret Bearing Length (inch)..........20.28
Ram Length (inch)..........17.13
Table Load (lbs.)..........1,108
Machine Weight (lbs.)..........33.46
Machine Voltage Required..........230/460
Phase..........3
Control Voltage..........115
Phase..........1
Machine Foot Print (LxWxH) (inch)..........77.6 x 106.3 x 88.8
Shipping Weight (lbs.)..........3,930

Machine Features:
G2 Acu-Rite Mill Power Control
X, Y Ballscrews
Linear position feedback X,Y
Electronic inverter variable speed
10” x 54” Table surface
Meehanite Castings for superior rigidity and wear resistance
Hardened and Ground X,Y, Knee ways
X/Y ways coated with Turcite B for excellent wear resistance
Column and Knee way covers
Ground T-slots to provide reference edge for workpiece positioning
Hardened and ground table surface, and spindle
Chromed and ground quill
ABEC7/CP4 Spindle bearings
Coolant System w/pump and switch
Articulating head for compound angles 90 degree left and right 45 degree up and down by worm gear
Lever operated manual rapid quill movement with linear scale
Hand wheel for fine quill feed
Adjustable automatic feed disengagement for quill feed
Micrometer depth stop for quill
Reversing switch for clockwise or counter clockwise operation of spindle
Hand operated spindle brake
One shot way lube system
AC Power knee elevation
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
