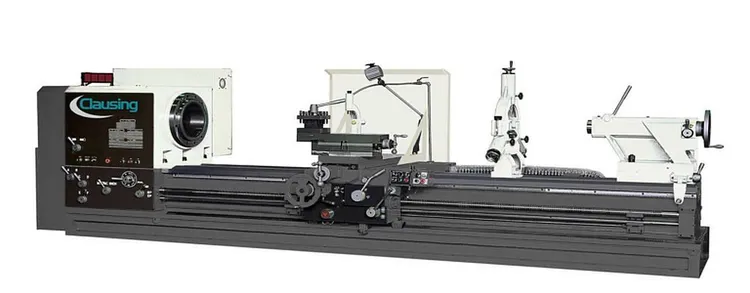

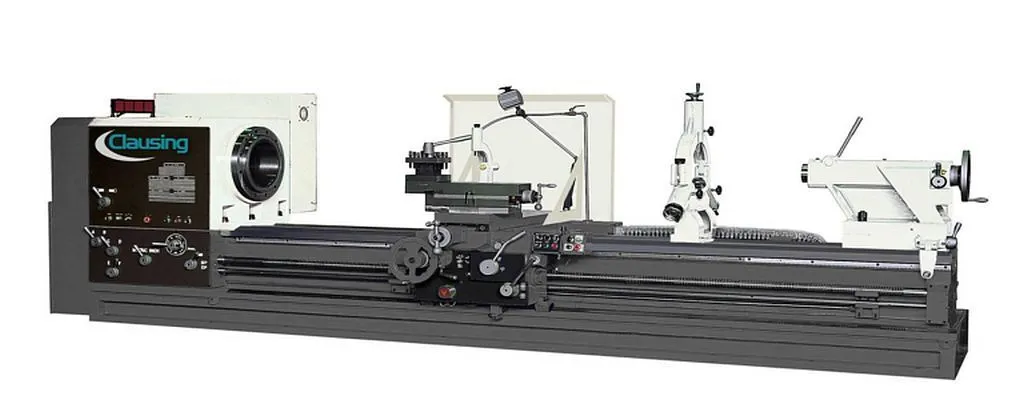

New 2025 MB-Series – Clausing Large Swing Capacity Oil Country Lathe. 70” Swing over Bed, Gear Head or Infinitely Variable Speed Gap Bed Engine Lathe

Machine Style Large Swing Engine Lathe
Spindle Speed Control Geared Head or Variable
Spindle (Hp)......... 30-50
Swing Over Bed (inch) 70
Swing Over Cross slide (inch) 57
Swing in Gap (inch).. 90
** Maximum Weight Between Centers (lbs.) Standard 11,000
** Maximum Weight BC with Steady (lbs.) Standard 13,200
** Maximum Unsupported weight in Chuck (lbs.) STD 6,600
Distance Between Centers (inch)....... 482
Bed Width with Auxiliary Way (inch).. 32
Bed Width Across V and Flat (inch)... 28
Bed Height from Floor (inch)......... 26.77
Spindle Bore (inch) 24.02
Spindle Nose A-Mount 11-20
Number of Spindle Speeds Gear Head......18
Spindle Speed RPM Range (standard RPM)..7-700
Number of Spindle Speeds Variable.......4-Auto Change
Spindle Speed RPM Range (standard RPM)..7-700
Cross Slide Travel (inch)...............31.5
Top Slide Travel (compound) (inch) 17.7
Tailstock Quill Diameter standard (inch) 5.7
Tailstock Quill Travel standard (inch) 7.87
Tailstock Quill Taper standard 6 MT
Longitudinal Feed Range (in/rev) 0.0018 – 0.1
Cross Feed Range (in/rev) 0.0009 – 0.05
Number of Inch Pitches........ 60
Range of Inch Pitches......... 1/2 – 28
Number of Metric Pitches...... 60
Range of Metric Pitches....... 1 – 56
Number of Diametral Pitches... 60
Range of Diametral Pitches.... 2 – 112
Number of Module Pitches...... 60
Range of Module Pitches....... 0.25 – 14
Coolant System Yes
Voltage Required 230/460
Phase 3
Machine Foot Print (LxWxH)(inch)Based on Specific Model
Machine Weight (lbs.) Based on Specific Model
