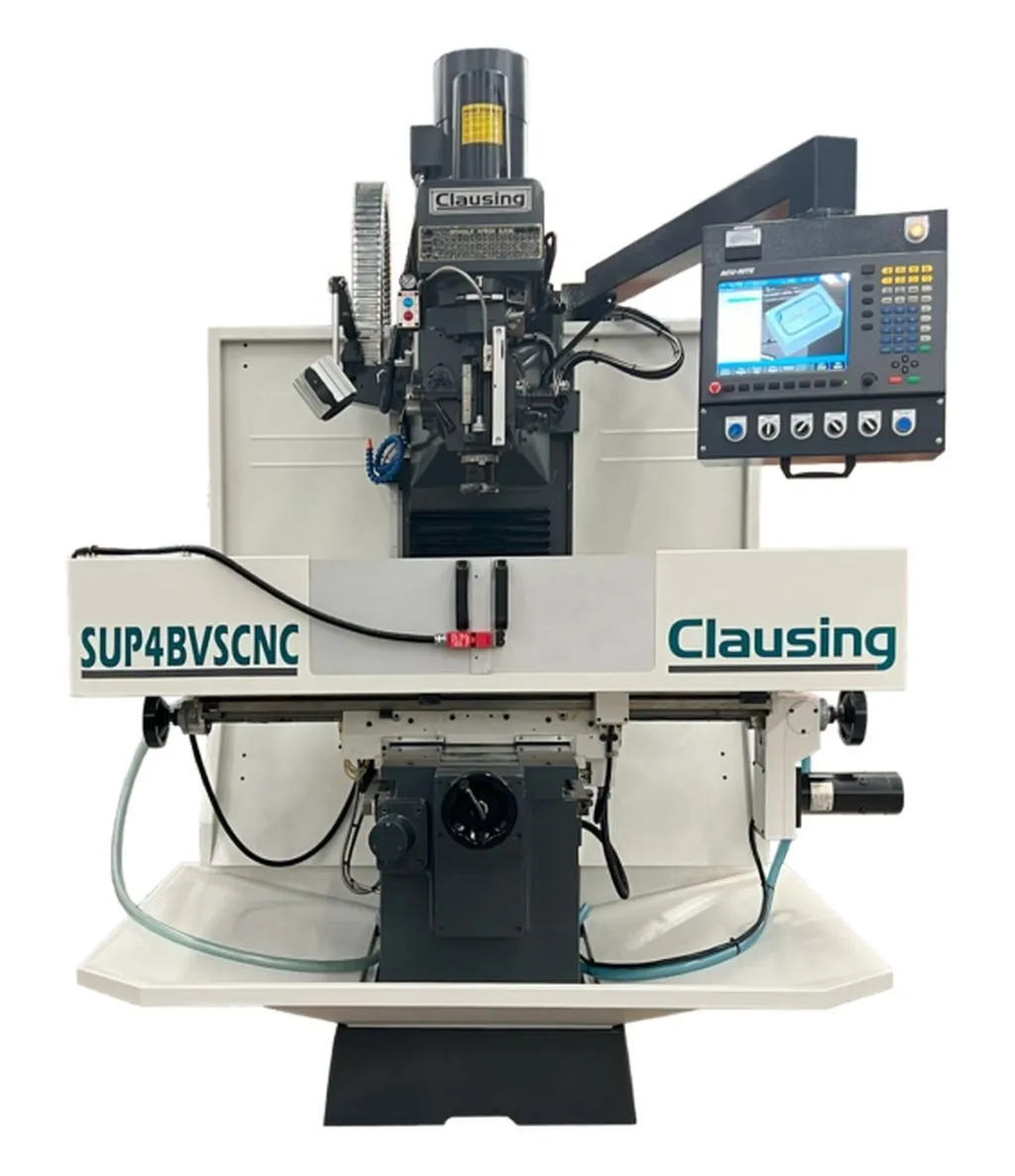

Clausing SUP4BVSCNCFG CNC Bed Mill

Machine Style..........CNC Super Bed Mill
Number of Control Axes..........3 (X, Y, Z-Column)
Manual Quill Scale W-Axis..........Yes (synchronized)
Spindle Speed Control..........Electronic Variable Speed
Spindle Motor Horsepower..........5
Table Size (inch)..........10 x 54
Table Load Capacity (lbs.)..........1,500
T-Slot Width (in)..........(.63)
T-Slot Center Distance (inch)..........2.48
Number T-Slots..........3
Table Way Design..........Dovetail
Cross Feed Way Design..........Square
Column Way Design..........Square
X – Longitudinal Travel Auto (inch)..........30.51
Y – Cross Travel Auto (inch)..........17.52
Z – Column Travel Auto (inch)..........19.69
W – Quill Travel (inch)..........5
Programmed Feed Rate X,Y (in/min)..........0-100
Rapid Feed X,Y (in/min)..........100
Programmed Feed Rate Z (in/min)..........0-75
Rapid Feed Z (in/min)..........75
Head Tilt Left or Right..........90°
Variable Spindle Speed (rpm)..........65 – 5160
Variable Spindle Speed Low Range (rpm)..........65 – 590
Variable Spindle Speed High Range (rpm)..........575 – 5160
Spindle Taper..........NMTB 40
Quill Feed (in/rev)..........(.0016/.003/.006)
Quill Diameter (inch)..........4.13
Length of Saddle on Bed (inch)..........25.98
Width Across Bed Ways (inch)..........16.53
Spindle Nose to Table (inch)..........3.15 – 22.83
Center of Spindle to Column Ways (inch)..........17.32
Floor to Table Surface (inch)..........36.2
Table to Column Ways (inch)..........3.15 – 20.87
Voltage Required..........230 or 460 (w/transformer)
Phase..........3
Machine Weight (lbs.)..........4,400
Machine Foot Print (WxDxH) (inch)..........71.46 x 66.14 x 78.74
Shipping Weight (lbs.)..........5,200

Machine Features:
Fagor 8055i Control
C7 double nut X,Y,Z axes 1.26” diameter ballscrew
Linear position feedback X,Y, Z-Column, Manual W-Quill
Powerful 5 Hp main spindle drive motor
Electronic inverter variable spindle speed with 2 ranges and 2 mechanical shift ranges
Hardened and ground spindle with NMTB/NT 40 spindle taper
Hardened and chromed quill with 5” travel
CP4 ABEC7 angular contact spindle bearings
Hardened and ground table surface with ground t-slots for reference edges
Hardened and ground dovetail ways X axis, hardened and ground square ways Y and Z axis
“ Turcite B” coating on saddle X,Y axes ways
Meehanite castings for superior rigidity and wear resistance
Stainless steel front Y axis way cover, rubber Y axis rear and Z axis
Automatic lubrication with alarm
Halogen worklight
Coolant system with pump
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
