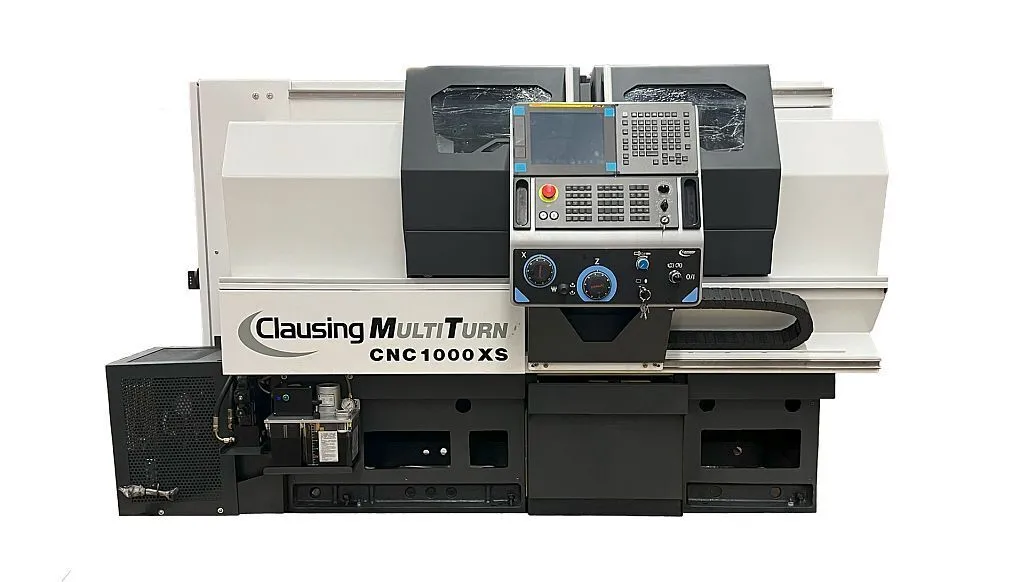

New 2025 Clausing MultiTurn CNC1000SC Flat Bed CNC Lathe with Teach Functions, 13.7” Swing over Bed

Machine Style..........CNC Teach Lathe
CNC Control..........Fanuc Oi w/Alpha or Siemens 828
Spindle Speed Control..........Variable AC Drive
Spindle (Hp)..........7.5/10
Swing Over Bed (inch)..........13.75
Swing Over Cross slide (inch)..........7.7
Swing in Gap (inch)..........21
Distance Between Centers (inch)..........25
Bed Width (inch)..........12.5
Spindle Bore (inch)..........1.6
Spindle Nose (camlock)..........D1-4
Spindle Nose Taper..........3 MT
Number of Spindle Speeds..........3 infinitely variable
Spindle Speed RPM Range..........1 – 3500
X-Axis Rapid Travers (in/min)..........315
Z-Axis rapid Traverse (in/min)..........394
X-Axis Thrust (lbs.)..........915
Z-Axis Thrust (lbs.)..........2,064
X-Axis Ballscrew..........20 x 4 mm
Z-Axis Ballscrew..........32 x 6 mm
Positioning Accuracy (inch)..........0.0002
Repeatability (inch)..........0.0001
Tailstock Quill Diameter (inch)..........2.48
Tailstock Quill Travel (inch)..........5.5
Tailstock Quill Taper..........4 MT
Optional 8 Station Turret..........VDI 30
Coolant System..........Yes
Voltage Required..........230/460
Phase..........3
Machine Footprint (LxWxH) (inch)..........79 x 67 x 59
Machine Weight (lbs.)..........3,967

Machine Features:
• Fanuc OI with Alpha Control or Siemens 828 Control
• Din 8605 toolroom accuracy specification.
• 25” between center distance
• 13.75” Swing over bed
• 3 Speed Infinitely Variable Speed headstock with speeds ranging from 1 to 3500 RPM
• All headstock gears are hardened and ground
• Headstock shafts are splined and turn on anti-friction bearings
• Spindle bearings, gears, and shafts are lubricated by a forced lubrication system
• Cross slide runs along a dovetail guide
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted wipers with automatic lubrication system
• Cast Iron Plinths with full enclosure and interlocking sliding doors
• Interlocked chuck guard for manual operations
• Pull out chip pan for easy chip removal
• Extra wide bed provides accuracy and minimal wear
• Carriage ways coated with “Moglice” PTFE for minimal bed wear and longer machine life
• Optional 8 station power VDI 30 turret
• A one-year warranty backed by Clausing Service Center.
• We are dedicated to support our customers with parts and service.

Features and Benefits:
Clausing Colchester/Harrison CNC Teach Lathes are the industry standard for lathes. The quality built into every machine translates into real long-term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. The operator can use the Alpha system to use the machine manually and/or automatic cycles. Manual Guide i allows for quick easy programming of production runs. This ability to operate the machine manual or full CNC machine makes it exceptional for toolrooms, R&D facilities, maintenance shops, and small production jobs.

Alpha System’s unique operation-based control software developed by Colchester/Harrison uses easily recognizable screen graphics along with simple question and answer prompts to guide you through a programming operation. It is also the reason that the Alpha System uses a touch screen so you can work directly on screen rather than hunt for the right button to press. This system will allow you to program 26 different operations and store them in the control.

Manual Guide i Colchester/Harrison programming system allows the operator to generate part programs quickly and efficiently through the use of easy-to-understand conversational style cycle prompts. A comprehensive list of cycle and profile commands is provided. The part program can be verified with the Manual Guide Graphics function prior to cutting the component.

Siemens 828 control is equipped with a full QWERTY CNC keyboard with short-stroke keys and a high resolution 10.4” color display. Control is extremely easy to operate. Equipped with USB, CF card and RJ45 interfaces at the operator panel CNC data can be quickly and easily transferred. Precision Siemens drives compute with high-performance 80-bit NANO accuracy. This eliminates rounding errors and results in an extremely high internal computational accuracy in the complete controller circuit. Nodding compensation is used to compensate dynamic position deviations that occur when machine axes accelerate. This improves machining quality, and at the same time, allows higher jerk and acceleration values to be reached
