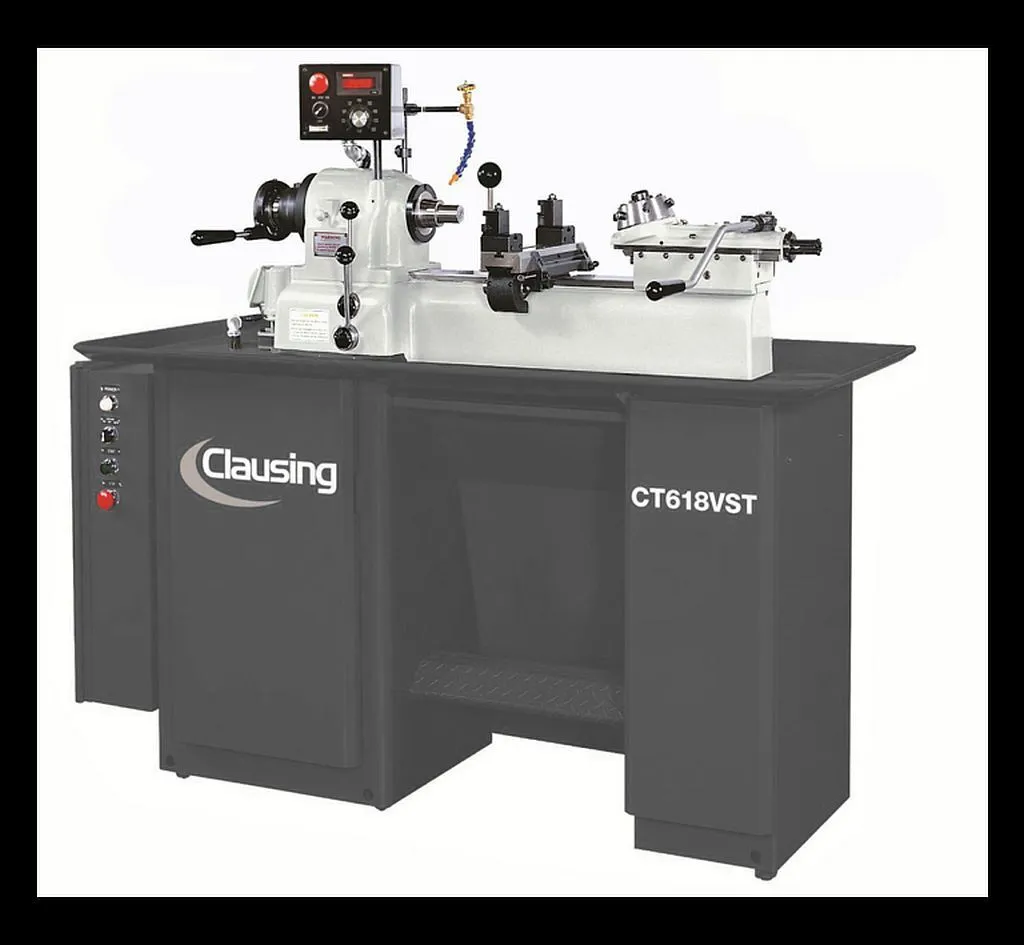

New 2025 Clausing CT618VST 9” Swing Over Bed, Toolroom Lathe
Have one to sell?
ConditionNew
New
Discover precision with the 2025 Clausing CT618VST Toolroom Lathe. Featuring a 9” swing over bed, 3 hp spindle power, and variable speeds up to 4000 rpm, this new lathe is designed for exceptional performance in demanding settings.
Specifications:
Machine Style..........Toolroom Lathe
Spindle Speed Control..........Inverter Variable Speed
Spindle (Hp)..........3
With Chuck (inch)..........6
With Expanding Collets (inch)..........3
With Round 5C Collets (inch)..........1-1/16
With Hexagon 5C Collets (inch)..........7/8
With Square 5C Collets (inch)..........3/4
With Step Chuck (inch)..........1-1/16 to 6
Spindle Nose Diameter (inch)..........2.18
Spindle Nose I.D. / O.D...........5C (10°)/4° Taper
Spindle Speeds (rpm)..........50-4000
Hole Through Spindle (inch)..........1-1/4
Bar Stock Diameter 5C Collet (inch)..........1-1/16
Distance between Centers (inch)..........No Tailstock 6-way turret
Swing Over Bed (inch)..........9
Swing Over Carriage (inch) –
Swing Over Cross Slide (inch) –
Carriage Power Feed Range (variable)..........0.236 – 9.8 in/min
Cross Slide Power Feed Range (variable) –
Cross Slide Travel (inch) –
Quick Action Compound Slide Travel (in) –
Compound Slide Travel (inch)..........X=4.48, Z=5.5
Coolant Pump (Hp)..........1/8
Feed Inverter (Hp) –
Tailstock Quill Travel (inch)..........6-way 3.7
Range of Threads (inch) –
Range of Threads (mm) –
Voltage Required..........230/460
Phase..........3
Machine Foot Print (LxWxH) (inch)..........69 x 28 x 63
Machine Weight (lbs.)..........1,364
Machine Features:
• Spindle run out within 50 millionths of an inch
• Six Station indexing turret on tailstock end
• Hardened and precision ground spindle mounted on high-precision preloaded angular contact ball bearings maximizes rigidity and sustained precision
• 3 Hp Infinitely variable spindle speed provides desired speed on demand
• High/Low speed quick change lever for convenience
• Fast lever collet closer allows chucking with one single movement
• Independent electric variable feeds for carriage and cross slide provide freedom of operation
• Hardened and precision ground alloy steel bed ways resist wear
• Turcite-B slideway bearing surface between carriage and bed
• Double Tool Cross Slide for many practical applications
• CE Electrics with plastic interlocking chuck guard
• Standard Machine voltage 230/3/60 (other voltages require a transformer)
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
Discover precision with the 2025 Clausing CT618VST Toolroom Lathe. Featuring a 9” swing over bed, 3 hp spindle power, and variable speeds up to 4000 rpm, this new lathe is designed for exceptional performance in demanding settings.
T.R. Wigglesworth Machinery Company has represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing Toolroom lathes
Used for 5C collet work and precision finishing operations. Spindle run out is within 50 millionths of an inch or better. Infinitely variable speed is the industry standard for lathes. The quality built into every machine translates into real long-term performance for your application.
Inverter driven variable speed for smooth vibration free and extreme quite operation. High/Low Speed quick change lever for convenience.
Three phase voltage refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Swing | 9" |
| Taper | 5.0 |
| Power | 3 hp |
| RPM | 4,000 RPM |
| Dimensions | 69" x 28" x 63" |
| Weight | 1,364Lbs. |
Specifications:
Machine Style..........Toolroom Lathe
Spindle Speed Control..........Inverter Variable Speed
Spindle (Hp)..........3
With Chuck (inch)..........6
With Expanding Collets (inch)..........3
With Round 5C Collets (inch)..........1-1/16
With Hexagon 5C Collets (inch)..........7/8
With Square 5C Collets (inch)..........3/4
With Step Chuck (inch)..........1-1/16 to 6
Spindle Nose Diameter (inch)..........2.18
Spindle Nose I.D. / O.D...........5C (10°)/4° Taper
Spindle Speeds (rpm)..........50-4000
Hole Through Spindle (inch)..........1-1/4
Bar Stock Diameter 5C Collet (inch)..........1-1/16
Distance between Centers (inch)..........No Tailstock 6-way turret
Swing Over Bed (inch)..........9
Swing Over Carriage (inch) –
Swing Over Cross Slide (inch) –
Carriage Power Feed Range (variable)..........0.236 – 9.8 in/min
Cross Slide Power Feed Range (variable) –
Cross Slide Travel (inch) –
Quick Action Compound Slide Travel (in) –
Compound Slide Travel (inch)..........X=4.48, Z=5.5
Coolant Pump (Hp)..........1/8
Feed Inverter (Hp) –
Tailstock Quill Travel (inch)..........6-way 3.7
Range of Threads (inch) –
Range of Threads (mm) –
Voltage Required..........230/460
Phase..........3
Machine Foot Print (LxWxH) (inch)..........69 x 28 x 63
Machine Weight (lbs.)..........1,364
Machine Features:
• Spindle run out within 50 millionths of an inch
• Six Station indexing turret on tailstock end
• Hardened and precision ground spindle mounted on high-precision preloaded angular contact ball bearings maximizes rigidity and sustained precision
• 3 Hp Infinitely variable spindle speed provides desired speed on demand
• High/Low speed quick change lever for convenience
• Fast lever collet closer allows chucking with one single movement
• Independent electric variable feeds for carriage and cross slide provide freedom of operation
• Hardened and precision ground alloy steel bed ways resist wear
• Turcite-B slideway bearing surface between carriage and bed
• Double Tool Cross Slide for many practical applications
• CE Electrics with plastic interlocking chuck guard
• Standard Machine voltage 230/3/60 (other voltages require a transformer)
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
