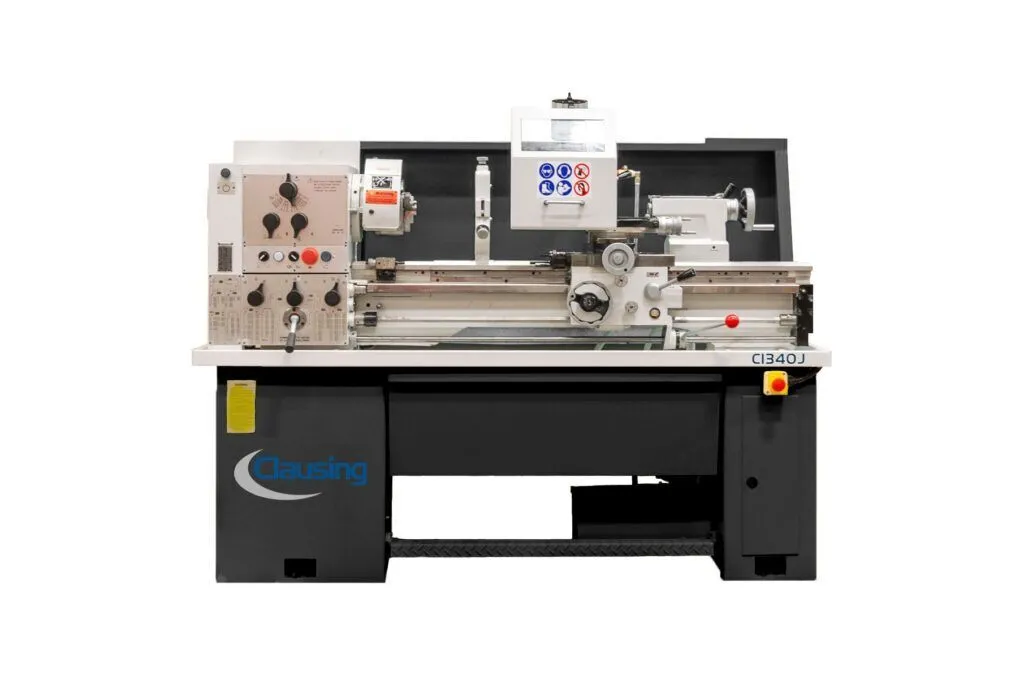

New 2025 Clausing C1340J Geared Head, Gap Bed Engine Lathe "In Stock Now"

Specifications:
• Machine Style..........Engine Lathe
• Spindle Speed Control..........Geared Head
• Spindle (Hp)..........3
• Swing Over Bed (inch)..........13
• Swing Over Cross slide (inch)..........7.5
• Swing in Gap (inch)..........19.5
• Distance Between Centers (inch)..........40
• Bed Width (inch)..........7.3
• Spindle Bore (inch)..........1.375
• Spindle Nose (camlock)..........D1-4
• Spindle Nose Taper..........3 MT
• Number of Spindle Speeds..........16
• Spindle Speed RPM Range..........53 – 2000
• Cross Slide Travel (inch)..........7.5
• Width of Cross Slide (inch)..........4.72
• Top Slide Travel (compound) (inch)..........3.5
• Tailstock Quill Diameter (inch)..........1.56
• Tailstock Quill Travel (inch)..........4.375
• Tailstock Quill Taper..........3 MT
• Longitudinal Feed Range (in/rev)..........0.008 – 0.041
• Cross Feed Range (in/rev)..........0.00026 – 0.0136
• Number of Inch Pitches..........47
• Range of Inch Pitches..........4 – 144
• Number of Metric Pitches..........44
• Range of Metric Pitches..........0.2 – 14
• Number of Diametral Pitches..........30
• Range of Diametral Pitches..........4 – 44
• Number of Module Pitches..........24
• Range of Module Pitches..........0.3 – 3.5
• Coolant System..........Yes
• Voltage Required..........(220) 230/460
• Phase..........3
• Machine Footprint (LxWxH) (inch)..........76 x 42 x 62
• Machine Weight (lbs.)..........1,584

Machine Features:
• 30” between center distance
• D1-4 Camlock spindle nose
• 2-Speed motor drive for 16-step speed ranges from 53-2000 rpm
• 3 Hp (2.25Kw) spindle motor
• 13” swing over the bed
• Induction hardened and precision ground bed
• Headstock gears are precision hardened and ground
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted one-shot lubrication pump
• Universal gearbox provides comprehensive range of metric, imperial (inch), M.P., and D.P. threading
• Thread dial indicator
• T-slotted top slide
• Foot spindle brake
• Chip pan and chip guard
• Equipped with interlocked chuck guard, full splash guard, and leadscrew cover
• 4-way tool post
• 6” 3-jaw chuck
• Steady rest w/rollers 0.39” to 2.75” capacity
• Micrometer bedstop w/5 position turret positions
• Halogen work light
• Tool box and manual
• CE electrics
• A one-year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
