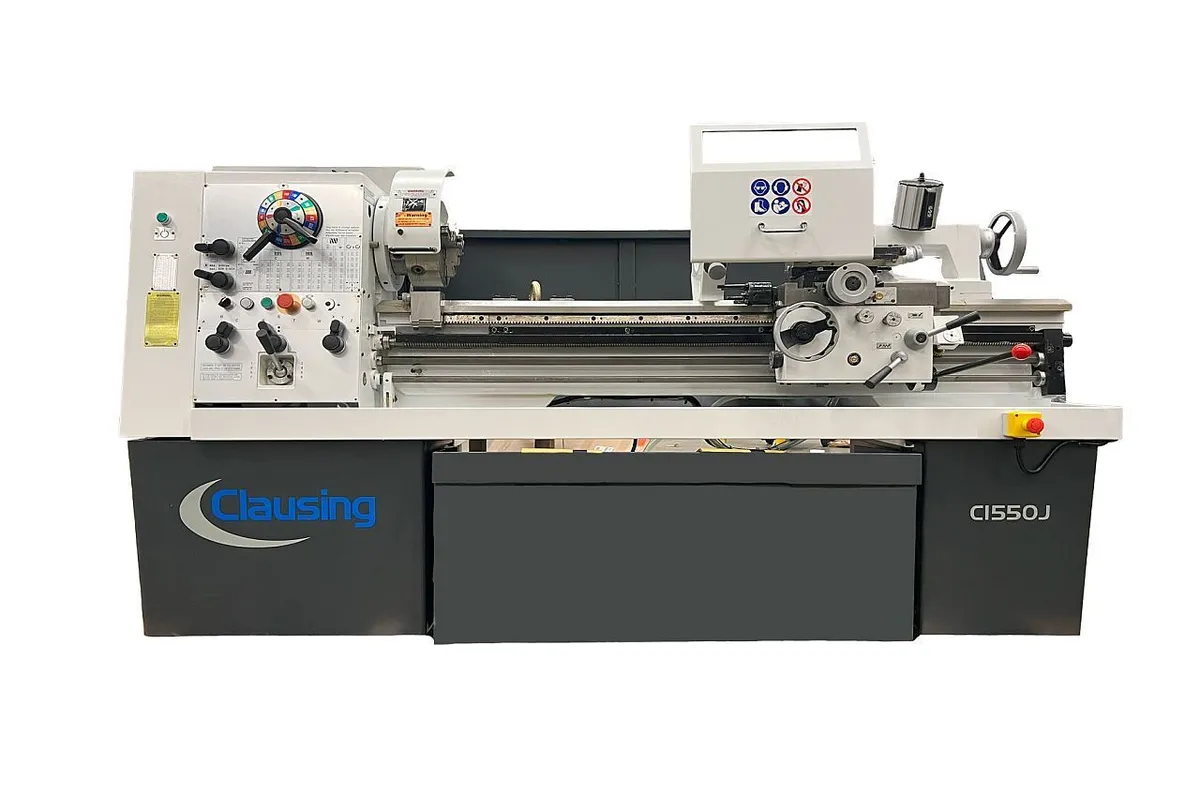

2025 Clausing C1550J – Geared Head Lathe with 15.25” Swing over Bed, Gap Bed Engine Lathe

Clausing geared head lathes are the industry standard. The quality built into every machine translates into real long term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. Camlock Spindles, a wide range of spindle speeds, full length rear splash guard with coolant system, and inch/metric threading make this machine a must have for any machine shop.

Geared head lathes use a belt drive system from the motor to gearbox head. Speed changes are then selected by shifting gear levers into a certain configurations recorded on a legend plate.

Three phase voltage refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.

Specifications
Machine Style Engine Lathe
Spindle Speed Control Geared Head
Spindle (Hp) 7.5
Swing Over Bed (inch) 15.25
Swing Over Cross slide (inch) 9.5
Swing in Gap (inch) 24
Distance Between Centers (inch) 50
Bed Width (inch) 11
Spindle Bore (inch) 2.125
Spindle Nose (camlock) D1-6
Spindle Nose Taper 6 MT
Number of Spindle Speeds 16
Spindle Speed RPM Range 25 – 2000
Cross Slide Travel (inch) 9
Width of Cross Slide (inch) 6.47
Top Slide Travel (compound) (inch) 4.75
Tailstock Quill Diameter (inch) 2.312
Tailstock Quill Travel (inch) 6.125
Tailstock Quill Taper 4 MT
Longitudinal Feed Range (in/rev) 0.0015 – 0.04
Cross Feed Range (in/rev) 0.0008 – 0.02
Number of Inch Pitches 45
Range of Inch Pitches 2 – 72
Number of Metric Pitches 39
Range of Metric Pitches 0.2 – 14
Number of Diametral Pitches 21
Range of Diametral Pitches 8 – 44
Number of Module Pitches 18
Range of Module Pitches 0.3 – 3.5
Coolant System Yes
Voltage Required 230/460
Phase 3
Machine Footprint (LxWxH) (inch) 97 x 40 x 50
Machine Weight (lbs.) 2,860
Machine Features:
50” between center distance
D1-6 Camlock spindle nose
16-Step spindle speed from 25 – 2000 rpm with soft start control
7.5 Hp (5.5Kw) spindle motor
15.25” swing over the bed
Induction hardened and precision ground bed
Headstock gears are precision hardened and ground
Precision tapered roller spindle bearings
Bed wipers and apron mounted one-shot lubrication pump
Universal gearbox provides comprehensive range of metric, imperial (inch), M.P., and D.P. threading
Thread dial indicator
T-slotted top slide
Magnetic spindle braking system with chip trolley
Equipped with interlocked chuck guard, full splash guard, and leadscrew cover
4-way tool post
10” 3-jaw chuck
LED worklight
Steady rest w/rollers 0.39” to 3.93” capacity
Micrometer bedstop w/5 position turret positions
Tool box and manual
CE electrics
A one-year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
