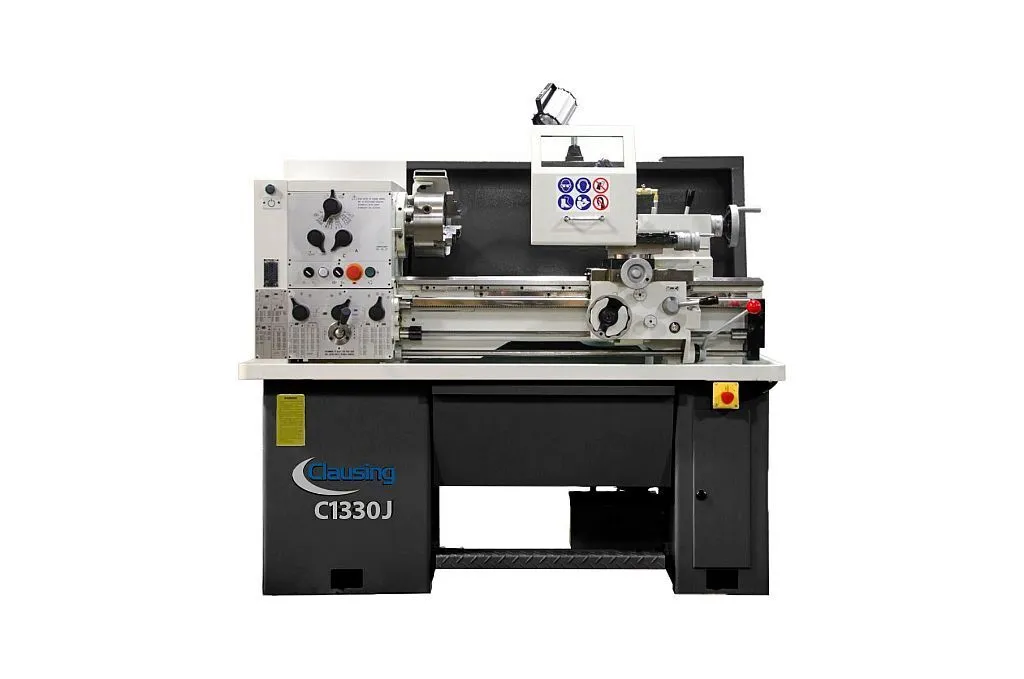

2025 Clausing C1330SJ – Geared Head Lathe with 13” Swing over Bed, Straight Bed Engine Lathe

Clausing geared head lathes are the industry standard. The quality built into every machine translates into real long-term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. Camlock Spindles, a wide range of spindle speeds, full length rear splash guard with coolant system, and inch/metric threading make this machine a must have for any machine shop.

Geared head lathes use a belt drive system from the motor to gearbox head. Speed changes are then selected by shifting gear levers into a certain configuration recorded on a legend plate.

Three phase voltage refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.

Machine Style Engine Lathe
Spindle Speed Control Geared Head
Spindle (Hp) 3
Swing Over Bed (inch) 13
Swing Over Cross slide (inch) 7.5
Swing in Gap (inch) 19.5
Distance Between Centers (inch) 30
Bed Width (inch) 7.3
Spindle Bore (inch) 1.375
Spindle Nose (camlock) D1-4
Spindle Nose Taper 3 MT
Number of Spindle Speeds 16
Spindle Speed RPM Range 53 – 2000
Cross Slide Travel (inch) 7.5
Width of Cross Slide (inch) 4.72
Top Slide Travel (compound) (inch) 3.5
Tailstock Quill Diameter (inch) 1.56
Tailstock Quill Travel (inch) 4.375
Tailstock Quill Taper 3 MT
Longitudinal Feed Range (in/rev) 0.008 – 0.041
Cross Feed Range (in/rev) 0.00026 – 0.0136
Number of Inch Pitches 47
Range of Inch Pitches 4 – 144
Number of Metric Pitches 44
Range of Metric Pitches 0.2 – 14
Number of Diametral Pitches 30
Range of Diametral Pitches 4 – 44
Number of Module Pitches 24
Range of Module Pitches 0.3 – 3.5
Coolant System Yes
Voltage Required (220) 230/460
Phase 3
Machine Footprint (LxWxH) (inch) 65 x 42 x 62
Machine Weight (lbs.) 1,474

Machine Features:
30” between center distance
D1-4 Camlock spindle nose
2-Speed motor drive for 16-step speed ranges from 53-2000 rpm
3 Hp (2.25Kw) spindle motor
13” swing over the bed
Induction hardened and precision ground bed
Headstock gears are precision hardened and ground
Precision tapered roller spindle bearings
Bed wipers and apron mounted one-shot lubrication pump
Universal gearbox provides comprehensive range of metric, imperial (inch), M.P., and D.P. threading
Thread dial indicator
T-slotted top slide
Foot spindle brake
Chip pan and chip guard
Equipped with interlocked chuck guard, full splash guard, and leadscrew cover
4-way tool post
6” 3-jaw chuck
Steady rest w/rollers 0.39” to 2.75” capacity
Micrometer bedstop w/5 position turret positions
Halogen work light
Tool box and manual
CE electrics
A one-year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
