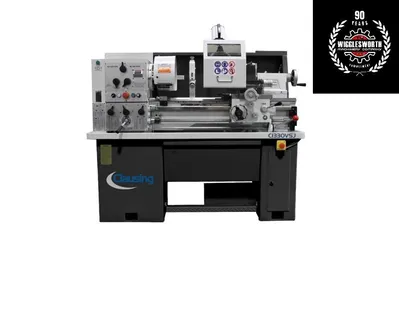

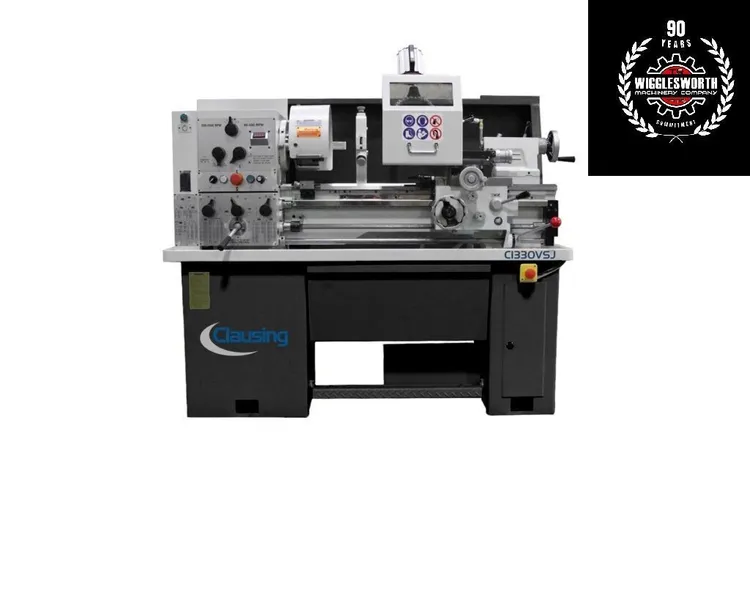

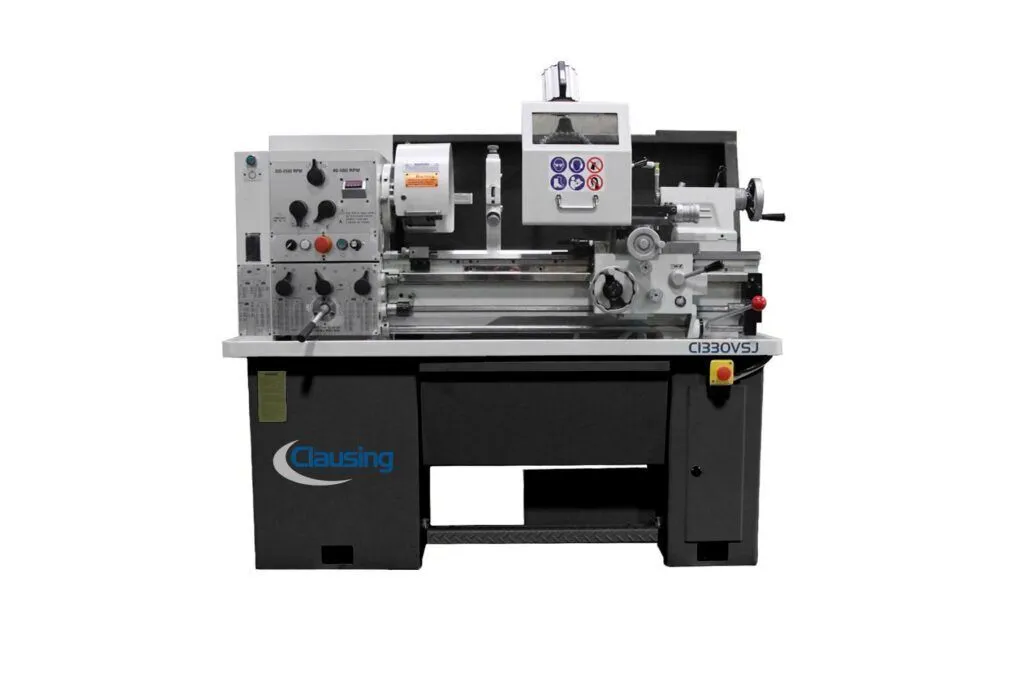

2025 Clausing C1330VSJ – Geared Head Lathe with 13” Swing over Bed, Straight Bed Engine Lathe
Have one to sell?
ConditionNew
1 available
New
13” Swing over bed, Variable Speed Gap Bed Engine Lathe, 2 Speed Motor, 3 Hp Spindle motor, 30” between centers, 7.5” Swing over the cross slide, 40 to 2500 RPM, 1.37” Spindle Bore, D1-4 camlock spindle nose, 1.56” Tailstock quill diameter with 3 morse taper bore, Inch/Metric threading with various pitch settings
Machine Style Engine Lathe
Spindle Speed Control Variable Inverter
Spindle (Hp) 3
Swing Over Bed (inch) 13
Swing Over Cross slide (inch) 7.5
Swing in Gap (inch) 19.5
Distance Between Centers (inch) 30
Bed Width (inch) 7.3
Spindle Bore (inch) 1.375
Spindle Nose (camlock) D1-4
Spindle Nose Taper 3 MT
Number of Spindle Speeds 2
Spindle Speed RPM Range 40 – 2500
Cross Slide Travel (inch) 7.5
Width of Cross Slide (inch) 4.72
Top Slide Travel (compound) (inch) 3.5
Tailstock Quill Diameter (inch) 1.56
Tailstock Quill Travel (inch) 4.375
Tailstock Quill Taper 3 MT
Longitudinal Feed Range (in/rev) 0.008 – 0.041
Cross Feed Range (in/rev) 0.00026 – 0.0136
Number of Inch Pitches 47
Range of Inch Pitches 4 – 144
Number of Metric Pitches 44
Range of Metric Pitches 0.2 – 14
Number of Diametral Pitches 30
Range of Diametral Pitches 4 – 44
Number of Module Pitches 24
Range of Module Pitches 0.3 – 3.5
Coolant System Yes
Voltage Required (220) 230/460
Phase 3
Machine Foot Print (LxWxH) (inch) 65 x 42 x 62
Machine Weight (lbs.) 1,474
Machine Features:
30” between center distance
D1-4 Camlock spindle nose
2-Speed motor drive inverter controlled for infinitely variable speeds
3 Hp (2.25Kw) spindle motor
13” swing over the bed
Induction hardened and precision ground bed
Headstock gears are precision hardened and ground
Precision tapered roller spindle bearings
Bed wipers and apron mounted one-shot lubrication pump
Universal gearbox provides comprehensive range of metric, imperial (inch), M.P., and D.P. threading
Thread dial indicator
T-slotted top slide
Foot spindle brake
Chip pan and chip guard
Equipped with interlocked chuck guard, full splash guard, and leadscrew cover
4-way tool post
6” 3-jaw chuck
Steady rest w/rollers 0.39” to 2.75” capacity
Micrometer bedstop w/5 position turret positions
Halogen work light
Tool box and manual
CE electrics
A one year warranty backed by Clausing Service Center.
We are dedicated to support our customers with parts and service.
