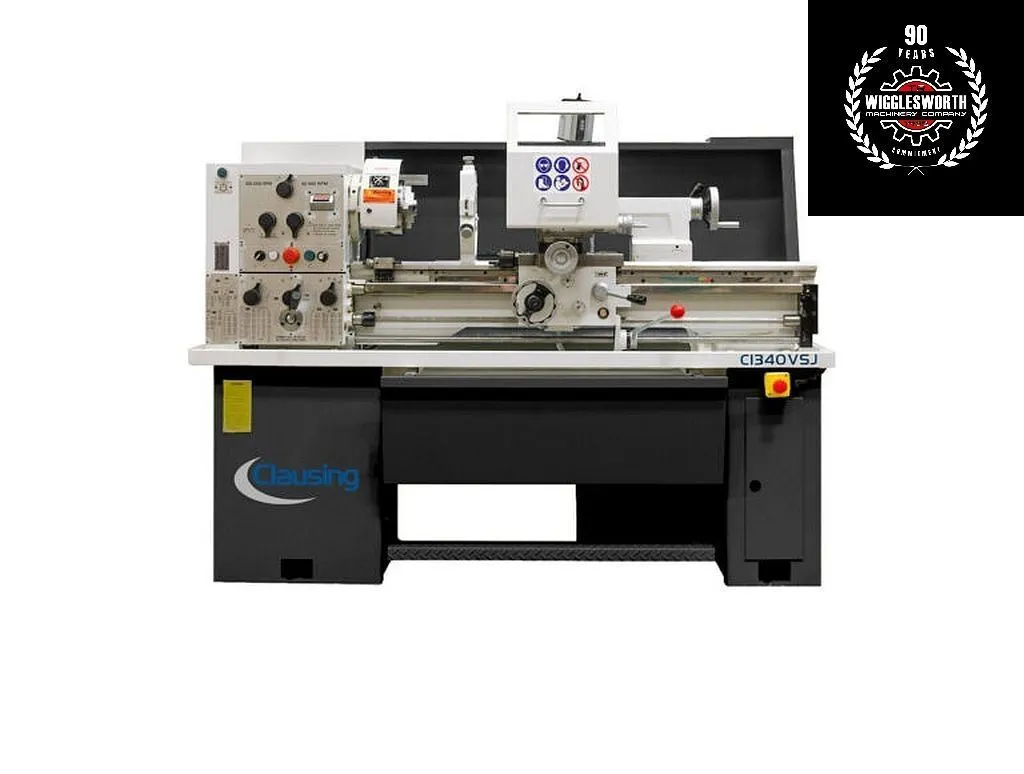

2025 Clausing C1340SVSJ –Variable Speed Lathe with 13” Swing over Bed, Straight Bed Engine Lathe
Have one to sell?
ConditionNew
1 available
New
13” Swing over bed, Variable Speed Straight Bed Engine Lathe, 2 Speed Motor, 3 Hp Spindle motor, 40” between centers, 7.5” Swing over the cross slide, 40 to 2500 RPM, 1.37” Spindle Bore, D1-4 camlock spindle nose, 1.56” Tailstock quill diameter with 3 morse taper bore, Inch/Metric threading with various pitch settings, 230/460 Volts, 3 Phase
Machine Style Engine Lathe
Spindle Speed Control Variable Inverter
Spindle (Hp) 3
Swing Over Bed (inch) 13
Swing Over Cross slide (inch) 7.5
Swing in Gap (inch) –
Distance Between Centers (inch) 40
Bed Width (inch) 7.3
Spindle Bore (inch) 1.375
Spindle Nose (camlock) D1-4
Spindle Nose Taper 3 MT
Number of Spindle Speeds 2
Spindle Speed RPM Range 40 – 2500
Cross Slide Travel (inch) 7.5
Width of Cross Slide (inch) 4.72
Top Slide Travel (compound) (inch) 3.5
Tailstock Quill Diameter (inch) 1.56
Tailstock Quill Travel (inch) 4.375
Tailstock Quill Taper 3 MT
Longitudinal Feed Range (in/rev) 0.008 – 0.041
Cross Feed Range (in/rev) 0.00026 – 0.0136
Number of Inch Pitches 47
Range of Inch Pitches 4 – 144
Number of Metric Pitches 44
Range of Metric Pitches 0.2 – 14
Number of Diametral Pitches 30
Range of Diametral Pitches 4 – 44
Number of Module Pitches 24
Range of Module Pitches 0.3 – 3.5
Coolant System Yes
Voltage Required (220) 230/460
Phase 3
Machine Foot Print (LxWxH) (inch) 76 x 42 x 62
Machine Weight (lbs.) 1,584
