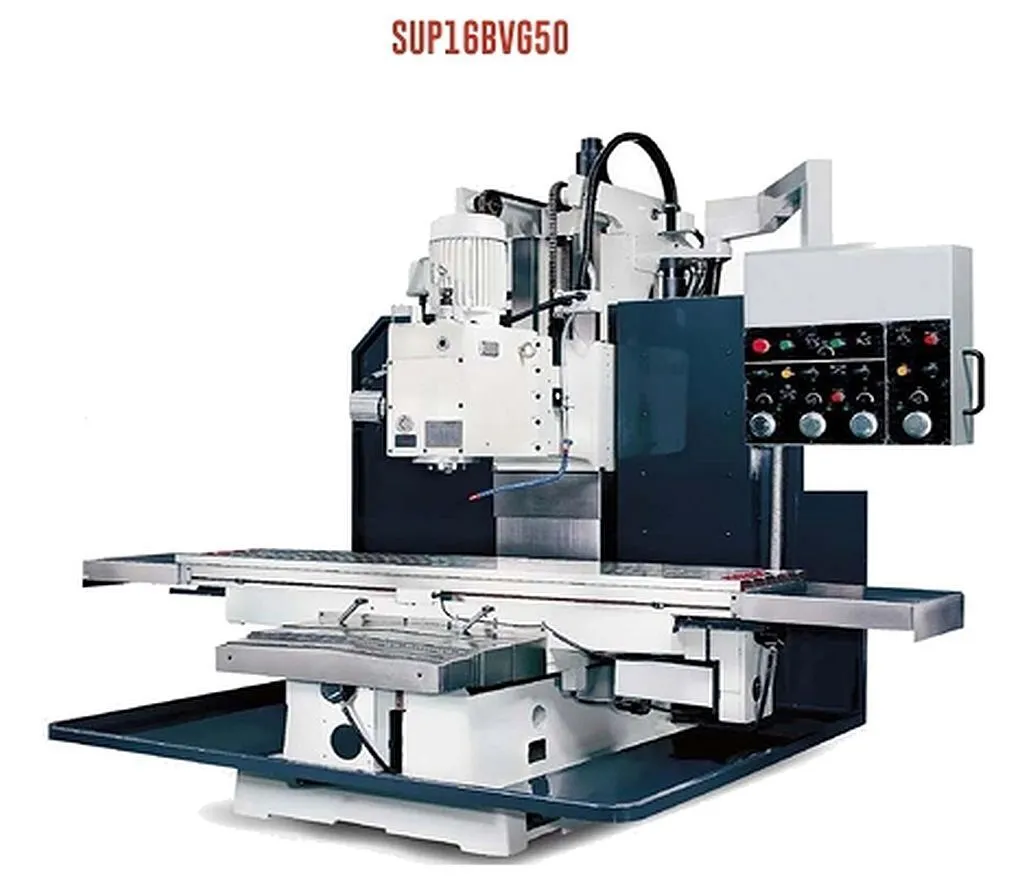

Discover the new Clausing SUP16BVG50 Bed Mill, a powerful 10 HP, 3-axis machine with a massive 86.61" L x 19.69" W table, NT 50 taper, and precise servo-driven axes. Experience smooth, efficient milling with advanced features for optimal performance.
Machine Style..........Super Bed Mill
Spindle Speed Control..........Gearbox
Table Size..........19.69” x 86.61”
Table Load Capacity..........3,300 lbs.
No. of T-slots..........5
T-slot Width..........(.71”)
T-slot Center Distance..........3.35”
Table Ways (X Axis)..........Dovetail
Bed Ways (Y Axis)..........Square
Column Ways (Z Axis)..........Square
Spindle Nose to Table Surface..........2.76 – 30.31”
Longitudinal (X Axis)..........62.99”
Cross (Y Axis)..........27.56”
Vertical (Z Axis)..........27.56”
Feed Rate X, Y, & Z Axes..........0-29.53 (in/min)
Rapid Travers X, Y, & Z Axes..........472 (in/min)
Spindle Motor..........10 Hp
X,Y,Z Motor..........1.3 Hp
Coolant Pump Motor..........1/6 Hp
Spindle Taper..........NT 50
No. of Speed Ranges Geared Head..........6
Low Gear Range..........125-560 rpm
High Gear Range..........370-1100 rpm
Height..........115.35”
Working Width..........162.87”
Depth..........99.61”
Center of Spindle to Column Ways..........27.56”
Net Weight..........9,921 lbs
Gross Weight (approximately)..........12,100 lbs.
Shipping Size (LxWxH)..........105”x92”x101”
Air Pressure..........86 PSI
Total KVA..........15
Machine Features:
Powerful 10 Hp spindle drive motor
Gear Box drive with 6 speed steps with forced lubrication
Hardened and ground spindle with NT 50 taper
High-rigidity spindle complete with cylindrical roller bearing designed for accurate cutting.
C7 double nut X/Y/Z axes 1.5” diameter precision ballscrew
1:2 ratio timing belt boxes on X/Y/Z increases drive torque
X/Y/Z movement by Joy Stick or MPG
X/Y/Z Axes driven by servo motor w/ pendant control box showing individual buttons for each function, allows for easy operator interface
Hardened and ground table surface
Ground T-slots to provide accurate reference edge
Hardened and ground, square Y/Z ways dovetail on X
Turcite B coating on saddle X/YZ axes ways
Meehanite castings for superior rigidity and wear resistance
Steel X/Y/Z axes way covers
Coolant system with pump
Halogen work light
Tools, toolbox and parts
Standard 230 3 Phase (other voltages require a transformer)
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
