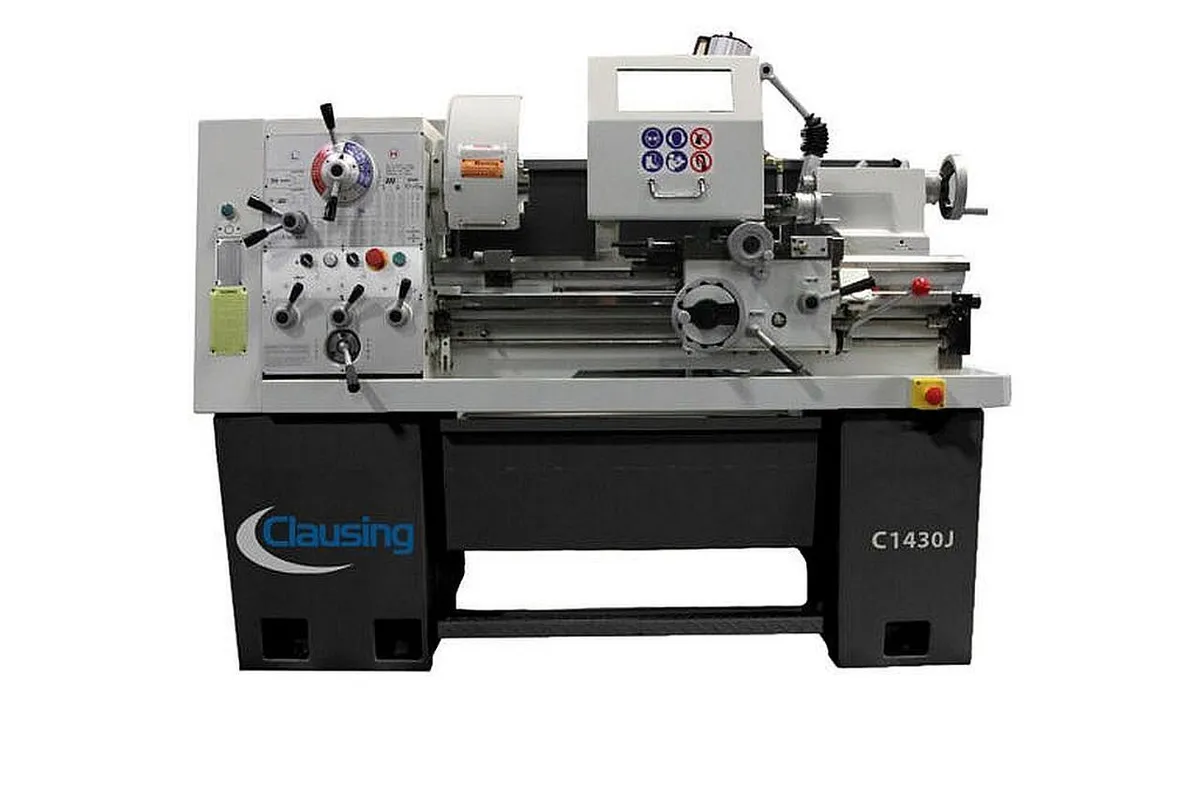

2025 Clausing C1430VSJ –Variable Speed Lathe with 14.25” Swing over Bed, Gap Bed Engine Lathe
Have one to sell?
ConditionNew
1 available
New
14.25” Swing over bed, Variable Speed Gap Bed Engine Lathe, 2 Speed Motor, 3 Hp Spindle motor, 30” between centers, 8.265” Swing over the cross slide, 35 to 2500 RPM, 1.625” Spindle Bore, D1-5 camlock spindle nose, 2” Tailstock quill diameter with 3 morse taper bore, Inch/Metric threading with various pitch settings
Machine Style Engine Lathe
Spindle Speed Control Variable Inverter
Spindle (Hp) 3
Swing Over Bed (inch) 14.25
Swing Over Cross slide (inch) 8.265
Swing in Gap (inch) 22
Distance Between Centers (inch) 30
Bed Width (inch) 10
Spindle Bore (inch) 1.625
Spindle Nose (camlock) D1-5
Spindle Nose Taper 3 MT
Number of Spindle Speeds 2
Spindle Speed RPM Range 35 – 2500
Cross Slide Travel (inch) 7.6
Width of Cross Slide (inch) 5.9
Top Slide Travel (compound) (inch) 4
Tailstock Quill Diameter (inch) 2
Tailstock Quill Travel (inch) 4.75
Tailstock Quill Taper 3 MT
Longitudinal Feed Range (in/rev) 0.0012 – 0.016
Cross Feed Range (in/rev) 0.0004 – 0.0053
Number of Inch Pitches 36
Range of Inch Pitches (TPI) 4 – 72
Number of Metric Pitches 27
Range of Metric Pitches (mm) 0.4 – 7
Number of Diametral Pitches 21
Range of Diametral Pitches 8 – 44
Number of Module Pitches 18
Range of Module Pitches (mm) 0.3 – 3.5
Coolant System Yes
Voltage Required (220) 230/460
Phase 3
Machine Footprint (LxWxH) (inch) 63 x 35 x 50
Machine Weight (lbs.) 1,870
Machine Features:
30” between center distance
D1-5 Camlock spindle nose
2-Speed motor drive inverter controlled for infinitely variable speeds from 35-25000 rpm
3 Hp (2.25Kw) spindle motor
14” swing over the bed
Induction hardened and precision ground bed
Headstock gears are precision hardened and ground
Precision tapered roller spindle bearings
Bed wipers and apron mounted one-shot lubrication pump
Universal gearbox provides comprehensive range of metric, imperial (inch), M.P., and D.P. threading
Thread dial indicator
T-slotted top slide
Foot spindle brake
Chip pan and chip guard
Equipped with interlocked chuck guard, full splash guard, and leadscrew cover
4-way tool post
7” 3-jaw chuck
Steady rest w/rollers 0.39” to 4.9” capacity
Micrometer bedstop w/5 position turret positions
Halogen work light
Tool box and manual
CE electrics
A one year warranty backed by Clausing Service Center.
We are dedicated to support our customers with parts and service.
