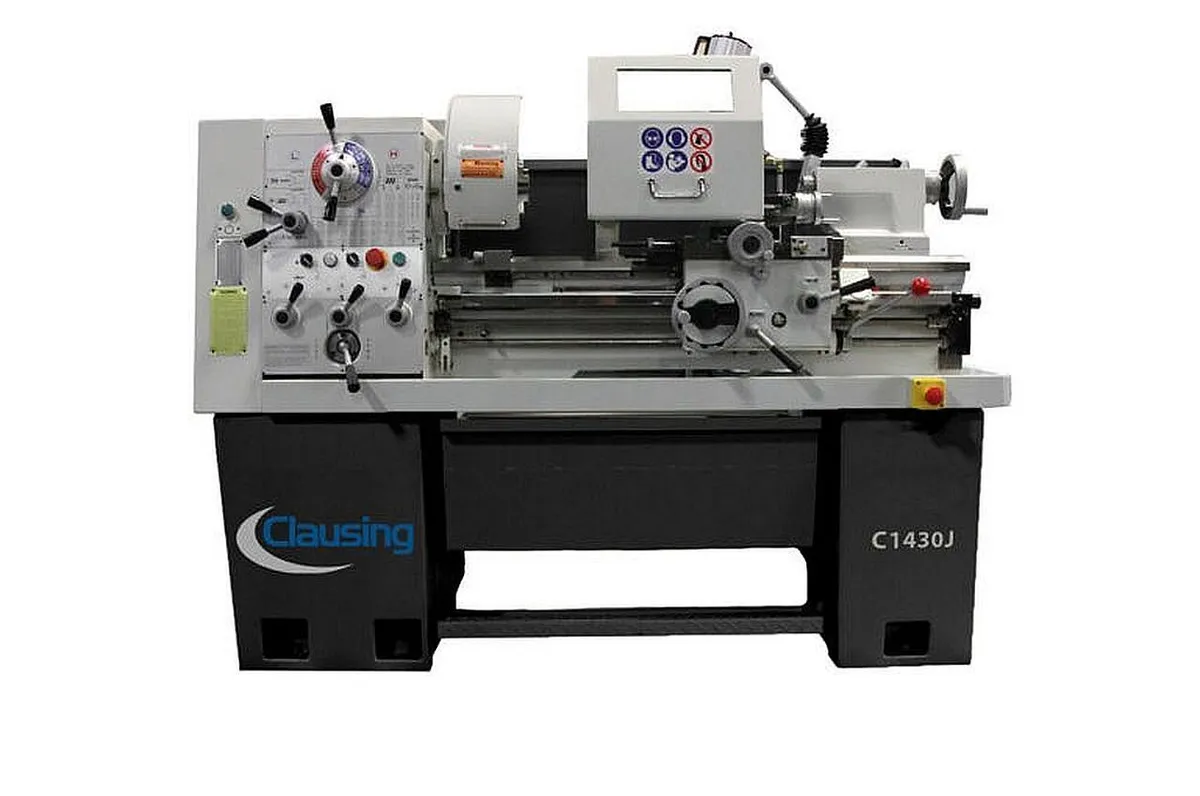

New 2025 Clausing C1430SVSJ Variable Speed Lathe with 14.25” Swing over Bed, Straight Bed Engine Lathe

Machine Style..........Engine Lathe
Spindle Speed Control..........Variable Inverter
Spindle (Hp)..........3
Swing Over Bed (inch)..........14.25
Swing Over Cross slide (inch)..........8.265
Swing in Gap (inch) –
Distance Between Centers (inch)..........30
Bed Width (inch)..........10
Spindle Bore (inch)..........1.625
Spindle Nose (camlock)..........D1-5
Spindle Nose Taper..........3 MT
Number of Spindle Speeds..........2
Spindle Speed RPM Range..........35 – 2500
Cross Slide Travel (inch)..........7.6
Width of Cross Slide (inch)..........5.9
Top Slide Travel (compound) (inch)..........4
Tailstock Quill Diameter (inch)..........2
Tailstock Quill Travel (inch)..........4.75
Tailstock Quill Taper..........3 MT
Longitudinal Feed Range (in/rev)..........0.0012 – 0.016
Cross Feed Range (in/rev)..........0.0004 – 0.0053
Number of Inch Pitches..........36
Range of Inch Pitches (TPI)..........4 – 72
Number of Metric Pitches..........27
Range of Metric Pitches (mm)..........0.4 – 7
Number of Diametral Pitches..........21
Range of Diametral Pitches..........8 – 44
Number of Module Pitches..........18
Range of Module Pitches (mm)..........0.3 – 3.5
Coolant System..........Yes
Voltage Required..........(220) 230/460
Phase..........3
Machine Foot Print (LxWxH) (inch)..........63 x 35 x 50
Machine Weight (lbs.)..........1,870

Machine Features:
• 30” between center distance
• D1-5 Camlock spindle nose
• 2-Speed motor drive inverter controlled for infinitely variable speeds from 35-25000 rpm
• 3 Hp (2.25Kw) spindle motor
• 14” swing over the bed
• Induction hardened and precision ground bed
• Headstock gears are precision hardened and ground
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted one-shot lubrication pump
• Universal gearbox provides comprehensive range of metric, imperial (inch), M.P., and D.P. threading
• Thread dial indicator
• T-slotted top slide
• Foot spindle brake
• Chip pan and chip guard
• Equipped with interlocked chuck guard, full splash guard, and leadscrew cover
• 4-way tool post
• 7” 3-jaw chuck
• Steady rest w/rollers 0.39” to 4.9” capacity
• Micrometer bedstop w/5 position turret positions
• Halogen work light
• Tool box and manual
• CE electrics
• A one year warranty backed by Clausing Service Center.
• We are dedicated to support our customers with parts and service.
