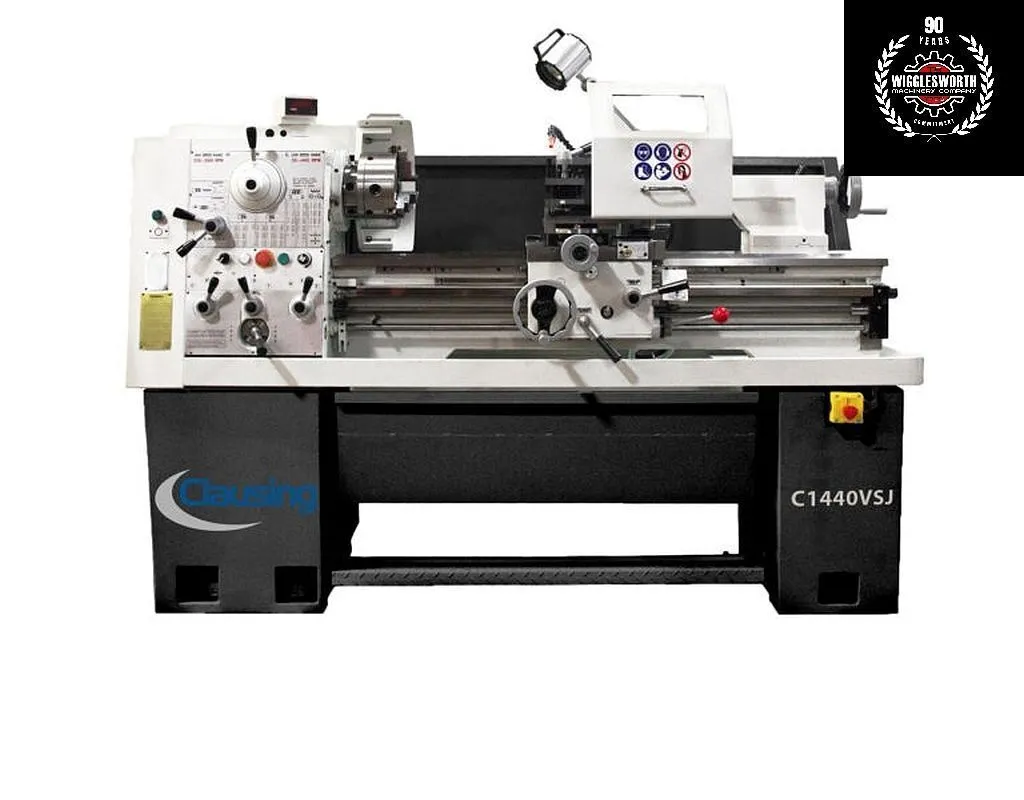

14.25” Swing over bed, Variable Speed Gap Bed Engine Lathe, 2 Speed Motor, 3 Hp Spindle motor, 40” between centers, 8.265” Swing over the cross slide, 35 to 2500 RPM, 1.625” Spindle Bore, D1-5 camlock spindle nose, 2” Tailstock quill diameter with 3 morse taper bore, Inch/Metric threading with various pitch settings
Machine Style Engine Lathe
Spindle Speed Control Variable Inverter
Spindle (Hp) 3
Swing Over Bed (inch) 14.25
Swing Over Cross slide (inch) 8.265
Swing in Gap (inch) 22
Distance Between Centers (inch) 40
Bed Width (inch) 10
Spindle Bore (inch) 1.625
Spindle Nose (camlock) D1-5
Spindle Nose Taper 3 MT
Number of Spindle Speeds 2
Spindle Speed RPM Range 35 – 2500
Cross Slide Travel (inch) 7.6
Width of Cross Slide (inch) 5.9
Top Slide Travel (compound) (inch) 4
Tailstock Quill Diameter (inch) 2
Tailstock Quill Travel (inch) 4.75
Tailstock Quill Taper 3 MT
Longitudinal Feed Range (in/rev) 0.0012 – 0.016
Cross Feed Range (in/rev) 0.0004 – 0.0053
Number of Inch Pitches 36
Range of Inch Pitches (TPI) 4 – 72
Number of Metric Pitches 27
Range of Metric Pitches (mm) 0.4 – 7
Number of Diametral Pitches 21
Range of Diametral Pitches 8 – 44
Number of Module Pitches 18
Range of Module Pitches (mm) 0.3 – 3.5
Coolant System Yes
Voltage Required (220) 230/460
Phase 3
Machine Foot Print (LxWxH) (inch) 63 x 35 x 50
Machine Weight (lbs.) 1,870
