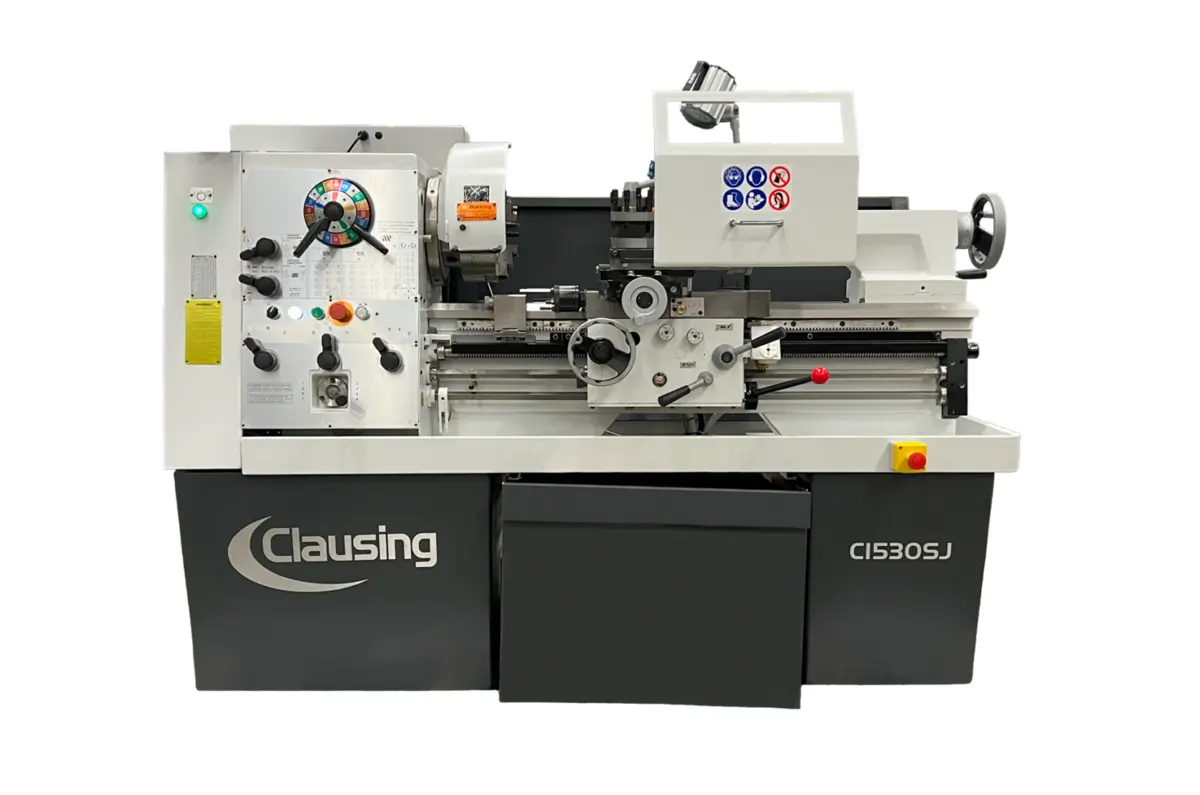

2025 Clausing C1530FSVSJ – Variable Speed Lathe with 15.25″ Swing over Bed, Straight Bed Engine Lathe w/ Foot Brake
Have one to sell?
ConditionNew
1 available
New
15.25” Swing over bed, Variable Speed Straight Bed Engine Lathe, 10 Hp Spindle motor, 30” between centers, 9.5” Swing over the cross slide, 18 to 2500 RPM, 3 Speed, 2.125” Spindle Bore, D1-6 camlock spindle nose, 2.312” Tailstock quill diameter with 4 morse taper bore, Inch/Metric threading with various pitch settings
Machine Style Engine Lathe
Spindle Speed Control Variable Inverter
Spindle (Hp) 10
Swing Over Bed (inch) 15.25
Swing Over Cross slide (inch) 9.5
Swing in Gap (inch) –
Distance Between Centers (inch) 30
Bed Width (inch) 11
Spindle Bore (inch) 2.125
Spindle Nose (camlock) D1-6
Spindle Nose Taper 6 MT
Number of Spindle Speeds 3
Spindle Speed RPM Range 18 – 2500
Cross Slide Travel (inch) 9
Width of Cross Slide (inch) 6.47
Top Slide Travel (compound) (inch) 4.75
Tailstock Quill Diameter (inch) 2.312
Tailstock Quill Travel (inch) 6.125
Tailstock Quill Taper 4 MT
Longitudinal Feed Range (in/rev) 0.0015 – 0.04
Cross Feed Range (in/rev) 0.0008 – 0.02
Number of Inch Pitches 45
Range of Inch Pitches 2 – 72
Number of Metric Pitches 39
Range of Metric Pitches 0.2 – 14
Number of Diametral Pitches 21
Range of Diametral Pitches 8 – 44
Number of Module Pitches 18
Range of Module Pitches 0.3 – 3.5
Coolant System Yes
Voltage Required 230/460
Phase 3
Machine Footprint (LxWxH) (inch) 77 x 40 x 50
Machine Weight (lbs.) 2,200
Machine Features:
30” between center distance
D1-6 Camlock spindle nose
16-Step spindle speed with soft start control
10 Hp (7.46 Kw) spindle motor
15.25” swing over the bed
Induction hardened and precision ground bed
Headstock gears are precision hardened and ground
Precision tapered roller spindle bearings
Bed wipers and apron mounted one-shot lubrication pump
Universal gearbox provides comprehensive range of metric, imperial (inch), M.P., and D.P. threading
Thread dial indicator
T-slotted top slide
Magnetic braking system with foot brake (no rollout chip pan)
Equipped with interlocked chuck guard, full splash guard, and leadscrew cover
4-way tool post
10” 3-jaw chuck
LED worklight
Steady rest w/rollers 0.39” to 3.93” capacity
Micrometer bedstop w/5 position turret positions
Tool box and manual
CE electrics
A one-year warranty backed by Clausing Service Center.
We are dedicated to support our customers with parts and service.
