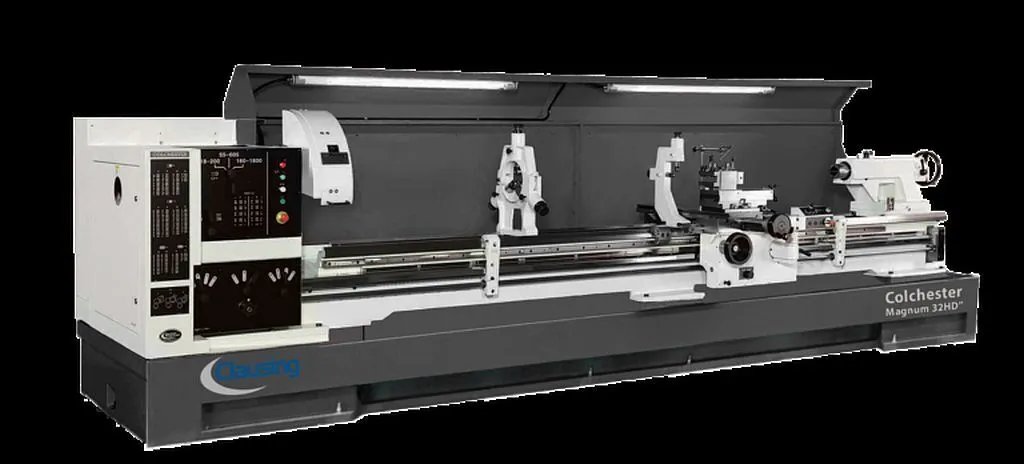

Discover the new 2025 Clausing/Colchester 8316VSJHD lathe with 31.49" swing over bed, 40hp power, and variable speeds. Perfect precision with 80" center distance, 6.1" spindle bore, and a robust design for heavy-duty tasks. Ideal for advanced machining.
Machine Style..... Engine Lathe
Spindle Speed Control.....Variable Speed
Spindle (Hp)..... 40 (30kw)
Swing Over Bed (inch)..... 31.49
Swing Over Cross slide (inch)..... 20.07
Swing in Gap (inch)..... 43.3
Distance Between Centers (inch)..... 80
Bed Width (inch)....... 22 (3V)
Spindle Bore (inch).... 6.1
Spindle Bore (option #1)(inch)..... 9.8
Spindle Bore (option #2) (inch).....12
Spindle Nose (camlock)..... A2-11
Spindle Nose (option #1)..... A2-15
Spindle Nose (option #2)..... A2-20
Spindle Nose Taper..... 7MT
Spindle Nose Taper (option #1)..... N/A
Spindle Nose Taper (option #2)..... N/A
Number of Spindle Speeds..... 4 infinitely variable
Spindle Speed RPM Range..... 6-800
Spindle Speed RPM Range (option #1)..... 4-600
Spindle Speed RPM Range (option#2)..... 4-400
Cross Slide Travel (inch)..... 19.68
Width of Cross Slide (inch)..... N/A
Top Slide Travel (compound) (inch)..... 6.5
Tailstock Quill Diameter (inch)..... 4.92
Tailstock Quill Travel (inch)..... 10.80
Tailstock Quill Taper..... 6MT
Longitudinal Feed Range (in/rev)..... 0.002 – 0.125
Cross Feed Range (in/rev)..... 0.001 – 0.062
Number of Inch Pitches..... 51
Range of Inch Pitches...... 2 – 84
Number of Metric Pitches..... 59
Range of Metric Pitches..... 0.2 – 14
Number of Diametral Pitches..... 27
Range of Diametral Pitches..... 8 – 72
Number of Module Pitches..... 20
Range of Module Pitches..... 0.2 – 3.5
Coolant System..... Yes
Voltage Required...... 230/460
Phase..... 3
Machine Footprint(LxWxH) (inch)..... 193 x 82.7 x 74.8
Machine Weight (lbs.)...... 17,050
Discover the new 2025 Clausing/Colchester 8316VSJHD lathe with 31.49" swing over bed, 40hp power, and variable speeds. Perfect precision with 80" center distance, 6.1" spindle bore, and a robust design for heavy-duty tasks. Ideal for advanced machining.
T.R. Wigglesworth Machinery Company has represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing/Colchester Magnum Large Capacity Infinitely variable speed manual lathes are the industry standard for lathes. The quality built into every machine translates into real long-term performance for your application. The removable gap plate allows for large face plates to be mounted onto the spindle nose for various turning applications. Rugged construction, consistent quality in design and production, along with human engineering makes the operator more efficient, making this lathe a cost-effective investment. You will get unbelievable machine performance and operational longevity with the Clausing/Colchester Geared Head Lathes. Optional spindle bore sizes make these machines a best fit for large turning applications.
These Variable Speed lathes use a State-of-Art AC Spindle Drive to control the motor. A belt drive system from the motor to gearbox head. Speed changes are then selected by shifting gear levers into one (1) of four (4) locations then adjusting a pot control knob to adjust the speed output.
Imperial
| Swing | 31.49" |
| Centers | 80" |
| Spindle Bore | 6.1" |
| Power | 40 hp |
| RPM | 800 RPM |
| Swing Over Cross Slide | 20.07" |
| Dimensions | 193 x 82.7 x 74.8 |
| Weight | 17050 |
Machine Style..... Engine Lathe
Spindle Speed Control.....Variable Speed
Spindle (Hp)..... 40 (30kw)
Swing Over Bed (inch)..... 31.49
Swing Over Cross slide (inch)..... 20.07
Swing in Gap (inch)..... 43.3
Distance Between Centers (inch)..... 80
Bed Width (inch)....... 22 (3V)
Spindle Bore (inch).... 6.1
Spindle Bore (option #1)(inch)..... 9.8
Spindle Bore (option #2) (inch).....12
Spindle Nose (camlock)..... A2-11
Spindle Nose (option #1)..... A2-15
Spindle Nose (option #2)..... A2-20
Spindle Nose Taper..... 7MT
Spindle Nose Taper (option #1)..... N/A
Spindle Nose Taper (option #2)..... N/A
Number of Spindle Speeds..... 4 infinitely variable
Spindle Speed RPM Range..... 6-800
Spindle Speed RPM Range (option #1)..... 4-600
Spindle Speed RPM Range (option#2)..... 4-400
Cross Slide Travel (inch)..... 19.68
Width of Cross Slide (inch)..... N/A
Top Slide Travel (compound) (inch)..... 6.5
Tailstock Quill Diameter (inch)..... 4.92
Tailstock Quill Travel (inch)..... 10.80
Tailstock Quill Taper..... 6MT
Longitudinal Feed Range (in/rev)..... 0.002 – 0.125
Cross Feed Range (in/rev)..... 0.001 – 0.062
Number of Inch Pitches..... 51
Range of Inch Pitches...... 2 – 84
Number of Metric Pitches..... 59
Range of Metric Pitches..... 0.2 – 14
Number of Diametral Pitches..... 27
Range of Diametral Pitches..... 8 – 72
Number of Module Pitches..... 20
Range of Module Pitches..... 0.2 – 3.5
Coolant System..... Yes
Voltage Required...... 230/460
Phase..... 3
Machine Footprint(LxWxH) (inch)..... 193 x 82.7 x 74.8
Machine Weight (lbs.)...... 17,050
