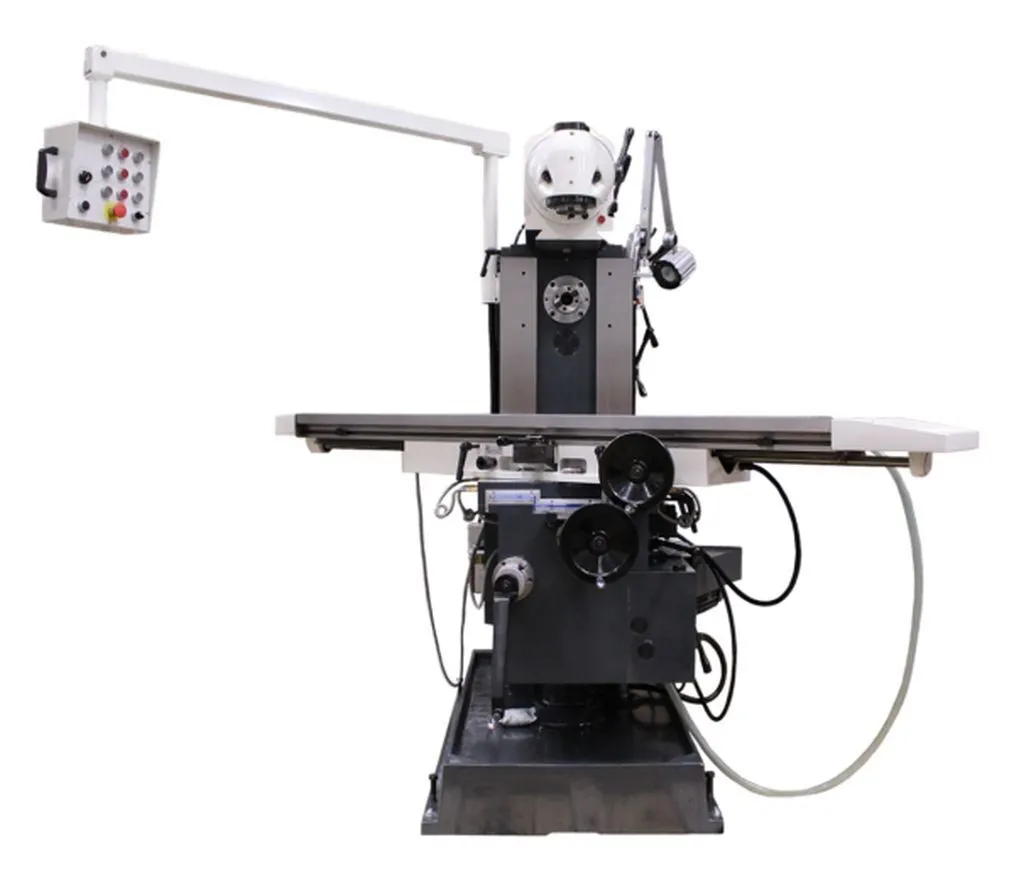

Clausing 2HM Universal Mill

Machine Style..........Universal Mill
Table area..........41.5” x 9.44” (1055x240mm)
Total load capacity..........950 lbs.
Table Swivel L/R..........45 deg
No. of T-slots..........3
T-slot size..........(.629”)
X Automatic Longitude..........22”
Y Automatic Cross..........10.23”
Z Automatic Knee..........16.5”
Spindle center to table..........0 – 12.6”
Distance from spindle to overarm..........4.72”
Spindle taper..........ISO-40
Diameter of the main Shaft Nose..........3.5”-5.06”
Milling arbor..........1”
Number spindle speeds..........6
Spindle speed range..........81-1470rpm
Spindle motor..........HP 3
Longitudinal Feeds (6 step)..........0.82”- 49.68”/min
Feed motor HP..........1
Longitudinal Rapid Feed..........81 in/min
Cooling Pump..........1/8 Hp
Net weight..........2,420 lbs.
Shipping weight..........2,750 lbs.
Shipping dimensions..........53.7” x 46.5” x 68.5”

Machine Features:
3 Hp Horizontal Head
Vertical Head Attachment
All gears and shafts are hardened and ground
Large 41.5” x 9.44” (1055 x 240mm) 3 T-slots
Knee mounted control panel
X-Axis feed by gearbox 1 Hp motor
Coolant system
Turcite B coated Z axis for wear resistance
Horizontal manual drawbar
Halogen worklight
1” arbor and sleeve
Tool box and service tools
CE Electrics for reliability
Standard 230 or 460 3 Phase (other voltages require a transformer or special order)
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
