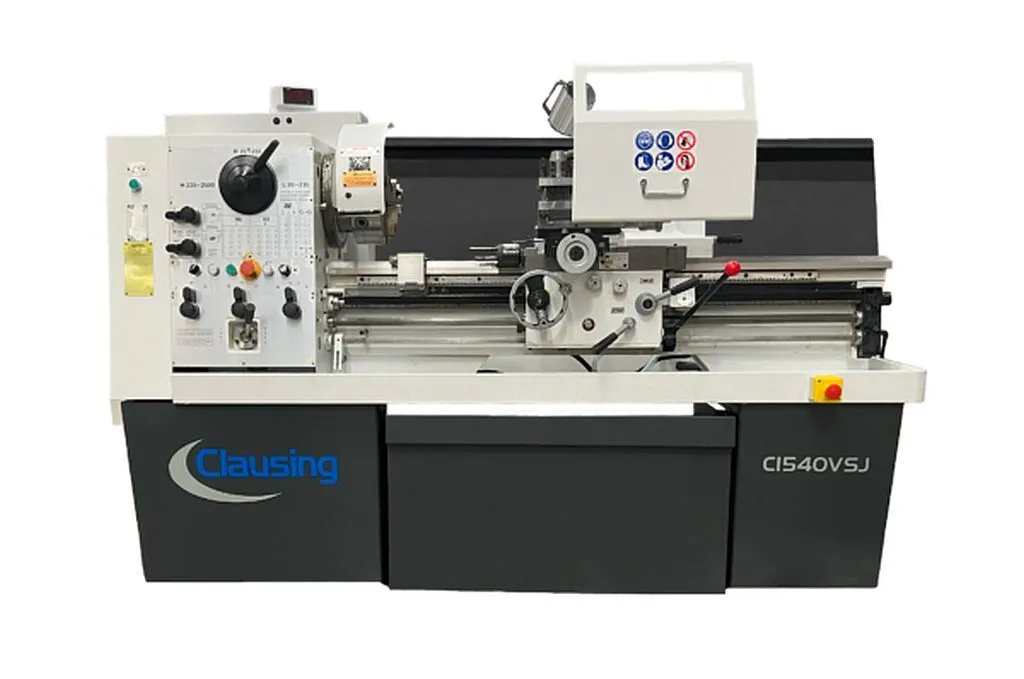

New 2025 Clausing C1540SVSJ –Variable Speed Lathe with 15.25” Swing over Bed, Straight Bed Engine Lathe

Specifications:
Machine Style.......... Engine Lathe
Spindle Speed Control.......... Variable Inverter
Spindle (Hp).......... 10
Swing Over Bed (inch).......... 15.25
Swing Over Cross slide (inch).......... 9.5
Swing in Gap (inch) -
Distance Between Centers (inch).......... 40
Bed Width (inch).......... 11
Spindle Bore (inch).......... 2.125
Spindle Nose (camlock).......... D1-6
Spindle Nose Taper.......... 6 MT
Number of Spindle Speeds.......... 3
Spindle Speed RPM Range .......... 18 – 2500
Cross Slide Travel (inch).......... 9
Width of Cross Slide (inch).......... 6.47
Top Slide Travel (compound) (inch).......... 4.75
Tailstock Quill Diameter (inch).......... 2.312
Tailstock Quill Travel (inch).......... 6.125
Tailstock Quill Taper.......... 4 MT
Longitudinal Feed Range (in/rev).......... (0.0015 – 0.04)
Cross Feed Range (in/rev).......... (0.0008 – 0.02)
Number of Inch Pitches.......... 45
Range of Inch Pitches.......... 2 – 72
Number of Metric Pitches.......... 39
Range of Metric Pitches.......... (0.2 – 14)
Number of Diametral Pitches.......... 21
Range of Diametral Pitches.......... 8 – 44
Number of Module Pitches.......... 18
Range of Module Pitches.......... 0.3 – 3.5
Coolant System.......... Yes
Voltage Required.......... 230/460
Phase.......... 3
Machine Footprint (LxWxH) (inch).......... 87 x 40 x 50
Machine Weight (lbs.).......... 2,530

Machine Features:
• 40” between center distance
• D1-6 Camlock spindle nose
• 16-Step spindle speed from 25 – 2000 rpm with soft start control
• 7.5 Hp (5.5Kw) spindle motor
• 15.25” swing over the bed
• Induction hardened and precision ground bed
• Headstock gears are precision hardened and ground
• Precision tapered roller spindle bearings
• Bed wipers and apron mounted one-shot lubrication pump
• Universal gearbox provides comprehensive range of metric, imperial (inch), M.P., and D.P. threading
• Thread dial indicator
• T-slotted top slide
• Magnetic braking system with foot brake (no rollout chip pan)
• Equipped with interlocked chuck guard, full splash guard, and leadscrew cover
• 4-way tool post
• 10” 3-jaw chuck
• LED worklight
• Steady rest w/rollers 0.39” to 3.93” capacity
• Micrometer bedstop w/5 position turret positions
• Tool box and manual
• CE electrics
• A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
