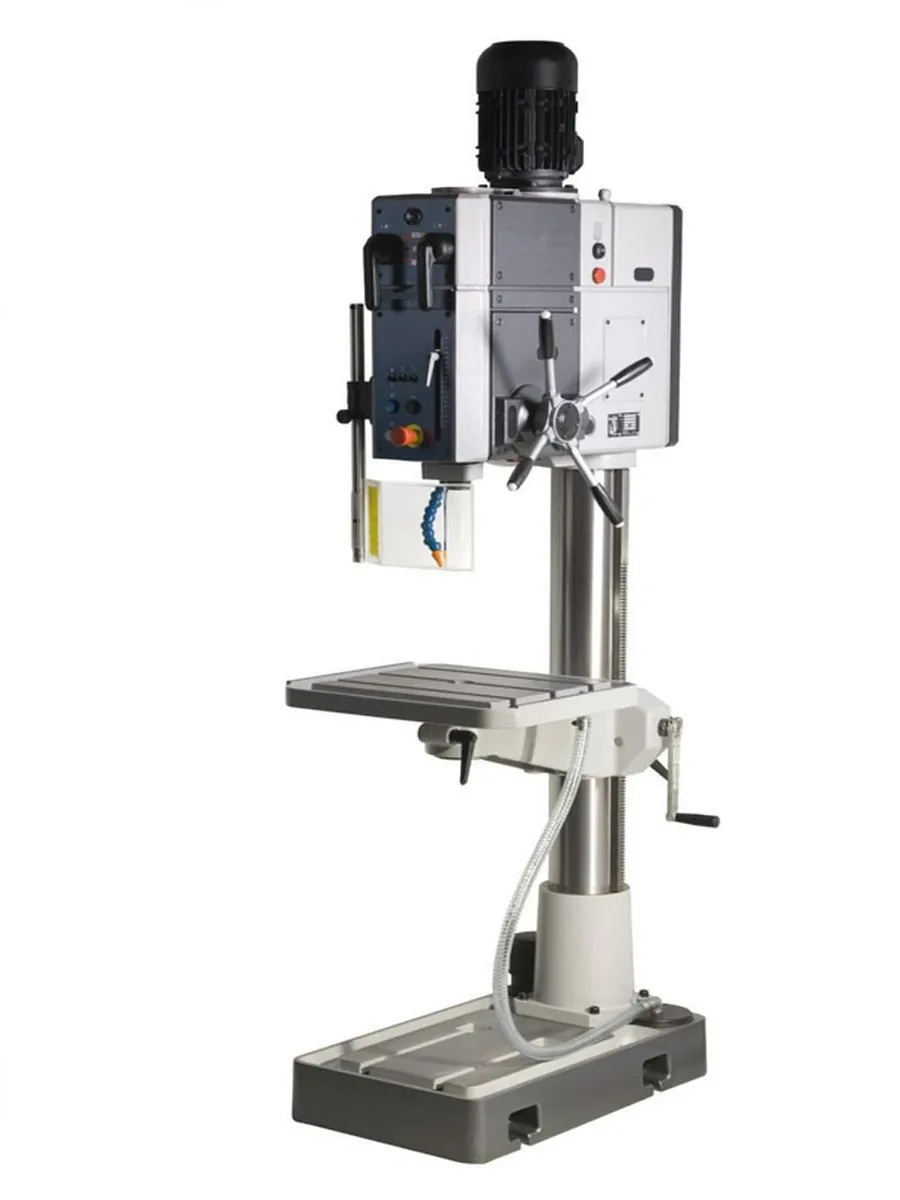

Clausing Iberdrill 27.56” Floor Drill Press Gear Head Drive, Adjustable Work Table and Base, 158 – 2222 RPM by 9 speed gear box, 2.95” diameter quill, 4MT taper spindle, electromagnetic clutch quill feed, 3 hp spindle motor, 1.57” drill capacity steel, 230/460 volt 3 Phase voltage
Machine Style Floor Drill W/Adjustable Table
Drive Type Gear Head Drive
Number of Speed Steps 9
Spindle Speeds (RPM) 158 – 233 – 332 – 383 – 559 – 799 – 1060 – 1555 – 2222
Column to Spindle Center (in) 13.78
Spindle Nose 4MT
Spindle Travel (in) 7.09
Quill Feed Electromagnetic Clutch
3 Feed Range (in/rev) 0.0039, 0.0079, 0.0118
Spindle to Work Surface Min/Max. (in) 1.97 / 27.2
Column Diameter (in) 5.91
Adjustable Table Surface (in) 18.9 x 22.05
Work Table T-Slots (in) 1/2
Base Size (in) 31.5 x 18.8
Drill Capacity with Manual Feed (in) 1.57
E-Stop Switch Yes
Voltage 230 or 460
Phase Three
Motor Horsepower 2
Machine Weight (lbs.) 1,081
Machine Dimensions (WxDxH in) 20 x 38 x 76.8
Shipping Weight (lbs.) 1,190
Shipping Dimensions ships laying down (LxWxD in) 92 x 24 x 43.3
