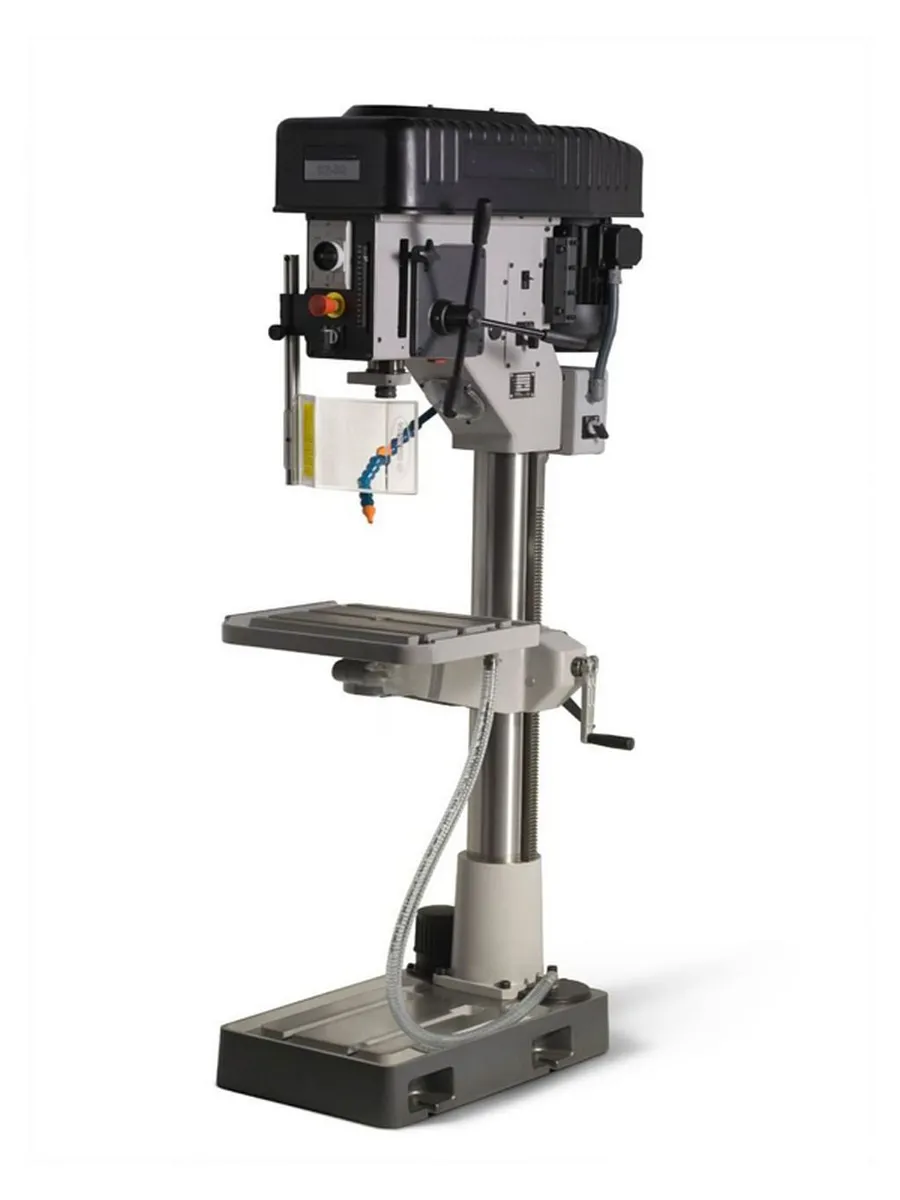

Clausing Iberdrill 23.62” Floor Drill Press Step Pulley Belt Drive Adjustable Work Table and Base, 170 – 2070 RPM 5 step pulley, 2.44” diameter quill, 3MT taper spindle, manual quill feed, 1.8 hp 2 speed spindle motor, 1.26” drill capacity steel, 230/460 volt 3 Phase voltage
Machine Style........... Floor Drill W/Adjustable Table
Drive Type........... Step Pulley Belt Drive
Number of Speed Steps........... 10
Spindle Speeds (RPM)........... 170, 265, 340, 415, 530, 650, 1035, 830, 1300, 2070
Column to Spindle Center (in)........... 11.81
Spindle Nose........... 3MT
Spindle Travel (in)........... 5.91
Quill Feed........... Manual
2 Feed Range (in/rev)........... N/A
Spindle to Work Surface Min/Max. (in)........... 4.13 / 50.59
Column Diameter (in)........... 4.92
Adjustable Table Surface (in)........... 15.75 x 18.9
Work Table T-Slots (in)........... 1/2
Base Size (in)........... 26.8 x 16.5
Drill Capacity with Manual Feed (in)........... 1.26
E-Stop Switch........... Yes
Voltage........... 230 or 460
Phase........... Three
Motor Horsepower........... 1.8
Machine Weight (lbs.)........... 573
Machine Dimensions (WxDxH in)........... 20 x 32 x 76.8
Shipping Weight (lbs.)........... 683
Shipping Dimensions ships laying down (LxWxD in)........... 91 x 24 x 43.3
Clausing Iberdrill 23.62” Floor Drill Press Step Pulley Belt Drive Adjustable Work Table and Base, 170 – 2070 RPM 5 step pulley, 2.44” diameter quill, 3MT taper spindle, manual quill feed, 1.8 hp 2 speed spindle motor, 1.26” drill capacity steel, 230/460 volt 3 Phase voltage
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing IberDrill Belt Drive Drill Press with state-of-the-art technology, allows you to select the best rpm for the tool with quick acting step pulley adjustment lever. Step pulley speeds combined with 2 speed spindle motor give 170 – 2070 rpm for drilling large holes, small holes to spot-face, counter-bore and ream. The drive belt system delivers excellent torque for capacity production rated 1.26” in steel 1.38” in cast iron, Adding to the end of the model number “RS” adds the automatic tapping feature to this drill press. By setting a limit stop once the quill reaches this the spindle will automatically reverse. 230 or 460 volt 3 phase voltage.
Imperial
| Swing | 23.62" |
| Capacity (Mild Steel) | 1.26" |
| Capacity (Cast Iron) | 1.38" |
| Power | 1.8 hp |
| RPM | 2,070 RPM |
| Dimensions | 20 x 32 x 76.8 |
| Weight | 573 lbs. |
Machine Style........... Floor Drill W/Adjustable Table
Drive Type........... Step Pulley Belt Drive
Number of Speed Steps........... 10
Spindle Speeds (RPM)........... 170, 265, 340, 415, 530, 650, 1035, 830, 1300, 2070
Column to Spindle Center (in)........... 11.81
Spindle Nose........... 3MT
Spindle Travel (in)........... 5.91
Quill Feed........... Manual
2 Feed Range (in/rev)........... N/A
Spindle to Work Surface Min/Max. (in)........... 4.13 / 50.59
Column Diameter (in)........... 4.92
Adjustable Table Surface (in)........... 15.75 x 18.9
Work Table T-Slots (in)........... 1/2
Base Size (in)........... 26.8 x 16.5
Drill Capacity with Manual Feed (in)........... 1.26
E-Stop Switch........... Yes
Voltage........... 230 or 460
Phase........... Three
Motor Horsepower........... 1.8
Machine Weight (lbs.)........... 573
Machine Dimensions (WxDxH in)........... 20 x 32 x 76.8
Shipping Weight (lbs.)........... 683
Shipping Dimensions ships laying down (LxWxD in)........... 91 x 24 x 43.3
