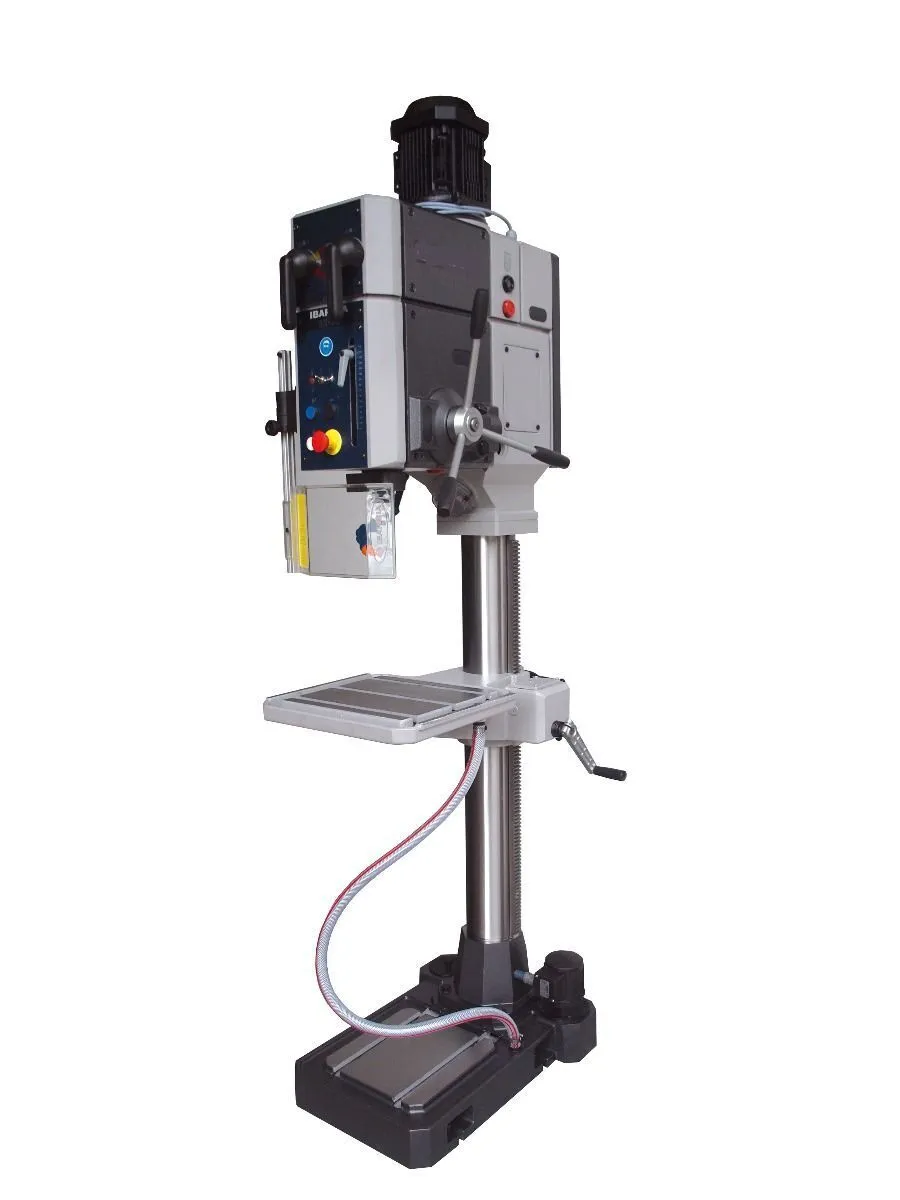

New 2025 Clausing Ibarmia Iberdrill AX32 23.62” Floor Drill Press Gear Head Drive, Adjustable Worktable and Base

Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Gear Head Drive
Number of Speed Steps.......... 9
Spindle Speeds (RPM).......... 123 – 180 – 257 – 295 – 432 – 617 – 820 – 1200 – 1714
Column to Spindle Center (in).......... 11.81
Spindle Nose.......... 4MT
Spindle Travel (in).......... 5.91
Quill Feed.......... Mechanical Clutch
2 Feed Ranges (in/rev).......... 0.0039, 0.0079
Spindle to Work Surface Min/Max. (in).......... 5.71 / 31.89
Column Diameter (in).......... 4.92
Adjustable Table Surface (in).......... 15.75 x 18.9
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 26.8 x 16.5
Drill Capacity with Manual Feed (in).......... 1.26
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 1.5
Machine Weight (lbs.).......... 694
Machine Dimensions (WxDxH in).......... 20 x 38 x 76.8
Shipping Weight (lbs.).......... 794
Shipping Dimensions ships laying down (LxWxD in).......... 90 x 24 x 43.3

Machine Features:
• Gear head drive with shift levers on the face of the drill
• Gear box lubrication by automatic pump
• Hardened and Ground high quality steel gears
• 1.5 Hp spindle motor
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Mechanical clutch quill feed system
• Adjustable work table
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
