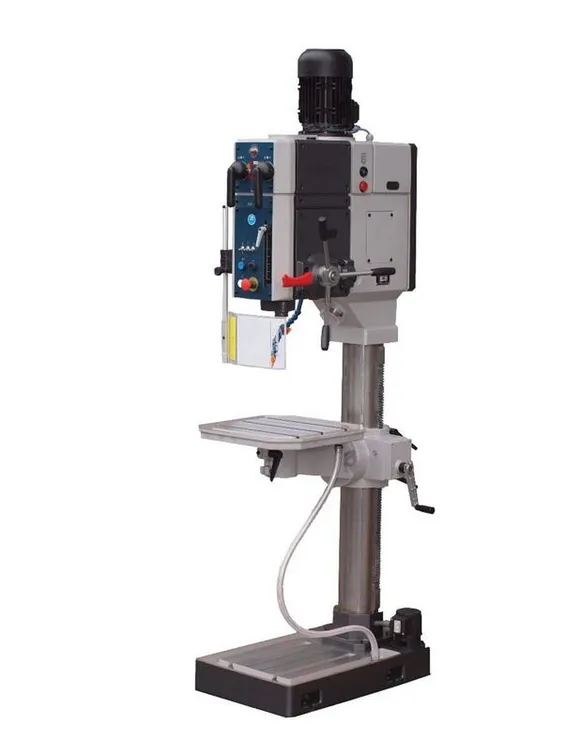

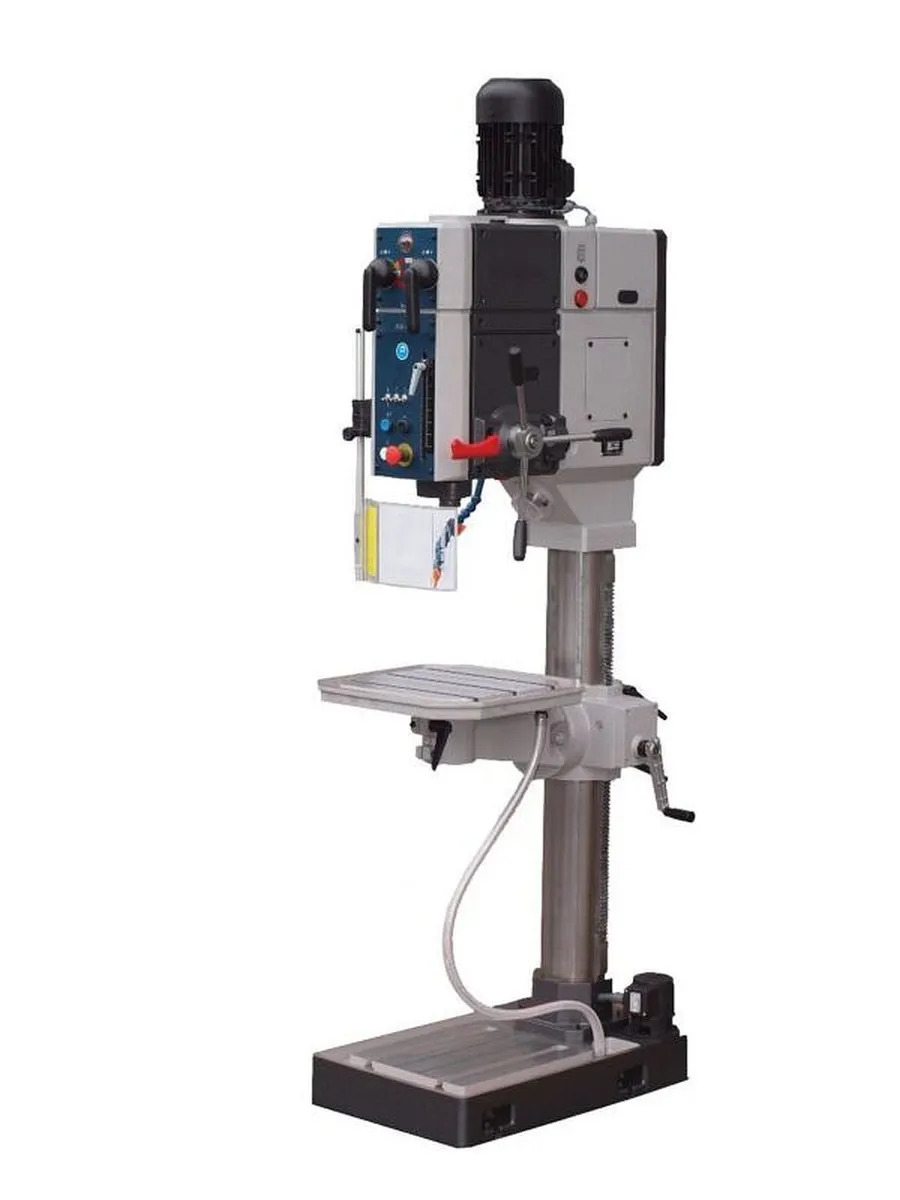

Clausing Iberdrill 27.56” Floor Drill Press Gear Head Drive, Adjustable Work Table and Base, 158 – 2222 RPM by 9 speed gear box, 2.95” diameter quill, 4MT taper spindle, mechanical clutch quill feed, 3 hp spindle motor, 1.57” drill capacity steel, 230/460 volt 3 Phase voltage
Machine Style..........	Floor Drill W/Adjustable Table
Drive Type..........	Gear Head Drive
Number of Speed Steps..........	9
Spindle Speeds (RPM)..........	158 – 233 – 332 – 383 – 559 – 799
                                                         – 1060 – 1555 – 2222
Column to Spindle Center (in)..........	13.78
Spindle Nose..........	4MT
Spindle Travel (in)..........	7.09
Quill Feed..........	Mechanical Clutch
3 Feed Range (in/rev)..........	0.0039, 0.0079, 0.0118
Spindle to Work Surface Min/Max. (in)..........	1.97 / 27.2
Column Diameter (in)..........	5.91
Adjustable Table Surface (in)..........	18.9 x 22.05
Work Table T-Slots (in)..........	1/2
Base Size (in)..........	31.5 x 18.8
Drill Capacity with Manual Feed (in)..........	1.57
E-Stop Switch..........	Yes
Voltage..........	230 or 460
Phase..........	Three
Motor Horsepower..........	3
Machine Weight (lbs.)..........	1,081
Machine Dimensions (WxDxH in).......... 20 x 38 x 76.8
Shipping Weight (lbs.)..........1,190
Shipping Dimensions ships laying down (LxWxD in)..........    92 x 24 x 43.3
Machine Features:
•	Gear head drive with shift levers on the face of the drill
•	Gear box lubrication by automatic pump
•	Hardened and Ground high quality steel gears
•	3 Hp spindle motor
•	Built in low voltage electrical equipment
•	Depth scale and adjustable depth stop
•	Mechanical clutch quill feed system
•	Adjustable work table
•	Work light
•	Manual spindle reversing switch
•	“RS” Models are equipped with automatic spindle reversing system for tapping
•	Thermomagnetic motor breaker switch
•	Machined base with coolant tank
•	Safety drill guard with microswitch
•	Automatic tool ejector
•	Emergency stop button
•	CE mark
