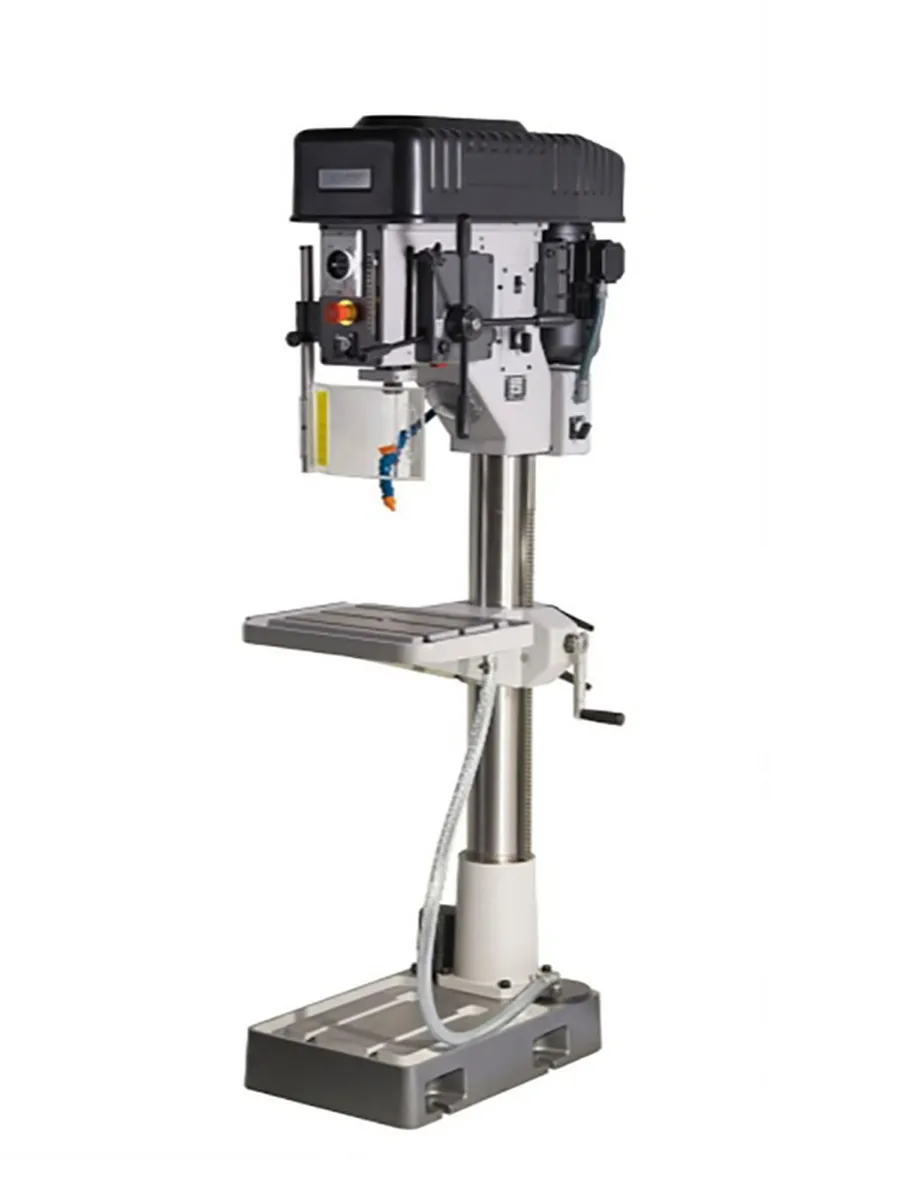

New 2025 Clausing Iberdrill AZ32V 23.62” Floor Drill Press Variable Speed Belt Drive Adjustable Work Table and Base
Have one to sell?
ConditionNew
New
Clausing Iberdrill 23.62” Floor Drill Press Variable Speed Belt Drive Adjustable Work Table and Base, 96 – 1405 RPM by electronic inverter, 2.44” diameter quill, 3MT taper spindle, mechanical clutch quill feed, 1.8 hp 2 speed spindle motor, 1.26” drill capacity steel, 230/460 volt 3 Phase voltage
Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Electronic Inverter Drive
Number of Speed Steps.......... Infinite
Spindle Speeds (RPM).......... 96 – 1405
Column to Spindle Center (in).......... 11.81
Spindle Nose.......... 3MT
Spindle Travel (in).......... 5.91
Quill Feed.......... Mechanical Clutch
3 Feed Range (in/rev).......... 0.0039, 0.0079
Spindle to Work Surface Min/Max. (in).......... 4.13 / 50.59
Column Diameter (in).......... 4.92
Adjustable Table Surface (in).......... 15.75 x 18.9
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 26.8 x 16.5
Drill Capacity with Manual Feed (in).......... 1.26
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 1.8
Machine Weight (lbs.).......... 639
Machine Dimensions (WxDxH in).......... 20 x 32 x 76.8
Shipping Weight (lbs.).......... 750
Shipping Dimensions ships laying down (LxWxD in).......... 91 x 24 x 43.3
Machine Features:
• Electronic variable inverter
• 2 speed spindle motor Built in low voltage electrical equipment
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Mechanical clutch quill feed system
• Adjustable work table
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
Clausing Iberdrill 23.62” Floor Drill Press Variable Speed Belt Drive Adjustable Work Table and Base, 96 – 1405 RPM by electronic inverter, 2.44” diameter quill, 3MT taper spindle, mechanical clutch quill feed, 1.8 hp 2 speed spindle motor, 1.26” drill capacity steel, 230/460 volt 3 Phase voltage
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing IberDrill Belt Drive Drill Press with state-of-the-art technology, allows you to select the best rpm for the tool with easy-to-use potentiometer dial. Electronic inverter 96 – 1405 rpm speeds combined with 2 speed spindle motor give excellent torque drilling large holes, small holes to spot-face, counter- bore and ream. Capacity production rated 1.26” in steel 1.38” in cast iron, Adding to the end of the model number “RS” adds the automatic tapping feature to this drill press. By setting a limit stop once the quill reaches this the spindle will automatically reverse. 230 or 460 volt 3 phase voltage.
Imperial
| Dimensions | 20 x 32 x 76.8 |
| Weight | 639 lbs. |
Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Electronic Inverter Drive
Number of Speed Steps.......... Infinite
Spindle Speeds (RPM).......... 96 – 1405
Column to Spindle Center (in).......... 11.81
Spindle Nose.......... 3MT
Spindle Travel (in).......... 5.91
Quill Feed.......... Mechanical Clutch
3 Feed Range (in/rev).......... 0.0039, 0.0079
Spindle to Work Surface Min/Max. (in).......... 4.13 / 50.59
Column Diameter (in).......... 4.92
Adjustable Table Surface (in).......... 15.75 x 18.9
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 26.8 x 16.5
Drill Capacity with Manual Feed (in).......... 1.26
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 1.8
Machine Weight (lbs.).......... 639
Machine Dimensions (WxDxH in).......... 20 x 32 x 76.8
Shipping Weight (lbs.).......... 750
Shipping Dimensions ships laying down (LxWxD in).......... 91 x 24 x 43.3
Machine Features:
• Electronic variable inverter
• 2 speed spindle motor Built in low voltage electrical equipment
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Mechanical clutch quill feed system
• Adjustable work table
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
