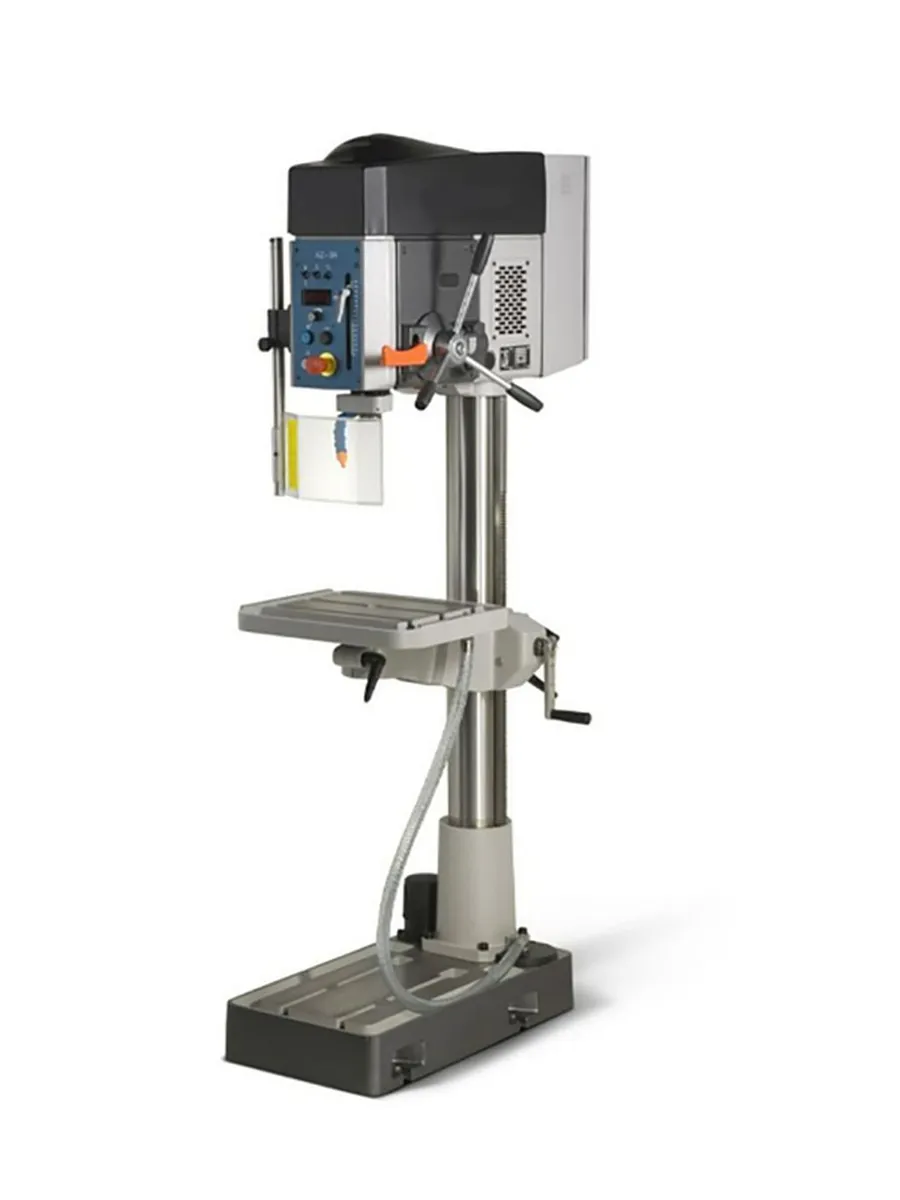

New 2025 Clausing Iberdrill AZ40 27.56” Floor Drill Press Variable Speed Belt Drive Adjustable Work Table and Base
Have one to sell?
ConditionNew
New
Clausing Iberdrill 27.56” Floor Drill Press Variable Speed Belt Drive Adjustable Work Table and Base, 100 – 2000 RPM by electronic inverter, 2.95” diameter quill, 4MT taper spindle, mechanical clutch quill feed, 5.5 hp spindle motor, 1.57” drill capacity steel, 230/460 volt 3 Phase voltage
Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Electronic Inverter Drive
Number of Speed Steps.......... Infinite
Spindle Speeds (RPM).......... 100 – 2000
Column to Spindle Center (in).......... 13.78
Spindle Nose.......... 4MT
Spindle Travel (in).......... 7.09
Quill Feed.......... Mechanical Clutch
3 Feed Range (in/rev).......... 0.0039, 0.0079, 0.0118
Spindle to Work Surface Min/Max. (in).......... 1.97 / 28.5
Column Diameter (in).......... 5.91
Adjustable Table Surface (in).......... 18.9 x 22.05
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 31.5 x 18.8
Drill Capacity with Manual Feed (in).......... 1.34
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 5.5
Machine Weight (lbs.).......... 1,014
Machine Dimensions (WxDxH in).......... 20 x 38 x 76.8
Shipping Weight (lbs.).......... 1,124
Shipping Dimensions ships laying down (LxWxD in).......... 92 x 24 x 43.3
Clausing Iberdrill 27.56” Floor Drill Press Variable Speed Belt Drive Adjustable Work Table and Base, 100 – 2000 RPM by electronic inverter, 2.95” diameter quill, 4MT taper spindle, mechanical clutch quill feed, 5.5 hp spindle motor, 1.57” drill capacity steel, 230/460 volt 3 Phase voltage
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing IberDrill Belt Drive Drill Press with state-of-the-art-technology, allows you to select the best rpm for the tool with easy to use potentiometer dial. Electronic inverter 100 – 2000 rpm speeds combined with 5.5 Hp spindle motor give excellent torque for drilling large holes, small holes to spot-face, counter-bore and ream. Mechanical clutch quill feed, with capacity production rated 1.57” in steel 1.77” in cast iron, Adding to the end of the model number “RS” adds the automatic tapping feature to this drill press. By setting a limit stop once the quill reaches this the spindle will automatically reverse. 230 or 460 volt 3 phase voltage.
Imperial
| Swing | 18.9" |
| Capacity (Mild Steel) | 1.34" |
| Capacity (Cast Iron) | 1.57" |
| Power | 5.5 hp |
| RPM | 2,000 RPM |
| Dimensions | 20 x 38 x 76.8 |
| Weight | 1,014 lbs. |
Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Electronic Inverter Drive
Number of Speed Steps.......... Infinite
Spindle Speeds (RPM).......... 100 – 2000
Column to Spindle Center (in).......... 13.78
Spindle Nose.......... 4MT
Spindle Travel (in).......... 7.09
Quill Feed.......... Mechanical Clutch
3 Feed Range (in/rev).......... 0.0039, 0.0079, 0.0118
Spindle to Work Surface Min/Max. (in).......... 1.97 / 28.5
Column Diameter (in).......... 5.91
Adjustable Table Surface (in).......... 18.9 x 22.05
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 31.5 x 18.8
Drill Capacity with Manual Feed (in).......... 1.34
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 5.5
Machine Weight (lbs.).......... 1,014
Machine Dimensions (WxDxH in).......... 20 x 38 x 76.8
Shipping Weight (lbs.).......... 1,124
Shipping Dimensions ships laying down (LxWxD in).......... 92 x 24 x 43.3
