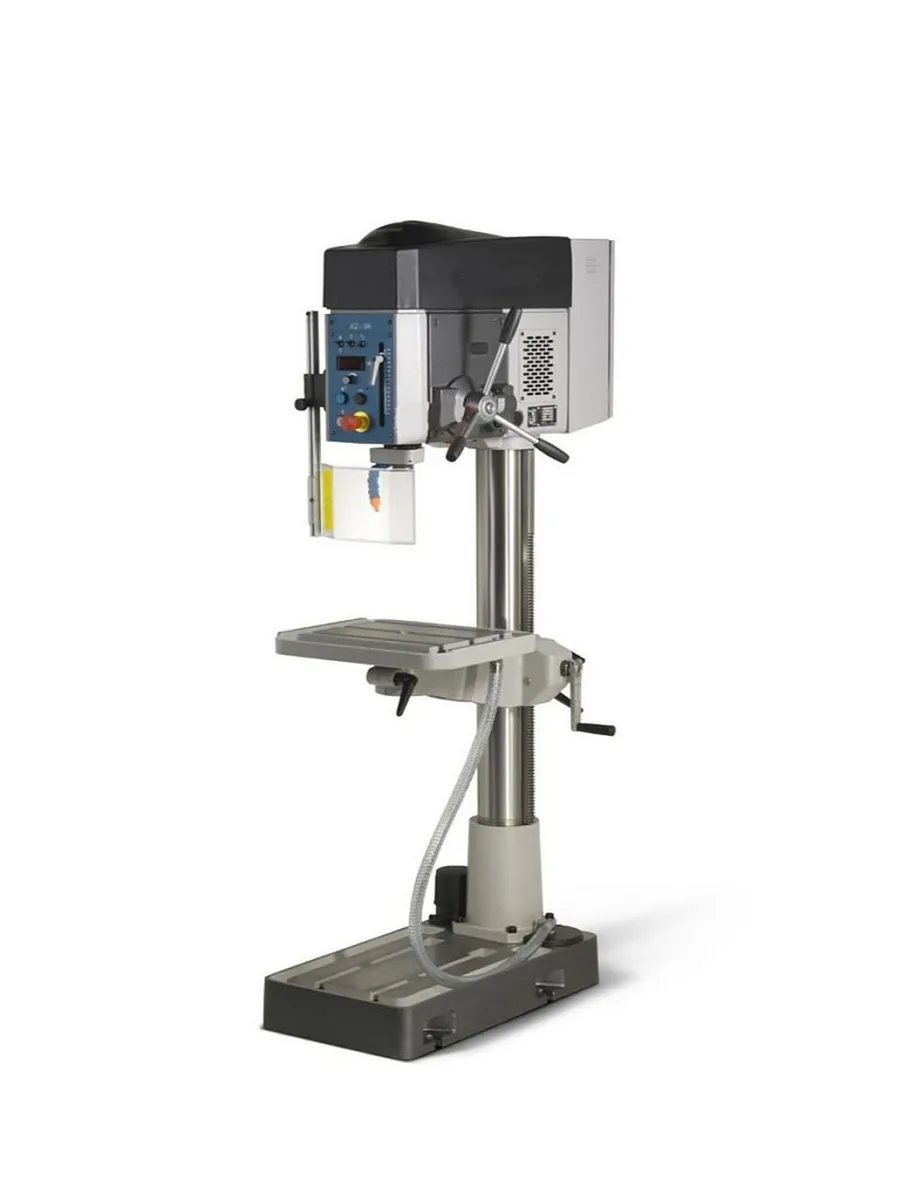

New 2025 Clausing Ibarmia SZ40 Iberdrill – 27.56” Floor Drill Press Variable Speed Belt Drive Adjustable Worktable and Base

Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Electronic Inverter Drive
Number of Speed Steps.......... Infinite
Spindle Speeds (RPM).......... 100 – 2000
Column to Spindle Center (in).......... 13.78
Spindle Nose.......... 4MT
Spindle Travel (in).......... 6.88
Quill Feed.......... Manual
3 Feed Range (in/rev).......... N/A
Spindle to Work Surface Min/Max. (in).......... 1.97 / 27.2
Column Diameter (in).......... 5.91
Adjustable Table Surface (in).......... 18.9 x 22.05
Worktable T-Slots (in).......... 1/2
Base Size (in).......... 31.5 x 18.8
Drill Capacity with Manual Feed (in).......... 1.57
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 5.5
Machine Weight (lbs.).......... 1,014
Machine Dimensions (WxDxH in).......... 20 x 38 x 76.8
Shipping Weight (lbs.).......... 1,124
Shipping Dimensions ships laying down (LxWxD in).......... 92 x 24 x 43.3

Machine Features
• Electronic variable inverter
• 5.5 Hp spindle motor
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Manual quill feed system
• Adjustable work table
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
