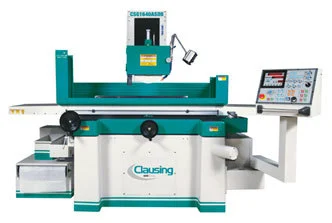

Clausing Automatic Precision Surface Grinder, Delta PLC conversational digital controller with 7.2” color touch screen, hydraulic driven longitudinal movement and servo motor driven crossfeed, programmable Up/Down head positioning, 12”x36” table size, X Maximum manual travel of 39.37”, Turcite B coated V and Flat ways for wear protection, 7.5 Hp Spindle drive motor
Machine Style.......................... Automatic – Hydraulic
Drive Type............................. Direct Coupled
Table Size (in)........................ 12 x 36
Longitudinal Maximum Travel Hyd (in)... 37.8
Longitudinal Maximum Travel Manual (in) 39.37
Table Speed Infinitely Variable (in/min)196 – 984
Maximum Cross Auto Traverse Travel (in) 13.78
Maximum Cross Travel Manual (in)....... 15
Auto Traverse Increment (in)........... 0.04 – 1
Crossfeed Handwheel Revolution (in).... 0.2
Crossfeed Handwheel Graduation (in).... 0.0005
Vertical Automatic infeed (in)......... 0.00005 -0.0025
Step Feed Jog (in)..................... 0.00004
Optional Standard Magnetic Chuck Size (inch) 12 x 36
Grinding Spindle Speed................. 1750 rpm
Standard Grinding Wheel Diameter (in).. 14
Standard Grinding Wheel Width (in)..... 2
Standard Grinding Wheel Bore (in)...... 5
Spindle Motor Horsepower............... 7.5
Hydraulic Motor Horsepower............. 3
Crossfeed Motor Horsepower............. 1
Elevating Motor Horsepower............. 1/4
Coolant System Optional
Machine Weight (lbs.).................. 7,341
Machine Floor Space (L x W x H inch)... 140 x 78 x 81
Machine Features:
• Delta PLC with 7.2” color touch screen equipped
with conversational program language
• Pre-settable hydraulic longitudinal table speed
control allows operator to pre-set speed rate,
allowing for same speed each time you engage the
hydraulic feed. Dual throttle valve for 25mm to 25M speeds
• DC Motorized cross feed with ballscrew
• Programmable up/down head positioning
• Built-in proximity switch for easy operation
• Wheel extraction screw and nut
• Balancing stand with arbor
• Leveling screws with blocks
• Grinding wheel
• Wheel flange
• Auto lubrication system
• Table mounted diamond dresser with diamond
• Micro Down Feed
• Chuck Controller w/De-Mag
• Splash Guard
• 1 year limited warranty
