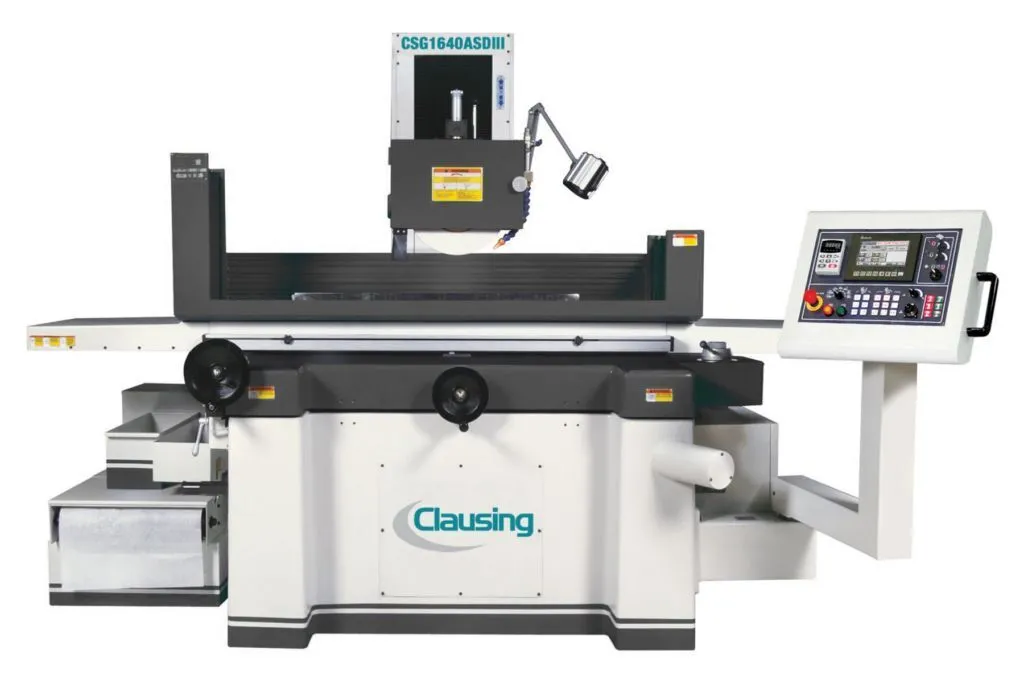

New 2025 Clausing CSG1640ASDIII 16" x 40" Automatic Precision Surface Grinder "In Stock Now"

Specifications:
• Machine Style..........Automatic – Hydraulic
• Drive Type..........Direct Coupled
• Table Size (in)..........20 x 40
• Longitudinal Maximum Travel Hyd (in)..........41.73
• Longitudinal Maximum Travel Manual (in)..........43.31
• Table Speed Infinitely Variable (in/min)..........196 – 984
• Maximum Cross Auto Traverse Travel (in)..........17
• Maximum Cross Travel Manual (in)..........18
• Auto Traverse Increment (in)..........0.04 – 1
• Crossfeed Handwheel Revolution (in)..........0.2
• Crossfeed Handwheel Graduation (in)..........0.0005
• Vertical Automatic infeed (in)..........0.00005 - 0.0025
• Step Feed Jog (in)..........0.00004
• Optional Standard Magnetic Chuck Size (inch)..........16 x 40
• Grinding Spindle Speed..........1750 rpm
• Standard Grinding Wheel Diameter (in)..........14
• Standard Grinding Wheel Width (in)..........2
• Standard Grinding Wheel Bore (in)..........5
• Spindle Motor Horsepower..........7.5
• Hydraulic Motor Horsepower..........3
• Crossfeed Motor Horsepower..........1
• Elevating Motor Horsepower..........1/4
• Coolant System..........Optional
• Machine Weight (lbs.)..........8,818
• Machine Floor Space (L x W x H inch)..........158 x 87 x 81

Machine Features:
• Delta PLC with 7.2” color touch screen equipped with conversational program language
• Pre-settable hydraulic longitudinal table speed control allows operator to pre-set speed rate, allowing for same speed each time you engage the hydraulic feed. Dual throttle valve for 25mm to 25M speeds
• DC Motorized cross feed with ballscrew
• Programmable up/down head positioning
• Built-in proximity switch for easy operation
• Wheel extraction screw and nut
• Balancing stand with arbor
• Leveling screws with blocks
• Grinding wheel
• Wheel flange
• Auto lubrication system
• Table mounted diamond dresser with diamond
• Micro Down Feed
• Chuck Controller w/De-Mag
• Splash Guard
• 1 year limited warranty
