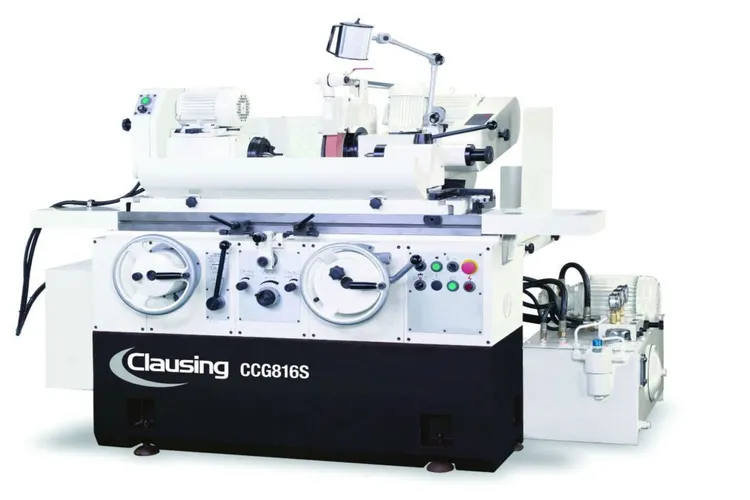

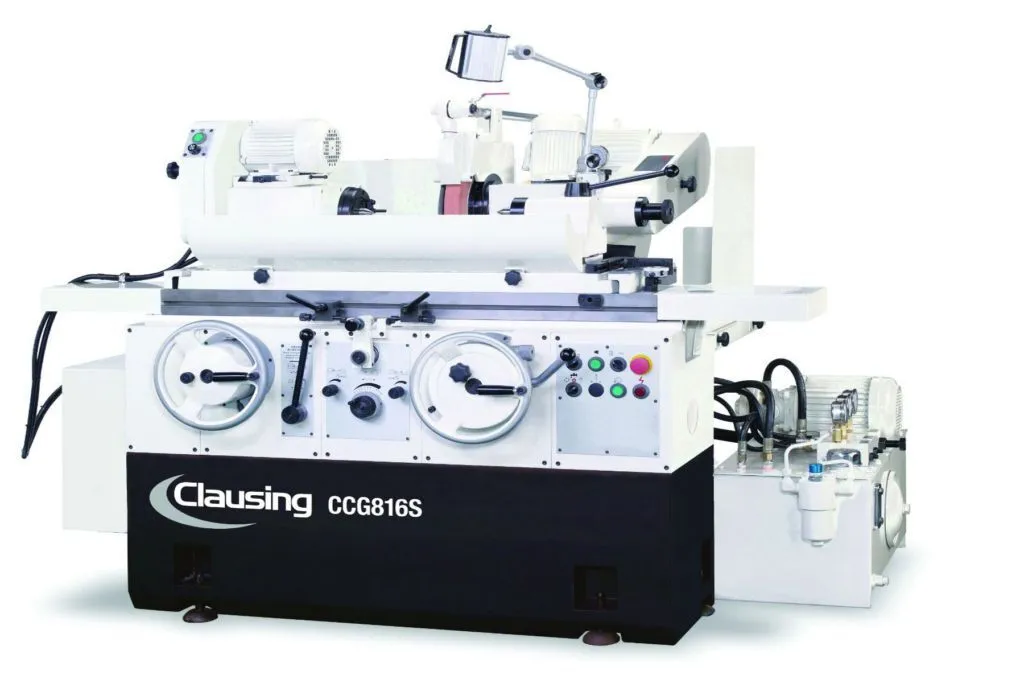

New 2025 Clausing CCG816S 8" x 16" Precision Cylinder Grinder Hydraulic Traverse

Machine Style.......... Manual – Hydraulic
Distance Between Centers (inch).......... 15.7
Swing Over Table (inch).......... 7.87
Maximum Load of Centers (lbs.)........... 132
Maximum External Grinding Diameter (inch).......... 7
Wheel Head Swivel Angle +/-.......... 30 degrees
Wheel Head Manual Distance (inch).......... 5.3
Wheel Head Auto Rapid Advance (inch).......... 0.98
Wheel Head Sliding Seat Supplementary Displacement (inch).......... 95 (total 10)
Wheel Head Minimum Setting Unit (inch).......... 0.000039
Wheel Head One Turn Handwheel (graduation) (inch).......... 2 (0.000196)
Grinding Wheel OD x W x ID (inch).......... 13.97 x 1.49 x 5
Grinding Wheel Speeds (belt-type rpm).......... 2085 / 2495
Work Spindle Head Swivel Angle.......... +90 to -30 degrees
Work Spindle Head Center Taper.......... 3MT
Work Spindle Head Spindle Speeds Variable (rpm).......... 10 – 300
Work Spindle Head Max. Load of Spindle (including tool holder).......... 33lbs. 3.93” Max Long
Tailstock Center Taper.......... 3MT
Tailstock Quill Stroke (inch).......... 0.787
Table Swivel Angle.......... -3 to +12 degrees
Table Traverse Speed (in/min).......... 1.96 – 212.5
Table Auto Reciprocate Min. Stroke (inch).......... 0.3149
Table Feed of One Turn of Handwheel (2-step inch).......... 0.787
Wheel Spindle Horsepower.......... 3
Workhead Spindle Horsepower.......... ½
Hydraulic Pump Horsepower.......... ½
Wheel Spindle Lubrication Pump Horsepower.......... ¼
Coolant Pump Horsepower.......... ¼
Optional Internal Grinding Spindle Horsepower.......... ¼
Wheel Spindle Lube Tank Capacity (liters).......... 7
Hydraulic Fluid Tank Capacity (liters).......... 63
Coolant Tank Capacity (liters) 110
Machine Weight (lbs.).......... 4,400
Shipping Weight (lbs.).......... 5,000
Floor Dimensions W x D x H (inch)
.......... 91.2 x 79.5 x 41.8
Shipping Dimensions W x D x H (inch)
.......... 100 x 89 x 50

Machine Features:

Distance between centers 15.7”
Swing over table is 7.8
Maximum grinding diameter is 7”
Inverter control head speed 10-300 rpm
Grinding wheel speed 2085/2495 rpm belt drive
Semi-automatic feed
Hydraulically operated traverse moving
Wheel head provides rapid feed and manual feed for grinding operations
Optional internal grinding attachment
1-year limited warranty
