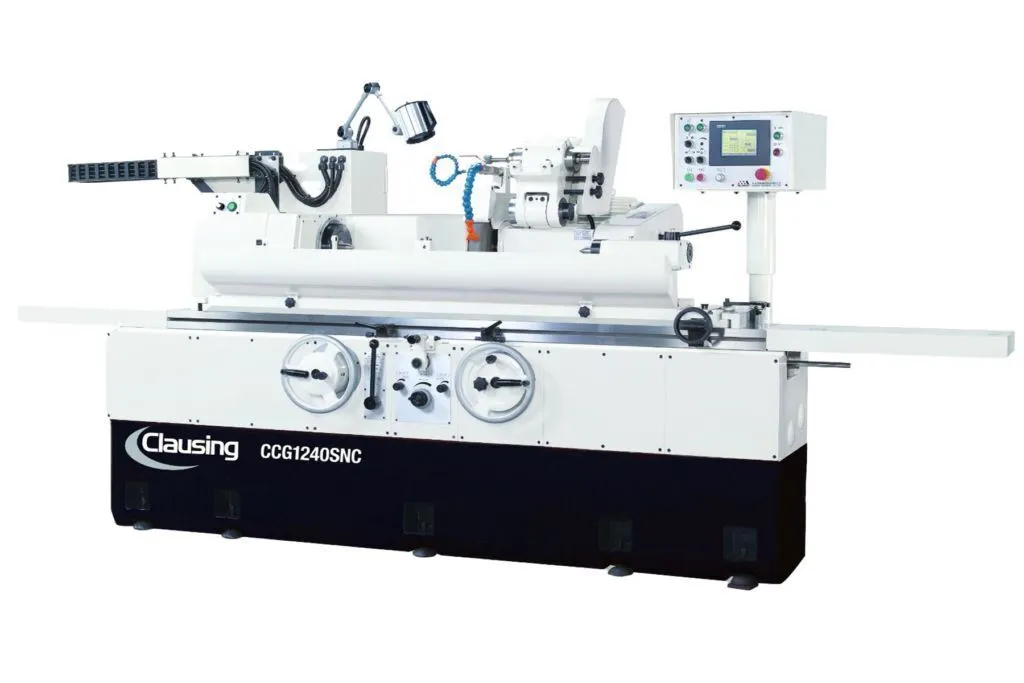

New 2025 Clausing CCG1240SNC 12″ x 40″ NC Control Precision Cylinder Grinder

Machine Style.......... NC – Hydraulic
Distance Between Centers (inch).......... 39.3
Swing Over Table (inch).......... 12.5
Maximum Load of Centers (lbs.).......... 220
Maximum External Grinding Diameter (inch).......... 11.8
Wheel Head Swivel Angle.......... +/- 30 degrees
Wheel Head Manual Distance (inch).......... 6.3
Wheel Head Auto Rapid Advance (inch).......... 1.57
Wheel Head Sliding Seat Supplementary Displacement (inch).......... 95 (total 11.6)
Wheel Head Minimum Setting Unit (inch).......... 0.000039
Wheel Head One Turn Handwheel (graduation) (inch).......... 2 (0.000196)
Grinding Wheel OD x W x ID (inch).......... 15.9 x 1.96 x 5
Grinding Wheel Speeds (belt-type rpm).......... 1783/1940
Work Spindle Head Swivel Angle.......... 120 (+90 to -30) degrees
Work Spindle Head Center Taper.......... 4MT
Work Spindle Head Spindle Speeds Variable (rpm).......... 10 – 300
Work Spindle Head Max. Load of Spindle (including tool holder).......... 77lbs. 5.9” Max Long
Tailstock Center Taper.......... 4MT
Tailstock Quill Stroke (inch).......... 0.984
Table Swivel Angle.......... -2 to +10 degrees
Table Traverse Speed (in/min).......... 1.96 – 212.5
Table Auto Reciprocate Min. Stroke (inch).......... 0.3149
Table Feed of One Turn of Handwheel (2-step inch).......... 0.787
Wheel Spindle Horsepower.......... 5
Workhead Spindle Horsepower.......... 1-3/4 / 2.5
Hydraulic Pump Horsepower.......... ½
Wheel Spindle Lubrication Pump Horsepower.......... ¼
Coolant Pump Horsepower.......... ¼
Optional Internal Grinding Spindle Horsepower.......... 1
Wheel Spindle Lube Tank Capacity (liters).......... 9
Hydraulic Fluid Tank Capacity (liters).......... 46
Coolant Tank Capacity (liters).......... 110
Machine Weight (lbs.).......... 7,040
Shipping Weight (lbs.).......... 7,940
Floor Dimensions W x D x H (inch).......... 184 x 86 x 44
Shipping Dimensions W x D x H (inch).......... 194 x 96 x 54

Machine Features:
• Distance between centers 29.5”
• Swing over table is 9.8
• Maximum grinding diameter is 9.8”
• Variable speed 2 Speed motor 1900/1500 rpm
• Wheel flange with nut
• Table mounted wheel dresser
• 2 Carbide tipped centers
• Work driving dog set (3pcs)
• Fagor DRO for inch measurement
• Optional internal grinding attachment
• 1 year limited warranty
