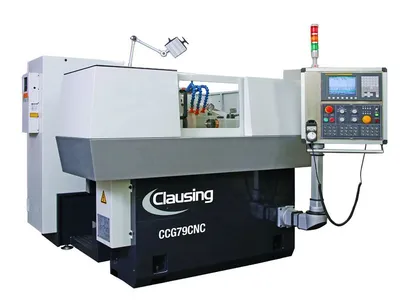

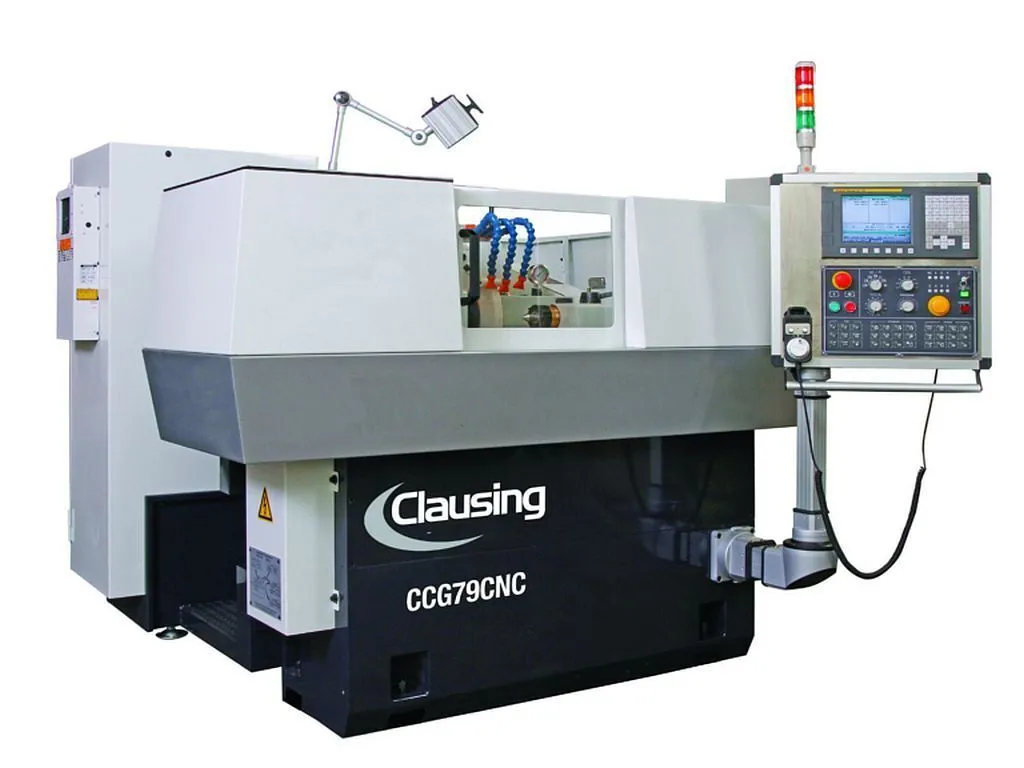

New 2025 Clausing CCG79CNC 7" x 9" Fanuc CNC Control, Precision Cylindrical Grinder
Have one to sell?
ConditionNew
New
Discover precision with the 2025 Clausing CCG79CNC 7" x 9" Fanuc CNC Cylindrical Grinder, featuring a Fanuc Oi CNC control, 9.8" center distance, and 7" max grinding diameter. Equipped with a 2085 rpm grinding wheel and powerful servo motors, ideal for accurate results.
Machine Style.................. CNC Control
Distance Between Centers (inch) 9.8
Swing Over Table (inch)........ 7.87
Maximum Load of Centers (lbs.) 132
Maximum External Grinding Diameter (inch)....... 7
Wheel Head Auto Rapid Advance (in/min).......... 236
Wheel Head Minimum Input Increment.............. 0.0000393
Internal Grinding.............. Manual Elevation
Grinding Wheel OD x W x ID (inch)............... 13.97 x 1.49 x 5
Grinding Wheel Speeds (belt-type rpm)........... 2085
Linear Velocity (in/min)....... 1181
Work Spindle Head Swivel Angle 120 (+90 to -30) degrees
Work Spindle Head Center Taper 3MT
Work Spindle Head Spindle Speeds Variable (rpm) 10 – 300
Work Spindle Head Max. Load of Spindle
(including tool holder) 33lbs. 3.93” Max Long
Tailstock Center Taper......... 3MT
Tailstock Quill Stroke (inch).. 0.787
Table Swivel Angle............. -3 to +10 degrees
Table Traverse Speed (in/min).. 236
Minimum Input Increment........ 0.0000393
Wheel Spindle Horsepower....... 3
Work Head Spindle Frequency Inverter Horsepower 1
Wheel Head Feed AC Servo Motor Horsepower 1
Table Feed AC Servo Motor Horsepower........... 1-1/2
Hydraulic Pump Horsepower...... ½
Wheel Spindle Lubrication Pump Horsepower...... ½
Coolant Pump Horsepower........ ¼
Optional Internal Grinding Spindle Horsepower.. ¼
Wheel Spindle Lube Tank Capacity (liters)...... 12
Hydraulic Fluid Tank Capacity (liters)......... 60
Coolant Tank Capacity (liters) 110
Machine Weight (lbs.).......... 4,950
Shipping Weight (lbs.)......... 5,450
Floor Dimensions W x D x H (inch)
78.8 x 90 x 75.2
Work Height (inch)............. 41.4
Shipping Dimensions W x D x H (inch)
85 x 100 x 85
Machine Features:
• Fanuc Oi full CNC control
• Distance between centers 9.8”
• Swing over table is 7.8”
• Maximum grinding diameter is 7”
• Inverter control head speed 10-300 rpm
• General purpose grinding wheel
• Grinding wheel speed 2085 rpm belt drive
• Linear scale X-Axis
• Table mounted wheel dresser
• Coolant system
• Hydraulic system
• Carbide tipped work centers
• Work light
• Optional internal grinding attachment
• Optional fully enclosed splash guard
• Toolbox and tools
• 1 year limited warranty
Discover precision with the 2025 Clausing CCG79CNC 7" x 9" Fanuc CNC Cylindrical Grinder, featuring a Fanuc Oi CNC control, 9.8" center distance, and 7" max grinding diameter. Equipped with a 2085 rpm grinding wheel and powerful servo motors, ideal for accurate results.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing Industrial Inc. high precision cylinder grinders are unmatched in structural rigidity and stability, grinding accuracy and operational convenience. Each machine provides maximum operational flexibility thereby allowing for various grinding operations. You will get extra value when putting Clausing cylinder grinders on your production line. Fanuc Oi CNC controller for easy automated operation.
The grinding wheel spindle is precision machined from high quality SNCM220 alloy steel normalized and tempered, carburized and sub-zero treated, precision ground and mirror-effect treated to over HRC62 hardness. The wheel spindle runs by using special hydrostatic bearing and is especially ideal for precision work. It features high speed no friction between metals, no heat generation deformation-free producing extra high accuracy for continual use.
Advanced hydrostatic lubrication system for the slideways of the table and wheel head lubricate the ways with an automatic lubrication system to provide extremely smooth movement and superior grinding accuracy.
The optional internal grinding attachment allows the operator to grind inside tubing or bearing races quickly and easily.
Imperial
| Swing | 7.87" |
| Centers | 9.8" |
| Plain or Angle Head | Plain |
| Grinding Wheel Dia. | 13.97" |
| Wheel Power | 3 hp |
| Wheel Speed | 2,085 RPM |
| Control | CNC (FANUC OI) |
| Dimensions | 78.8 x 90 x 75.2 |
| Weight | 4950 |
Machine Style.................. CNC Control
Distance Between Centers (inch) 9.8
Swing Over Table (inch)........ 7.87
Maximum Load of Centers (lbs.) 132
Maximum External Grinding Diameter (inch)....... 7
Wheel Head Auto Rapid Advance (in/min).......... 236
Wheel Head Minimum Input Increment.............. 0.0000393
Internal Grinding.............. Manual Elevation
Grinding Wheel OD x W x ID (inch)............... 13.97 x 1.49 x 5
Grinding Wheel Speeds (belt-type rpm)........... 2085
Linear Velocity (in/min)....... 1181
Work Spindle Head Swivel Angle 120 (+90 to -30) degrees
Work Spindle Head Center Taper 3MT
Work Spindle Head Spindle Speeds Variable (rpm) 10 – 300
Work Spindle Head Max. Load of Spindle
(including tool holder) 33lbs. 3.93” Max Long
Tailstock Center Taper......... 3MT
Tailstock Quill Stroke (inch).. 0.787
Table Swivel Angle............. -3 to +10 degrees
Table Traverse Speed (in/min).. 236
Minimum Input Increment........ 0.0000393
Wheel Spindle Horsepower....... 3
Work Head Spindle Frequency Inverter Horsepower 1
Wheel Head Feed AC Servo Motor Horsepower 1
Table Feed AC Servo Motor Horsepower........... 1-1/2
Hydraulic Pump Horsepower...... ½
Wheel Spindle Lubrication Pump Horsepower...... ½
Coolant Pump Horsepower........ ¼
Optional Internal Grinding Spindle Horsepower.. ¼
Wheel Spindle Lube Tank Capacity (liters)...... 12
Hydraulic Fluid Tank Capacity (liters)......... 60
Coolant Tank Capacity (liters) 110
Machine Weight (lbs.).......... 4,950
Shipping Weight (lbs.)......... 5,450
Floor Dimensions W x D x H (inch)
78.8 x 90 x 75.2
Work Height (inch)............. 41.4
Shipping Dimensions W x D x H (inch)
85 x 100 x 85
Machine Features:
• Fanuc Oi full CNC control
• Distance between centers 9.8”
• Swing over table is 7.8”
• Maximum grinding diameter is 7”
• Inverter control head speed 10-300 rpm
• General purpose grinding wheel
• Grinding wheel speed 2085 rpm belt drive
• Linear scale X-Axis
• Table mounted wheel dresser
• Coolant system
• Hydraulic system
• Carbide tipped work centers
• Work light
• Optional internal grinding attachment
• Optional fully enclosed splash guard
• Toolbox and tools
• 1 year limited warranty
