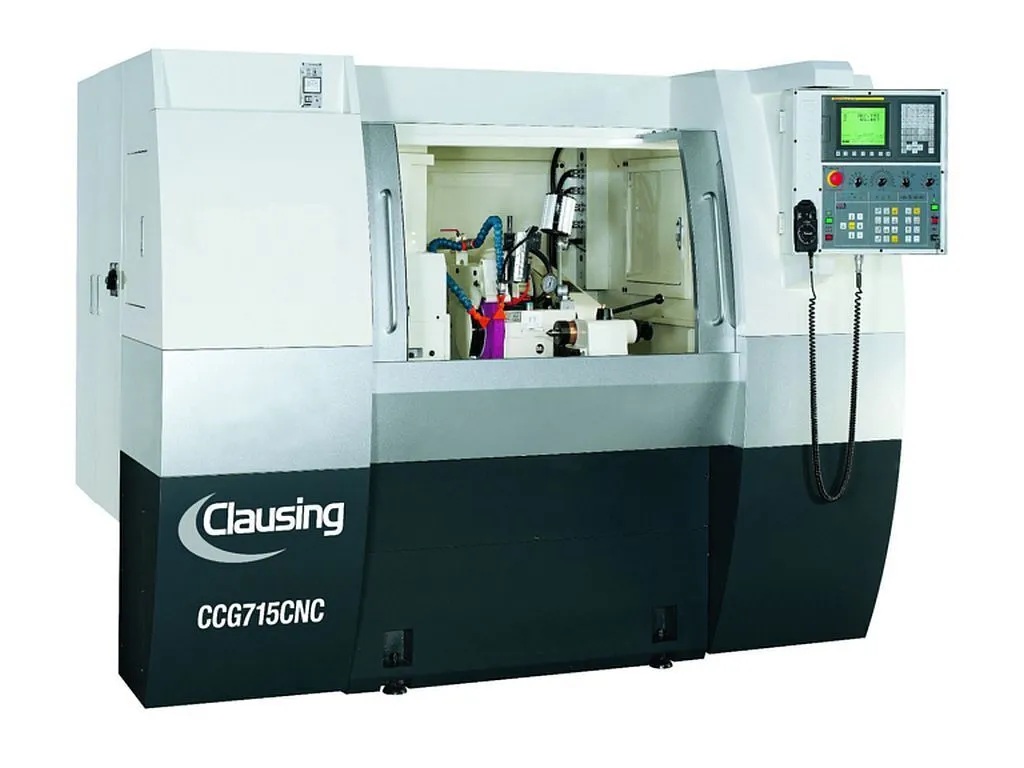

New 2025 Clausing CCG715CNC 7" x 15" Fanuc CNC Control, Precision Cylindrical Grinder

Machine Style.......... CNC Control
Distance Between Centers (inch).......... 15.7
Swing Over Table (inch).......... 7.87
Maximum Load of Centers (lbs.).......... 132
Maximum External Grinding Diameter (inch).......... 7
Wheel Head Auto Rapid Advance (in/min).......... 236
Wheel Head Minimum Input Increment.......... 0.0000393
Internal Grinding.......... Manual Elevation
Grinding Wheel OD x W x ID (inch) .......... 13.97 x 1.49 x 5
Grinding Wheel Speeds (belt-type rpm).......... 2085
Linear Velocity (in/min).......... 1181
Work Spindle Head Swivel Angle.......... 120 (+90 to -30) degrees
Work Spindle Head Center Taper.......... 3MT
Work Spindle Head Spindle Speeds Variable (rpm).......... 10 – 300
Work Spindle Head Max. Load of Spindle (including tool holder).......... 33lbs. 3.93” Max Long
Tailstock Center Taper.......... 3MT
Tailstock Quill Stroke (inch).......... 0.787
Table Swivel Angle.......... -3 to +10 degrees
Table Traverse Speed (in/min).......... 236
Minimum Input Increment.......... 0.0000393
Wheel Spindle Horsepower.......... 3
Work Head Spindle Frequency Inverter Horsepower.......... 1
Wheel Head Feed AC Servo Motor Horsepower.......... 1
Table Feed AC Servo Motor Horsepower.......... 1-1/2
Hydraulic Pump Horsepower.......... ½
Wheel Spindle Lubrication Pump Horsepower.......... ½
Coolant Pump Horsepower.......... ¼
Optional Internal Grinding Spindle Horsepower.......... ¼
Wheel Spindle Lube Tank Capacity (liters).......... 12
Hydraulic Fluid Tank Capacity (liters).......... 60
Coolant Tank Capacity (liters).......... 110
Machine Weight (lbs.).......... 5,170
Shipping Weight (lbs.).......... 5,670
Floor Dimensions W x D x H (inch).......... 97.6 x 105.5 x 74
Work Height (inch).......... 41.4
Shipping Dimensions W x D x H (inch).......... 110 x 115 x 85

Machine Features:
• Fanuc Oi full CNC control
• Distance between centers 15.7”
• Swing over table is 7.8”
• Maximum grinding diameter is 7”
• Inverter control head speed 10-300 rpm
• General purpose grinding wheel
• Grinding wheel speed 2085 rpm belt drive
• Linear scale X-Axis
• Table mounted wheel dresser
• Coolant system
• Hydraulic system
• Carbide tipped work centers
• Work light
• Optional internal grinding attachment
• Optional fully enclosed splash guard
• Toolbox and tools
• 1 year limited warranty
