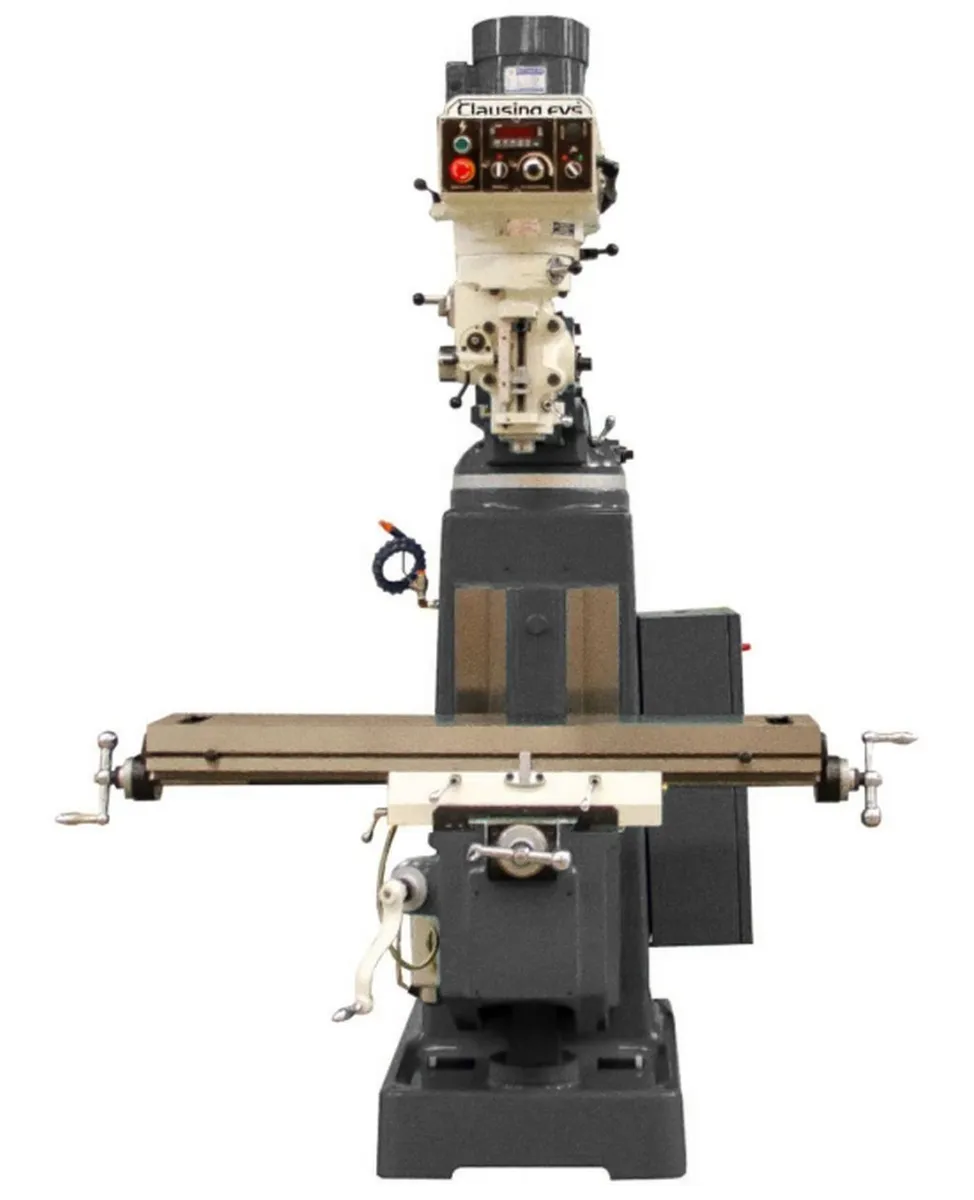

New 2025 Clausing 2EVS30 Knee Mill
Have one to sell?
ConditionNew
New
Discover precision with the new Clausing 2EVS30 Knee Mill. Features include a 9"x49" table, 3 hp electronic variable speed, and robust Meehanite castings. Ideal for diverse milling tasks with superior rigidity and a compact design, this mill enhances efficiency.
Machine Style..........Knee Mill
Spindle Speed Control..........Electronic Variable Speed
Spindle (Hp)..........3
Total Amp Draw @208V 3Ph..........11
Total Amp Draw @230V 3PH..........10
Total Amp Draw @460V 3Ph..........5
Table Size (inch)..........9 x 49
Number T-Slots..........3
T-Slot Width (inch)..........(.638)
T-Slot Center Distance (inch)..........2.08
Table Way Design..........Dovetail
Cross Feed Way Design..........Dovetail
Knee Way Design..........Dovetail
X Longitudinal Travel Manual (inch)..........38.2
Y Cross Travel Manual (inch)..........14.2
Knee Travel Manual (inch)..........15
Ram Travel Manual (inch)..........18.5
Variable Spindle Speed (rpm)..........60 – 4300
Variable Spindle Speed Low Range (rpm)..........60 – 500
Variable Spindle Speed High Range (rpm)..........550 – 4300
Spindle Taper..........NMTB 30
Spindle quill Travel (inch)..........5
Quill Feed (in/rev)..........(.0015/.0031/.006)
Quill Diameter (inch)..........3.38
Column Turret Diameter (inch)..........14.96
Knee Width (inch)..........11.42
Column Bearing Length (inch)..........16.54
Saddle/Table Bearing Length (inch)..........19.88
Ram/Turret Bearing Length (inch)..........16.14
Ram Length (inch)..........28.94
Table Load (lbs.)..........665
Machine Weight (lbs.)..........2,100
Voltage Required..........230/460
Phase..........3
Machine Foot Print (LxWxH) (inch)..........99 x 66 x 88.6
Shipping Weight (lbs.)..........2,500
Machine Features:
Electronic variable speed with inverter drive
9″ X 49″; Table surface
Meehanite Castings for superior rigidity and wear resistance
Hardened and Ground X,Y,&Z ways
X/Y ways coated with Turcite B for excellent wear resistance
Column and Knee way covers
Ground T-slots to provide reference edge for workpiece positioning
Hardened and ground table surface, and spindle
Chromed and ground quill
Chromed and double nut leadscrews for backlash compensation
ABEC7/CP4 Spindle bearings
Coolant System w/pump and switch
Articulating head for compound angles 90 degree left and right 45 degree up and down by worm gear
Lever operated manual rapid quill movement
Hand wheel for fine quill feed
Adjustable automatic feed disengagement for quill feed
Micrometer depth stop for quill
Reversing switch for clockwise or counter clockwise operation of spindle
Hand operated spindle brake
One shot way lube system
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
Discover precision with the new Clausing 2EVS30 Knee Mill. Features include a 9"x49" table, 3 hp electronic variable speed, and robust Meehanite castings. Ideal for diverse milling tasks with superior rigidity and a compact design, this mill enhances efficiency.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing Knee Mill is driven by variable speed sheave pulleys using a V-belt from motor to a manual variable speed assembly that adjusts the infinite variable speed range by turning a dial. High Low range shift mechanism provides the correct torque for your manufacturing application. One of the heaviest knee mills in its class, and designed to deliver all the power, precision, and versatility you will need to handle milling jobs in your manufacturing facility.
Three phase voltage refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Table-W | 9" |
| Table-L | 49" |
| Travel-Long | 38.2" |
| Travel-Cross | 14.2" |
| Power | 3 hp |
| RPM | 4,300 RPM |
| Taper | NMTB 30 |
| Dimensions | 99" x 66" x 88.6" |
| Weight | 2100Lbs |
Machine Style..........Knee Mill
Spindle Speed Control..........Electronic Variable Speed
Spindle (Hp)..........3
Total Amp Draw @208V 3Ph..........11
Total Amp Draw @230V 3PH..........10
Total Amp Draw @460V 3Ph..........5
Table Size (inch)..........9 x 49
Number T-Slots..........3
T-Slot Width (inch)..........(.638)
T-Slot Center Distance (inch)..........2.08
Table Way Design..........Dovetail
Cross Feed Way Design..........Dovetail
Knee Way Design..........Dovetail
X Longitudinal Travel Manual (inch)..........38.2
Y Cross Travel Manual (inch)..........14.2
Knee Travel Manual (inch)..........15
Ram Travel Manual (inch)..........18.5
Variable Spindle Speed (rpm)..........60 – 4300
Variable Spindle Speed Low Range (rpm)..........60 – 500
Variable Spindle Speed High Range (rpm)..........550 – 4300
Spindle Taper..........NMTB 30
Spindle quill Travel (inch)..........5
Quill Feed (in/rev)..........(.0015/.0031/.006)
Quill Diameter (inch)..........3.38
Column Turret Diameter (inch)..........14.96
Knee Width (inch)..........11.42
Column Bearing Length (inch)..........16.54
Saddle/Table Bearing Length (inch)..........19.88
Ram/Turret Bearing Length (inch)..........16.14
Ram Length (inch)..........28.94
Table Load (lbs.)..........665
Machine Weight (lbs.)..........2,100
Voltage Required..........230/460
Phase..........3
Machine Foot Print (LxWxH) (inch)..........99 x 66 x 88.6
Shipping Weight (lbs.)..........2,500
Machine Features:
Electronic variable speed with inverter drive
9″ X 49″; Table surface
Meehanite Castings for superior rigidity and wear resistance
Hardened and Ground X,Y,&Z ways
X/Y ways coated with Turcite B for excellent wear resistance
Column and Knee way covers
Ground T-slots to provide reference edge for workpiece positioning
Hardened and ground table surface, and spindle
Chromed and ground quill
Chromed and double nut leadscrews for backlash compensation
ABEC7/CP4 Spindle bearings
Coolant System w/pump and switch
Articulating head for compound angles 90 degree left and right 45 degree up and down by worm gear
Lever operated manual rapid quill movement
Hand wheel for fine quill feed
Adjustable automatic feed disengagement for quill feed
Micrometer depth stop for quill
Reversing switch for clockwise or counter clockwise operation of spindle
Hand operated spindle brake
One shot way lube system
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
