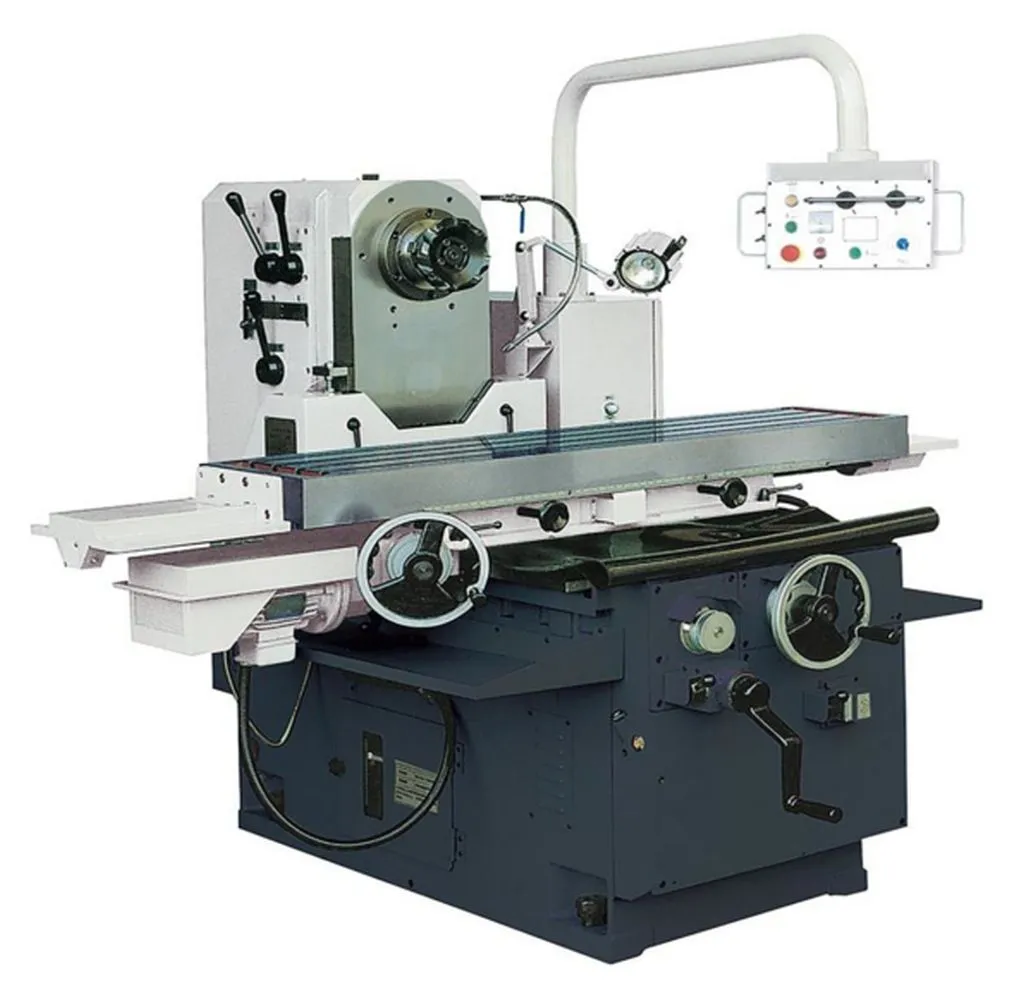

New 2025 Clausing 4HM Horizontal Mill
Have one to sell?
ConditionNew
New
Discover peak precision with the new Clausing 4HM Horizontal Mill. Featuring a robust 7.5 HP motor, large 14" x 59" table, and advanced auto lubricating system, it's built for durability and high performance. Optimize your production today!
Machine Style..........Horizontal Mill
Spindle Speed Control..........Step Speed
Table area..........14” x 59”
Total load capacity..........1,760 lbs.
No. of T-slots..........4
Distance between T-slots..........3.14”
T-slot size..........(.708”)
Spindle Center to Table (horizontal)..........3.5” – 20.4”
X Automatic Travel Longitude..........39.3”
X Axis Rapid Travel Rate..........78.7 ipm
X Axis Feed Rate..........(.62 – 47.2 ipm)
Y Automatic Travel Cross..........21.2”
Y Axis Rapid Travel Rate..........78.7 ipm
Y Axis Feed Rate..........(.62 – 47.2 ipm)
Z Automatic Travel Up/Dwn..........16.9”
Z Axis Rapid Travel Rate..........27.5 ipm
Z Axis Feed Rate..........(.3 – 17.7 ipm)
Spindle taper..........NT#50
Milling arbor..........1”
Number spindle speeds..........8
Spindle speed range..........95-1200 rpm
Spindle motor HP..........7.5
Longitudinal..........2 Hp
Cross Feed..........2 Hp
Vertical..........2 Hp
Cooling Pump..........1/8 Hp
Lube Pump..........4W
Net weight..........5,940 lbs.
Shipping weight..........6,650 lbs.
Machine Dimensions (L x W x H)..........80.7” x 99.8” x 72.4”
Floor Space Required..........120” x 99.8”
Machine Features:
Only Metric Measure (inch measure requires DRO option)
7.5Hp Main spindle motor
Variable Feed Speed for 3 Axis
Auto central lubricating system
High quality meehanite casting for superior rigidity and wear resistance
All gears and shafts are hardened and ground
Large 14” x 59” (360 x 1500mm) table with 4 T-slots
Extra large dovetail and dovetail slide ways for greater accuracy
All slide ways and table are hardened and ground
Turcite “B” on X/Y/Z axis ways
Automatic coolant system and coolant pump
Tool box and service tools
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
Discover peak precision with the new Clausing 4HM Horizontal Mill. Featuring a robust 7.5 HP motor, large 14" x 59" table, and advanced auto lubricating system, it's built for durability and high performance. Optimize your production today!
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Clausing Horizontal Mills are heavy-duty, reliable, extremely accurate and very versatile machines. These heavy-duty cast iron mills can be used for one-off pieces as well as small to large size production runs, making them ideal for maintenance tool rooms, job shops or tool and die shops. A wide range of spindle speeds combined with infinitely variable feed rates makes cutting ferrous and non-ferrous metals highly efficient.
Clausing Mills are designed and built for accuracy featuring hardened and ground alloy steel main spindle mounted on highly accurate bearings. Extra heavy-duty saddle traveling on hardened ground dove tail ways capable of handling table loads up to 1,760 lbs., large hardened and ground table with 4 T-slots and much more.
Imperial
| Table Size-W | 14" |
| Table Size-L | 59" |
| Travel-Long | 39.3" |
| Travel-Cross | 21.2" |
| Travel-Vert | 16.9" |
| Power | 7.5 hp |
| RPM | 1,200 RPM |
| Taper | NT#50 |
| Dimensions | 80.7" x 99.8" x 72.4" |
| Weight | 5,940Lbs |
Machine Style..........Horizontal Mill
Spindle Speed Control..........Step Speed
Table area..........14” x 59”
Total load capacity..........1,760 lbs.
No. of T-slots..........4
Distance between T-slots..........3.14”
T-slot size..........(.708”)
Spindle Center to Table (horizontal)..........3.5” – 20.4”
X Automatic Travel Longitude..........39.3”
X Axis Rapid Travel Rate..........78.7 ipm
X Axis Feed Rate..........(.62 – 47.2 ipm)
Y Automatic Travel Cross..........21.2”
Y Axis Rapid Travel Rate..........78.7 ipm
Y Axis Feed Rate..........(.62 – 47.2 ipm)
Z Automatic Travel Up/Dwn..........16.9”
Z Axis Rapid Travel Rate..........27.5 ipm
Z Axis Feed Rate..........(.3 – 17.7 ipm)
Spindle taper..........NT#50
Milling arbor..........1”
Number spindle speeds..........8
Spindle speed range..........95-1200 rpm
Spindle motor HP..........7.5
Longitudinal..........2 Hp
Cross Feed..........2 Hp
Vertical..........2 Hp
Cooling Pump..........1/8 Hp
Lube Pump..........4W
Net weight..........5,940 lbs.
Shipping weight..........6,650 lbs.
Machine Dimensions (L x W x H)..........80.7” x 99.8” x 72.4”
Floor Space Required..........120” x 99.8”
Machine Features:
Only Metric Measure (inch measure requires DRO option)
7.5Hp Main spindle motor
Variable Feed Speed for 3 Axis
Auto central lubricating system
High quality meehanite casting for superior rigidity and wear resistance
All gears and shafts are hardened and ground
Large 14” x 59” (360 x 1500mm) table with 4 T-slots
Extra large dovetail and dovetail slide ways for greater accuracy
All slide ways and table are hardened and ground
Turcite “B” on X/Y/Z axis ways
Automatic coolant system and coolant pump
Tool box and service tools
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
