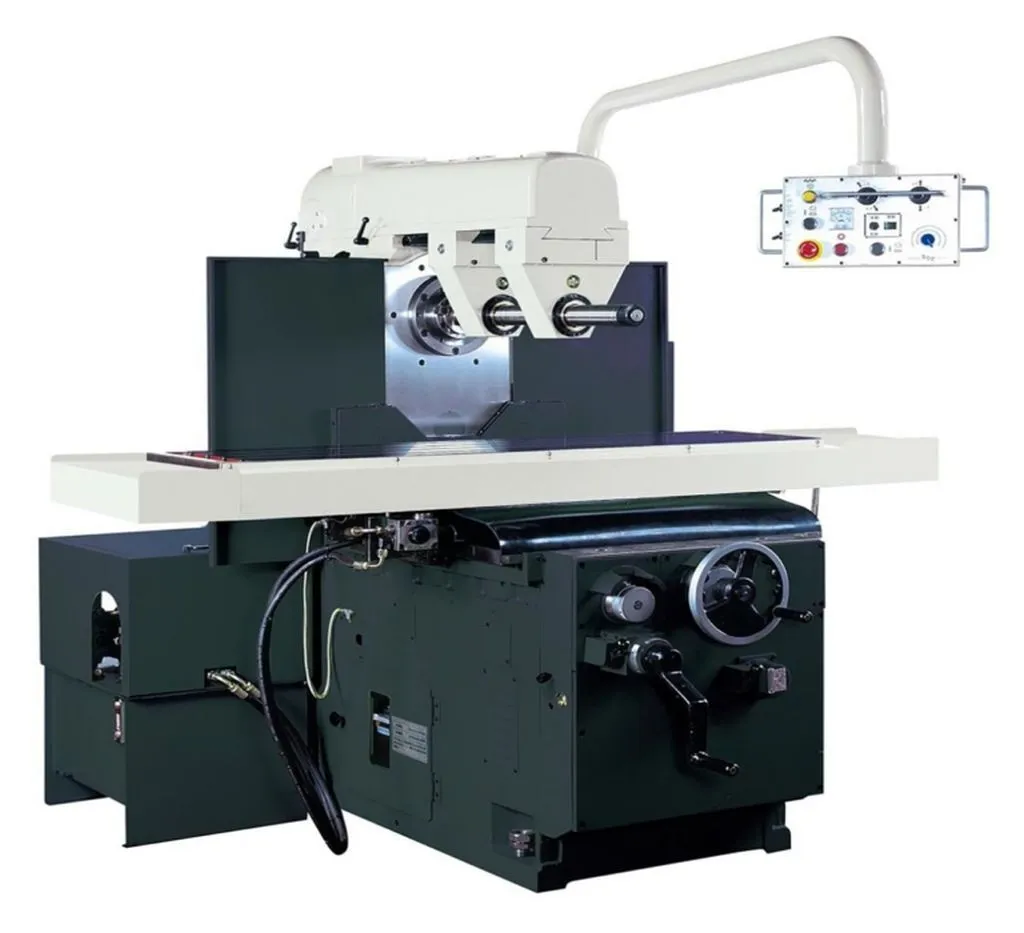

New 2025 Clausing 4HMS Horizontal Mill

Machine Style..........Horizontal Mill
Spindle Speed Control..........Step Speed
Table area..........14” x 59”
Total load capacity..........1,760 lbs.
No. of T-slots..........4
Distance between T-slots..........3.14”
T-slot size..........(.708”)
X Automatic Travel Longitude..........39.3”
X Axis Rapid Travel Rate..........78.7 ipm
X Axis Feed Rate..........(.62 – 47.2 ipm)
Y Automatic Travel Cross..........14.9”
Y Axis Rapid Travel Rate..........78.7 ipm
Y Axis Feed Rate..........(.62 – 47.2 ipm)
Z Automatic Travel Up/Dwn..........16.9”
Z Axis Rapid Travel Rate..........27.5 ipm
Z Axis Feed Rate..........(.3 – 17.7 ipm)
Spindle taper..........NT#50
Milling arbor..........1-1/4”
Number spindle speeds..........8
Spindle speed range..........95-1200 rpm
Spindle motor HP..........7.5
Longitudinal..........2 Hp
Cross Feed..........2 Hp
Vertical..........2 Hp
Cooling Pump..........1/8 Hp
Lube Pump..........4W
Net weight..........6,380 lbs.
Shipping weight..........7,090 lbs.
Machine Dimensions (L x W x H)..........80.7” x 99.8” x 82.6”
Floor Space Required..........120” x 99.8”

Machine Features:
Only Metric Measure (inch measure requires DRO option)
7.5Hp Main spindle motor
Variable Feed Speed for 3 Axis
Auto central lubricating system
High quality meehanite casting for superior rigidity and wear resistance
All gears and shafts are hardened and ground
Large 14” x 59” (360 x 1500mm) table with 4 T-slots
Extra large dovetail and dovetail slide ways for greater accuracy
Two arbor supports and One 1-1/4” arbor
All slide ways and table are hardened and ground
Turcite “B” on X/Y/Z axis ways
Automatic coolant system and coolant pump
Tool box and service tools
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
