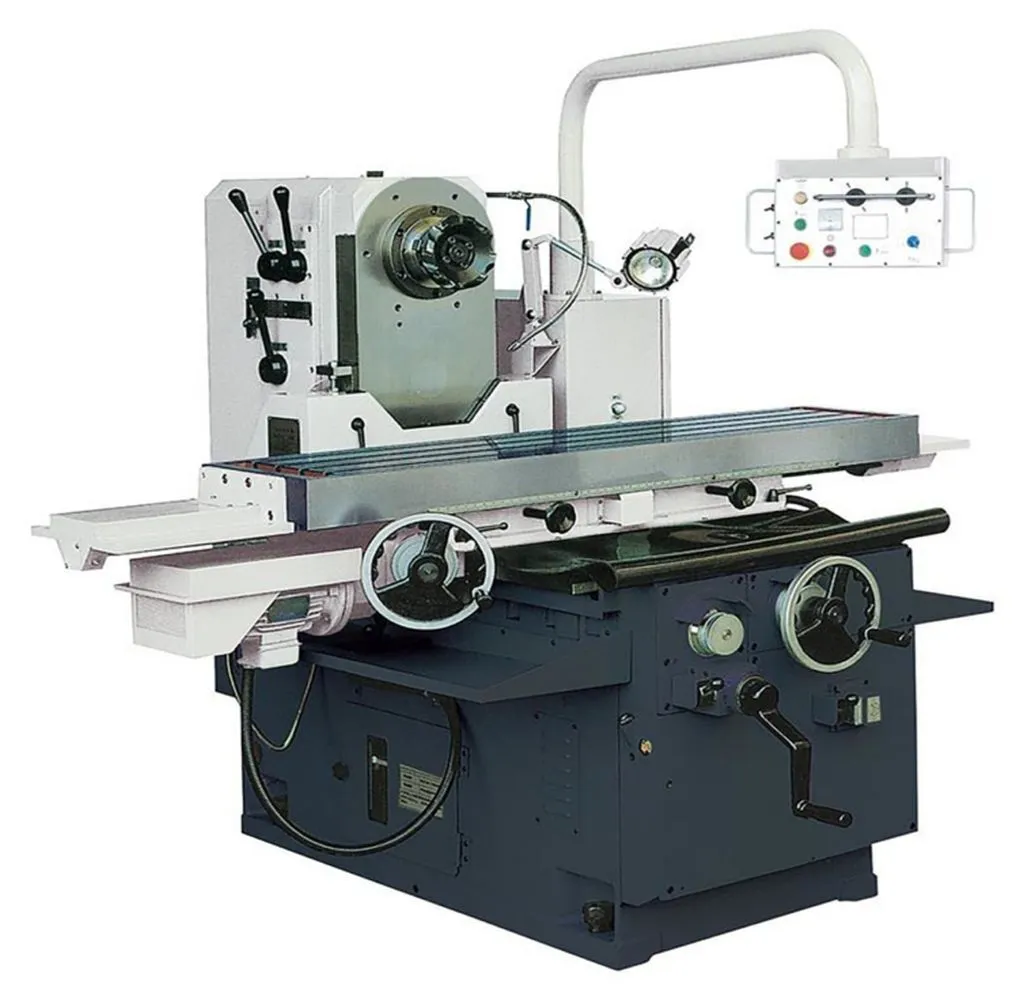

NEW 2025 Clausing 5HM Horizontal Mill

Machine Style..........Horizontal Mill
Spindle Speed Control..........Step Speed
Table area..........15.7” x 70.8”
Total load capacity..........2,200 lbs.
No. of T-slots..........4
Distance between T-slots..........3.14”
T-slot size..........(.708”)
Spindle Center to Table (horizontal)..........3.5” – 22”
X Automatic Travel Longitude..........49.2”
X Axis Rapid Travel Rate..........78.7 ipm
X Axis Feed Rate..........(.62 – 47.2 ipm)
Y Automatic Travel Cross..........21.2”
Y Axis Rapid Travel Rate..........78.7 ipm
Y Axis Feed Rate..........(.62 – 47.2 ipm)
Z Automatic Travel Up/Dwn..........18.5”
Z Axis Rapid Travel Rate..........27.5 ipm
Z Axis Feed Rate..........(.3 – 17.7 ipm)
Spindle taper..........NT#50
Milling arbor..........1”
Number spindle speeds..........8
Spindle speed range..........95-1200 rpm
Spindle motor HP..........7.5
Longitudinal..........2 Hp
Cross Feed..........2 Hp
Vertical..........2 Hp
Cooling Pump..........1/8 Hp
Lube Pump..........4W
Net weight..........6,600 lbs.
Shipping weight..........7,310 lbs.
Machine Dimensions (L x W x H)..........118.1” x 99.8” x 75.6”
Floor Space Required..........167.3” x 99.8”

Machine Features:
Only Metric Measure (inch measure requires DRO option)
7.5Hp Main spindle motor
Variable Feed Speed for 3 Axis
Auto central lubricating system
High quality meehanite casting for superior rigidity and wear resistance
All gears and shafts are hardened and ground
Large 15.7” x 70.8” (400 x 1800mm) table with 4 T-slots
Extra large dovetail and dovetail slide ways for greater accuracy
All slide ways and table are hardened and ground
Turcite “B” on X/Y/Z axis ways
Automatic coolant system and coolant pump
Tool box and service tools
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
