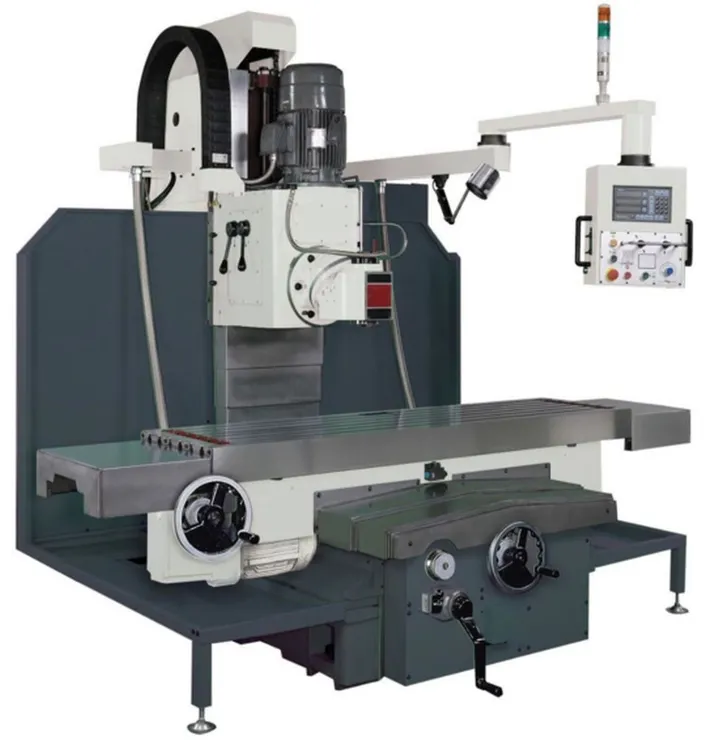

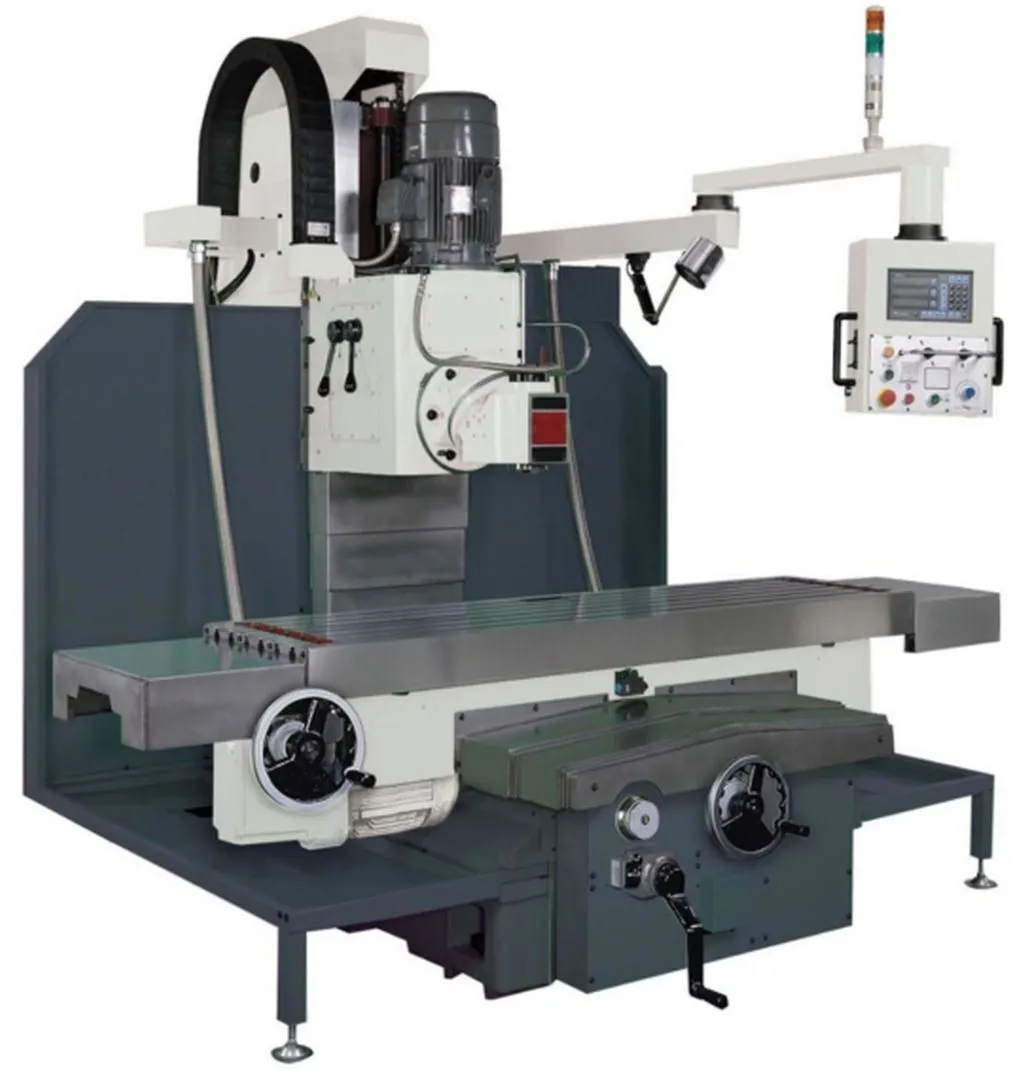

Introducing the new Clausing 6HMU Horizontal Mill: 2025 model with a 15hp spindle motor, offering 8 speeds up to 1500 RPM. Features a 21.2" x 86.6" table, 6 T-slots, and variable feed speeds on all axes. Built with high-quality Meehanite casting for durability.
Machine Style..........Horizontal Mill
Spindle Speed Control..........Step Speed
Table area..........21.2” x 86.6”
Total load capacity..........3,300 lbs.
No. of T-slots..........6
Distance between T-slots..........3.14”
T-slot size..........(.708”)
Spindle Center to Table (horizontal)..........1.96” – 29.9”
Spindle Nose to Table..........1.96” – 29.9”
X Automatic Travel Longitude..........62.9”
X Axis Rapid Travel Rate..........78.7 ipm
X Axis Feed Rate...........62 – 47.2 ipm
Y Automatic Travel Cross..........27.9”
Y Axis Rapid Travel Rate..........78.7 ipm
Y Axis Feed Rate..........(.62 – 47.2 ipm)
Spindle taper..........NT#50
Milling arbor..........1”
Number spindle speeds..........8
Spindle speed range..........120-1500 rpm
Spindle motor HP..........15
Z Automatic Travel Up/Dwn..........27.9”
Z Axis Rapid Travel Rate..........27.5 ipm
Z Axis Feed Rate..........(.3 – 17.7 ipm)
Spindle Center to Column (vertical)..........29.5”
Spindle Nose to Column Front (horizontal)..........29.5”
Longitudinal..........3 Hp
Cross Feed..........3 Hp
Vertical..........3 Hp
Cooling Pump..........1/4 Hp
Lube Pump..........4W
Net weight..........14,300 lbs.
Shipping weight..........15,800 lbs.
Machine Dimensions (L x W x H)..........112” x 121” x 106.3”
Floor Space Required..........112.2” x 201”
Machine Features:
Angle head For vertical angle cutting
Only Metric Measure (inch measure requires DRO option)
15Hp Main spindle motor
8 Step Speed 110, 165, 240, 360, 470, 700, 1020, 1500 rpm
Variable Feed Speed for 3 Axis
X/Y/Z Ballscrews
Auto central lubricating system
High quality meehanite casting for superior rigidity and wear resistance
All gears and shafts are hardened and ground
Large 21.2” x 86.6” (540 x 2200mm) table with 6 T-slots
Extra large dovetail and dovetail slide ways for greater accuracy
All slide ways and table are hardened and ground
Turcite “B” on X/Y/Z axis ways
Automatic coolant system and coolant pump
Tool box and service tools
A one year warranty backed by Clausing Service Center dedicated to support our customers with parts and service
