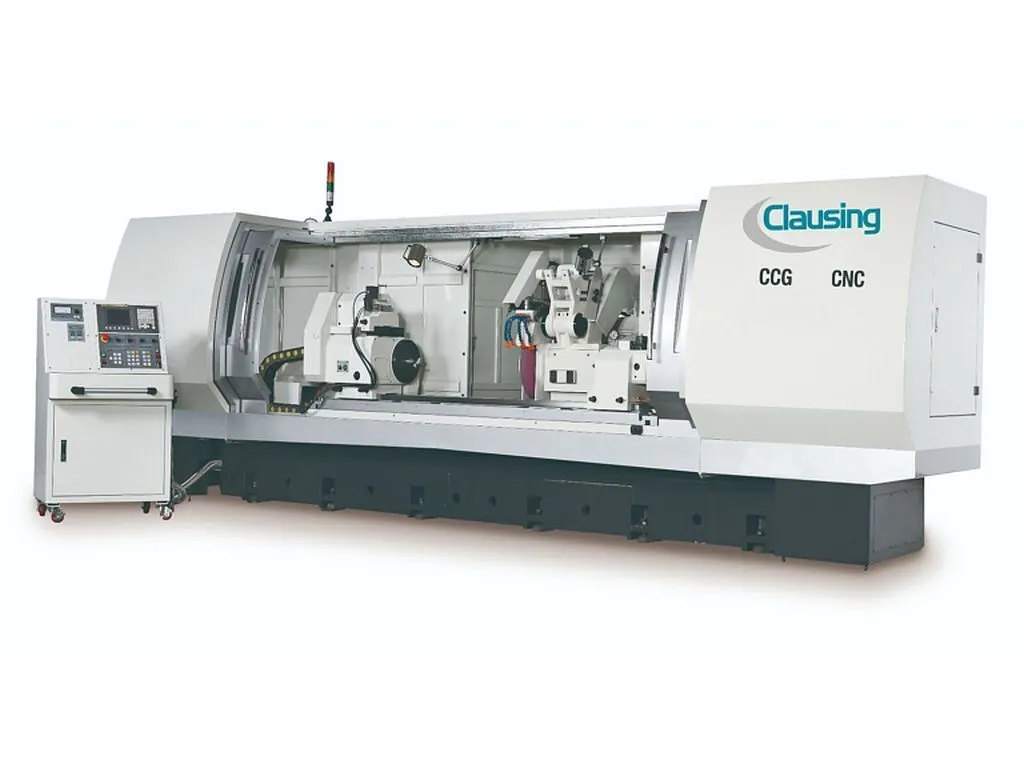

New 2025 Clausing CCG1860CNC 18" x 60" Fanuc CNC Control, Precision Cylindrical Grinder

Machine Style.......... CNC Control
Distance Between Centers (inch).......... 59
Swing Over Table (inch).......... 17.7
Maximum Load of Centers (lbs.).......... 1,760
Maximum External Grinding Diameter (inch).......... 17.7
Wheel Head Auto Rapid Advance (in/min)..........157
Wheel Head Feed Rate (in/min).......... (0.0000393 – 78.7)
Wheel Head Maximum Moveable Distance (inch).......... 13.77
Wheel Head Z-Axis Auto Rapid Advance (in/min).......... 157
Wheel Head Z-Axis Feed Rate (in/min).......... (0.0000393 – 78.7)
Wheel Head Z-Axis Maximum Moveable Distance (inch).......... 53.1
Grinding Wheel OD x W x ID (inch).......... 20 x 1.96 x 4.9(6” bore opt)
Grinding Wheel Speeds (belt-type rpm).......... 1236
Linear Velocity (in/min).......... 1299
Work Spindle Head Swivel Angle.......... –
Work Spindle Head Center Taper.......... 5MT
Work Spindle Head Spindle Speeds Variable (rpm).......... 0 – 350
Tailstock Center Taper.......... 5MT
Tailstock Quill Stroke (inch).......... 2.3
Table Swivel Angle.......... -1 to +7 degrees
Table Traverse Speed (in/min).......... 157
Minimum Input Increment.......... 0.0000393
Wheel Spindle Horsepower..........15
Work Head Spindle AC Servo Horsepower.......... 4
Wheel Head Feed X-Axis AC Servo Motor Horsepower.......... 3-3/4
Wheel Head Feed Z-Axis AC Servo Motor Horsepower.......... 5
Hydraulic Pump Horsepower.......... 1
Wheel Spindle Lubrication Pump Horsepower.......... ½
Coolant Pump Horsepower.......... ¼
Optional Internal Grinding Spindle Horsepower.......... 2
Wheel Spindle Lube Tank Capacity (liters).......... 30
Lubrication Oil Tank (liters).......... 63
Hydraulic Fluid Tank Capacity (for optional accessory) (liters).......... 10
Coolant Tank Capacity (liters).......... 120
Machine Weight (lbs.).......... 26,400
Shipping Weight (lbs.).......... 29,876
Floor Dimensions W x D x H (inch).......... 239 x 166 x 95
Work Height (inch)..........39.37
Shipping Dimensions W x D x H (ft).......... 21.5 x 7.5 x 7.4

Machine Features:

• Fanuc Oi full CNC control
• Distance between centers 59”
• Swing over table is 17.7”
• Maximum grinding diameter is 17.7”
• Inverter control head speed 0 – 350 rpm
• G.W. Soft start motor
• General purpose grinding wheel
• Grinding wheel speed 1236 rpm belt drive
• Linear scale X-Axis
• Table mounted wheel dresser
• Coolant system
• Hydraulic Tank with oil cooler
• Carbide tipped work centers
• Work light
• Semi Enclosed splash guards
• Optional internal grinding attachment
• Optional fully enclosed splash guard
• Toolbox and tools
• 1 year limited warranty
