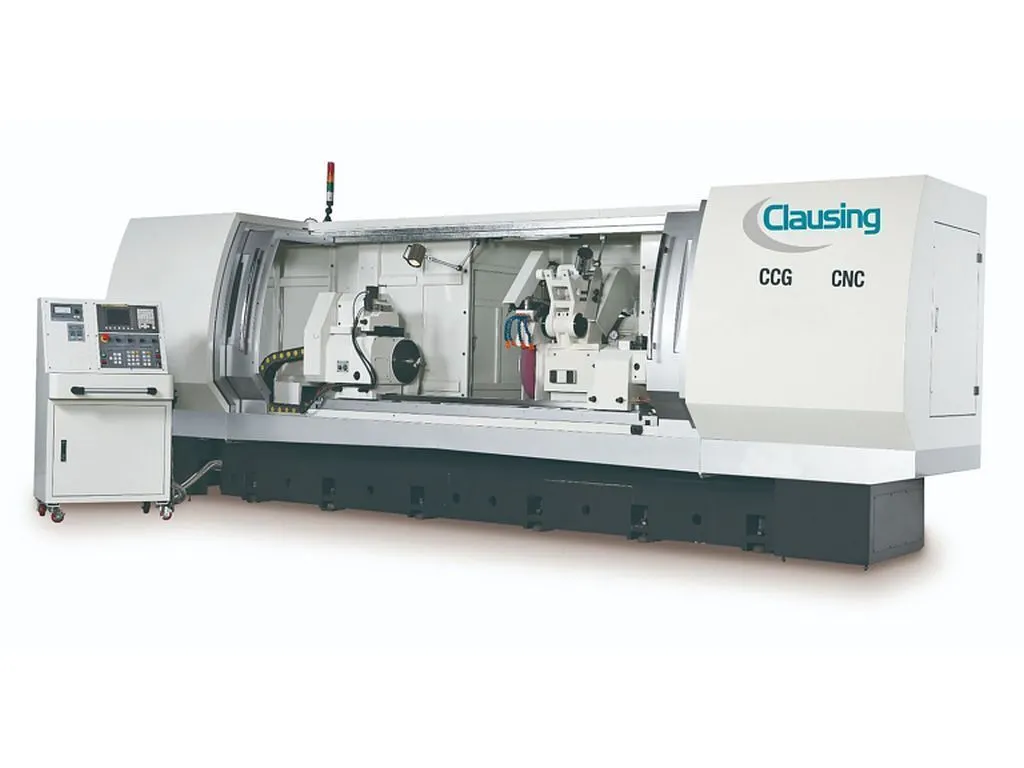

New 2025 Clausing CCG2560CNC 25" x 60" Fanuc CNC Control, Precision Cylindrical Grinder
Have one to sell?
ConditionNew
New
Experience precision with the new 2025 Clausing CCG2560CNC Grinder. Equipped with Fanuc CNC control, it offers a 25.59" swing, 59" centers, and 15 hp wheel power. Max grinding diameter is 24.4" with 350 RPM speed, compact at 239"x166"x95". Max workpiece weight: 4,400 lbs. Total weight: 29,876 lbs.
Machine Style.......... CNC Control
Distance Between Centers (inch).......... 59
Swing Over Table (inch).......... 25.59
Maximum Load of Centers (lbs.).......... 4,400
Maximum External Grinding Diameter (inch).......... 24.4
Wheel Head Auto Rapid Advance (in/min).......... 157
Wheel Head Feed Rate (in/min).......... 0.0000393 – 78.7
Wheel Head Maximum Moveable Distance (inch).......... 13.77
Wheel Head Z-Axis Auto Rapid Advance (in/min).......... 157
Wheel Head Z-Axis Feed Rate (in/min).......... 0.0000393 – 78.7
Wheel Head Z-Axis Maximum Moveable Distance (inch).......... 77.5
Grinding Wheel OD x W x ID (inch).......... 20 x 1.96 x 4.9(6” bore opt)
Grinding Wheel Speeds (belt-type rpm).......... 1236
Linear Velocity (in/min).......... 1299
Work Spindle Head Swivel Angle.......... –
Work Spindle Head Center Taper.......... 5MT
Work Spindle Head Spindle Speeds Variable (rpm).......... 0 – 350
Tailstock Center Taper.......... 5MT
Tailstock Quill Stroke (inch).......... 2.3
Table Swivel Angle.......... -1 to +7 degrees
Table Traverse Speed (in/min).......... 157
Minimum Input Increment.......... 0.0000393
Wheel Spindle Horsepower.......... 15
Work Head Spindle AC Servo Horsepower.......... 4
Wheel Head Feed X-Axis AC Servo Motor Horsepower.......... 3-3/4
Wheel Head Feed Z-Axis AC Servo Motor Horsepower.......... 5
Hydraulic Pump Horsepower.......... 1
Wheel Spindle Lubrication Pump Horsepower..........½
Coolant Pump Horsepower.......... ¼
Optional Internal Grinding Spindle Horsepower.......... 2
Wheel Spindle Lube Tank Capacity (liters).......... 30
Lubrication Oil Tank (liters).......... 63
Hydraulic Fluid Tank Capacity (for optional accessory) (liters).......... 10
Coolant Tank Capacity (liters).......... 120
Machine Weight (lbs.).......... 26,400
Shipping Weight (lbs.).......... 29,876
Floor Dimensions W x D x H (inch).......... 239 x 166 x 95
Work Height (inch).......... 39.37
Shipping Dimensions W x D x H (ft).......... 21.5 x 7.5 x 7.4
Machine Features:
• Fanuc Oi full CNC control
• Distance between centers 59”
• Swing over table is 25.59”
• Maximum grinding diameter is 24.4”
• Inverter control head speed 0 – 350 rpm
• G.W. Soft start motor
• General purpose grinding wheel
• Grinding wheel speed 1236 rpm belt drive
• Linear scale X-Axis
• Table mounted wheel dresser
• Coolant system
• Hydraulic Tank with oil cooler
• Carbide tipped work centers
• Work light
• Semi Enclosed splash guards
• Optional internal grinding attachment
• Optional fully enclosed splash guard
• Toolbox and tools
• 1 year limited warranty
Experience precision with the new 2025 Clausing CCG2560CNC Grinder. Equipped with Fanuc CNC control, it offers a 25.59" swing, 59" centers, and 15 hp wheel power. Max grinding diameter is 24.4" with 350 RPM speed, compact at 239"x166"x95". Max workpiece weight: 4,400 lbs. Total weight: 29,876 lbs.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Features and Benefits:
Clausing Industrial Inc. high precision cylinder grinders are unmatched in structural rigidity and stability, grinding accuracy and operational convenience. Each machine provides maximum operational flexibility thereby allowing for various grinding operations. You will get extra value when putting Clausing cylinder grinders on your production line. Fanuc Oi CNC controller for easy automated operation.
The grinding wheel spindle is precision machined from high quality SNCM220 alloy steel normalized and tempered, carburized and sub-zero treated, precision ground and mirror-effect treated to over HRC62 hardness. The wheel spindle runs by using special hydrostatic bearing and is especially ideal for precision work. It features high speed no friction between metals, no heat generation deformation-free producing extra high accuracy for continual use.
Advanced hydrostatic lubrication system for the slideways of the table and wheel head lubricate the ways with an automatic lubrication system to provide extremely smooth movement and superior grinding accuracy.
The optional internal grinding attachment allows the operator to grind inside tubing or bearing races quickly and easily.
Imperial
| Swing | 25.59" |
| Centers | 59" |
| Grinding Wheel Dia. | 1.96" |
| Wheel Power | 15 hp |
| Wheel Speed | 350 RPM |
| Control | CNC (Fanuc Oi Control) |
| Dimensions | 239 x 166 x 95 |
| Weight | 26,400 |
Machine Style.......... CNC Control
Distance Between Centers (inch).......... 59
Swing Over Table (inch).......... 25.59
Maximum Load of Centers (lbs.).......... 4,400
Maximum External Grinding Diameter (inch).......... 24.4
Wheel Head Auto Rapid Advance (in/min).......... 157
Wheel Head Feed Rate (in/min).......... 0.0000393 – 78.7
Wheel Head Maximum Moveable Distance (inch).......... 13.77
Wheel Head Z-Axis Auto Rapid Advance (in/min).......... 157
Wheel Head Z-Axis Feed Rate (in/min).......... 0.0000393 – 78.7
Wheel Head Z-Axis Maximum Moveable Distance (inch).......... 77.5
Grinding Wheel OD x W x ID (inch).......... 20 x 1.96 x 4.9(6” bore opt)
Grinding Wheel Speeds (belt-type rpm).......... 1236
Linear Velocity (in/min).......... 1299
Work Spindle Head Swivel Angle.......... –
Work Spindle Head Center Taper.......... 5MT
Work Spindle Head Spindle Speeds Variable (rpm).......... 0 – 350
Tailstock Center Taper.......... 5MT
Tailstock Quill Stroke (inch).......... 2.3
Table Swivel Angle.......... -1 to +7 degrees
Table Traverse Speed (in/min).......... 157
Minimum Input Increment.......... 0.0000393
Wheel Spindle Horsepower.......... 15
Work Head Spindle AC Servo Horsepower.......... 4
Wheel Head Feed X-Axis AC Servo Motor Horsepower.......... 3-3/4
Wheel Head Feed Z-Axis AC Servo Motor Horsepower.......... 5
Hydraulic Pump Horsepower.......... 1
Wheel Spindle Lubrication Pump Horsepower..........½
Coolant Pump Horsepower.......... ¼
Optional Internal Grinding Spindle Horsepower.......... 2
Wheel Spindle Lube Tank Capacity (liters).......... 30
Lubrication Oil Tank (liters).......... 63
Hydraulic Fluid Tank Capacity (for optional accessory) (liters).......... 10
Coolant Tank Capacity (liters).......... 120
Machine Weight (lbs.).......... 26,400
Shipping Weight (lbs.).......... 29,876
Floor Dimensions W x D x H (inch).......... 239 x 166 x 95
Work Height (inch).......... 39.37
Shipping Dimensions W x D x H (ft).......... 21.5 x 7.5 x 7.4
Machine Features:
• Fanuc Oi full CNC control
• Distance between centers 59”
• Swing over table is 25.59”
• Maximum grinding diameter is 24.4”
• Inverter control head speed 0 – 350 rpm
• G.W. Soft start motor
• General purpose grinding wheel
• Grinding wheel speed 1236 rpm belt drive
• Linear scale X-Axis
• Table mounted wheel dresser
• Coolant system
• Hydraulic Tank with oil cooler
• Carbide tipped work centers
• Work light
• Semi Enclosed splash guards
• Optional internal grinding attachment
• Optional fully enclosed splash guard
• Toolbox and tools
• 1 year limited warranty
