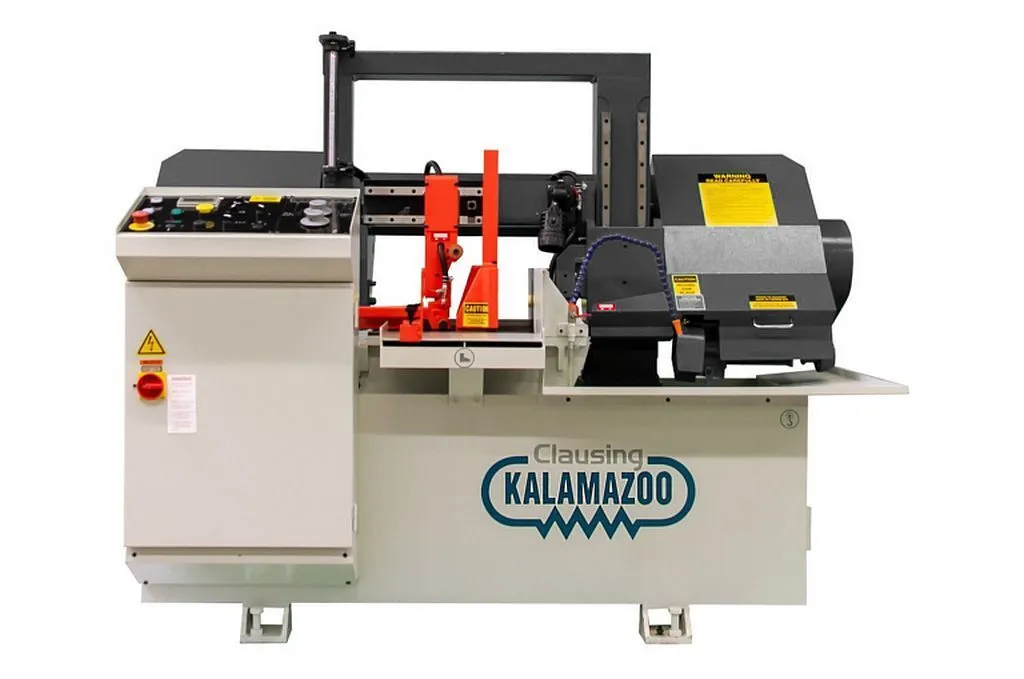

New Clausing Kalamazoo H1013SA Double Column Semi-Automatic Horizontal Bandsaw "In Stock Now"
Have one to sell?
ConditionNew
1 available
New
Introducing the new Clausing Kalamazoo H1013SA Horizontal Bandsaw. Features include a twin column design, 5 HP motor, and a 10.2" x 13.4" cutting capacity. Enjoy precision with hydraulic blade tensioning and integrated coolant system. Perfect for industrial use.
Specifications:
• Machine Style..........Semi-Automatic
• Drive Type..........Infinitely Variable Speed
• *Motor..........5 Hp, *230v 3 Ph
• Hydraulic Pump Motor..........1 Hp
• Hydraulic Oil Capacity..........6.6 gallons
• Blade Speeds (Variable speed)..........49-262 fpm
• Blade Size (W x T x L)..........1.25” x 0.042” x 161”
• Blade Tension..........Hydraulic
• Coolant Recirculating..........1/8 Hp
• Coolant Capacity..........10.57 gallons
• 90° Cutting Capacity:
- Round..........10.2”
- Square..........10.2”
- Rectangular..........10.2” x 13.4”
• Length..........47”
• Width..........78”
• Height..........61”
• Bed Height..........31.1”
• Net Weight..........2,100 lbs.
• Shipping Weight..........2,500 lbs.
Machine Features:
• Twin column design ensures rigid support during cutting cycle by
• keeping the blade parallel and square to the work piece
• Infinitely variable speed
• Digital blade speed indicator
• Hydraulic powered chip conveyor
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• LCD digital blade speed monitor
• Precision feed pressure & feed rate
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
Introducing the new Clausing Kalamazoo H1013SA Horizontal Bandsaw. Features include a twin column design, 5 HP motor, and a 10.2" x 13.4" cutting capacity. Enjoy precision with hydraulic blade tensioning and integrated coolant system. Perfect for industrial use.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
This Semi-automatic Double Column Horizontal Bandsaw is designed for rugged production use, and it offers high production output and heavy-duty performance in Semi-automatic operation. Voltage specific model, at either 230 or 460, other voltages may require a transformer or special order.
Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 10.2" |
| Rect-Cap (W) | 13.4" |
| Rounds-Cap | 10.2" |
| Square-Cap | 10.2" |
| Power | 5 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 1.25" |
| Blade Thickness | 0.042" |
| Blade Length | 161" |
| Dimensions | 47" x 78" x 61" |
| Weight | 2,100Lbs |
Specifications:
• Machine Style..........Semi-Automatic
• Drive Type..........Infinitely Variable Speed
• *Motor..........5 Hp, *230v 3 Ph
• Hydraulic Pump Motor..........1 Hp
• Hydraulic Oil Capacity..........6.6 gallons
• Blade Speeds (Variable speed)..........49-262 fpm
• Blade Size (W x T x L)..........1.25” x 0.042” x 161”
• Blade Tension..........Hydraulic
• Coolant Recirculating..........1/8 Hp
• Coolant Capacity..........10.57 gallons
• 90° Cutting Capacity:
- Round..........10.2”
- Square..........10.2”
- Rectangular..........10.2” x 13.4”
• Length..........47”
• Width..........78”
• Height..........61”
• Bed Height..........31.1”
• Net Weight..........2,100 lbs.
• Shipping Weight..........2,500 lbs.
Machine Features:
• Twin column design ensures rigid support during cutting cycle by
• keeping the blade parallel and square to the work piece
• Infinitely variable speed
• Digital blade speed indicator
• Hydraulic powered chip conveyor
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• LCD digital blade speed monitor
• Precision feed pressure & feed rate
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
