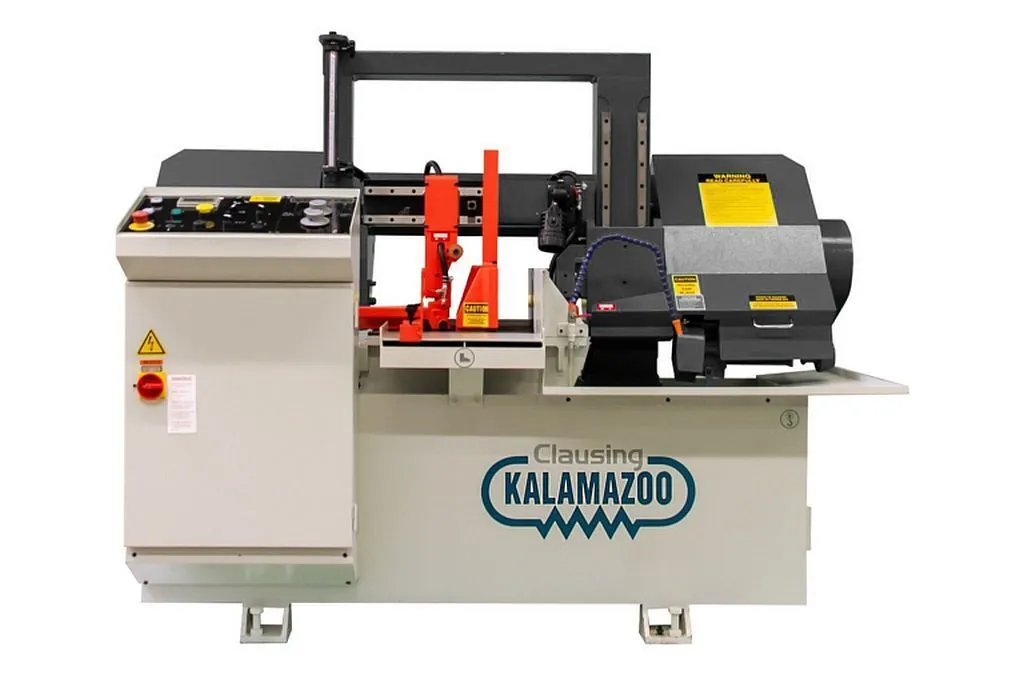

New 2025 Clausing Kalamazoo H1251SA Double column semi-automatic horizontal bandsaw 12.2" x 51" max rectangular capacity
Have one to sell?
ConditionNew
New
Introducing the new 2025 Clausing Kalamazoo H1251SA: a robust semi-automatic horizontal bandsaw. With 12.2" x 51" max rectangular capacity, 5 hp power, and variable speed control, it offers precision and reliability for demanding cutting tasks.
Machine Style.................. Semi-Automatic
Drive Type..................... Infinitely Variable Speed
*Motor......................... 5 Hp, *230v 3 Ph
Hydraulic Pump Motor........... 1 Hp
Hydraulic Oil Capacity Approx. 6.2 gallons
Blade Speeds (Variable speed).. 50-264 fpm
Blade Size (W x T x L)......... 1.25” x 0.042” x 244”
Blade Tension.................. Hydraulic
Coolant Recirculating.......... 1/8 Hp
Coolant Capacity Approx. 11.2 gallons
90° Cutting Capacity
Round ........ 12.2”
Square........ 12.2”
Rectangular... 12.2” x 51”
Length.......... 132”
Width........... 57”
Height.......... 79”
Bed Height...... 27.6”
Net Weight (approx.)........... 3,300 lbs.
Shipping Weight (approx.)...... 4,100 lbs.
Machine Features:
• Twin column design ensures rigid support during cutting
• cycle by keeping the blade parallel and square to the work piece
• Infinitely inverter variable speed
• Digital blade speed indicator
• Optional Hydraulic powered chip conveyor
• Carbide blade guides with roller bearings offer pre-twist before entering the blade guides
• Two additional guides to support the blade from the top giving extra penetrating force
• Automatic hydraulic blade tensioning device adds tension when saw is powered on and turns off with saw extending blade life
• Power driven blade brushes
• Integral coolant system with flushing hose for wire brush and machine cleaning
• Self-lubricating carbide blade guides and guide roller utilizing grooved guides for coolant entry
• Precision feed pressure & feed rate
• Cast iron vises with replaceable hardened wear plates on front set of vises
• Blade slippage or breakage detection
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
Introducing the new 2025 Clausing Kalamazoo H1251SA: a robust semi-automatic horizontal bandsaw. With 12.2" x 51" max rectangular capacity, 5 hp power, and variable speed control, it offers precision and reliability for demanding cutting tasks.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
Grate Cutting – With a cutting capacity of 51” wide x 12.2” high gantry type structure, this Double Column Semi-Automatic Horizontal Bandsaw is specially designed to cut drain covers, grating, hollow plates, and wide plates of metal or non-metal material. H1251SA comes with two sets of full stroke hydraulic vises one. One before and one behind the blade to hold the material tightly, enabling smooth and stable cutting even for wide grates and plates. The rugged saw frame travels vertically through two large precision ground columns. The cross link connecting the two column forms an archway design, giving it strong structural strength.
Imperial
| Rect-Cap (H) | 12.2" |
| Rect-Cap (W) | 51" |
| Rounds-Cap | 12.2" |
| Square-Cap | 12.2" |
| Power | 5 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 1.25" |
| Blade Thickness | 0.042" |
| Blade Length | 244" |
| Dimensions | 132 x 57 x 79 |
| Weight | 3300 lbs |
Machine Style.................. Semi-Automatic
Drive Type..................... Infinitely Variable Speed
*Motor......................... 5 Hp, *230v 3 Ph
Hydraulic Pump Motor........... 1 Hp
Hydraulic Oil Capacity Approx. 6.2 gallons
Blade Speeds (Variable speed).. 50-264 fpm
Blade Size (W x T x L)......... 1.25” x 0.042” x 244”
Blade Tension.................. Hydraulic
Coolant Recirculating.......... 1/8 Hp
Coolant Capacity Approx. 11.2 gallons
90° Cutting Capacity
Round ........ 12.2”
Square........ 12.2”
Rectangular... 12.2” x 51”
Length.......... 132”
Width........... 57”
Height.......... 79”
Bed Height...... 27.6”
Net Weight (approx.)........... 3,300 lbs.
Shipping Weight (approx.)...... 4,100 lbs.
Machine Features:
• Twin column design ensures rigid support during cutting
• cycle by keeping the blade parallel and square to the work piece
• Infinitely inverter variable speed
• Digital blade speed indicator
• Optional Hydraulic powered chip conveyor
• Carbide blade guides with roller bearings offer pre-twist before entering the blade guides
• Two additional guides to support the blade from the top giving extra penetrating force
• Automatic hydraulic blade tensioning device adds tension when saw is powered on and turns off with saw extending blade life
• Power driven blade brushes
• Integral coolant system with flushing hose for wire brush and machine cleaning
• Self-lubricating carbide blade guides and guide roller utilizing grooved guides for coolant entry
• Precision feed pressure & feed rate
• Cast iron vises with replaceable hardened wear plates on front set of vises
• Blade slippage or breakage detection
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
