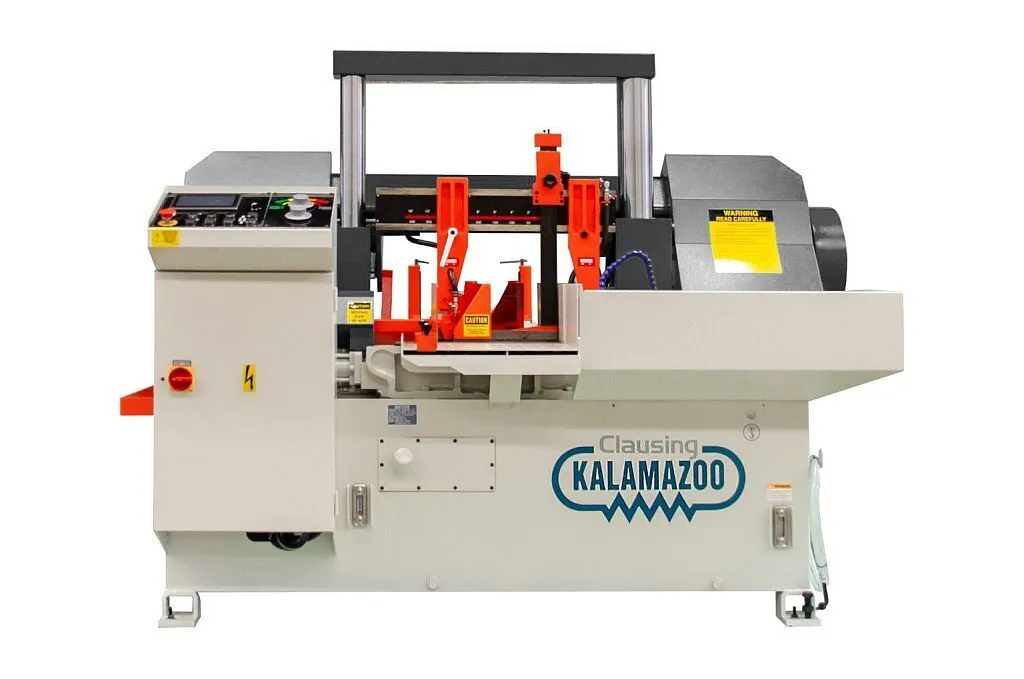

New 2025 Clausing Kalamazoo H1315NC Double Column Automatic Horizontal Bandsaw "In Stock Now"

Specifications:
• Machine Style..........Automatic
• Drive Type..........Inverter Controlled Variable Speed
• *Motor..........5 Hp, 230 3 Ph
• Hydraulic Pump Motor..........1 Hp
• Hydraulic Oil Capacity..........6.6 gallons
• Blade Speeds (Variable speed)..........49-262 fpm
• Blade Size (W x T x L)..........1.25” x .042” x 166.9”
• Blade Tension..........Hydraulic
• Coolant..........Recirculating
• Coolant Capacity..........11.9 gallons
• 90° Cutting Capacity
- Round..........12.6”
- Square..........12.6”
- Rectangular..........15” x 12.6”
• Bundle Cutting Width (Optional)..........7.48” x 11.81”
• Bundle Cutting Height (Optional)..........2.75” to 5.51”
• Feed Length/Index..........15.86”
• Max. Feed..........255.9”
• Length..........79.13”
• Width..........78.75”
• Height..........70.3”
• Bed Height..........31.1”
• Net Weight..........3,509 lbs.
• Shipping Weight..........3,766 lbs.

Machine Features:
• Oversized hydraulic cylinder
• Twin column design ensures rigid support during cutting cycle
• Hydraulic shuttle vice assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed,
• blade life, feed vise position and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
