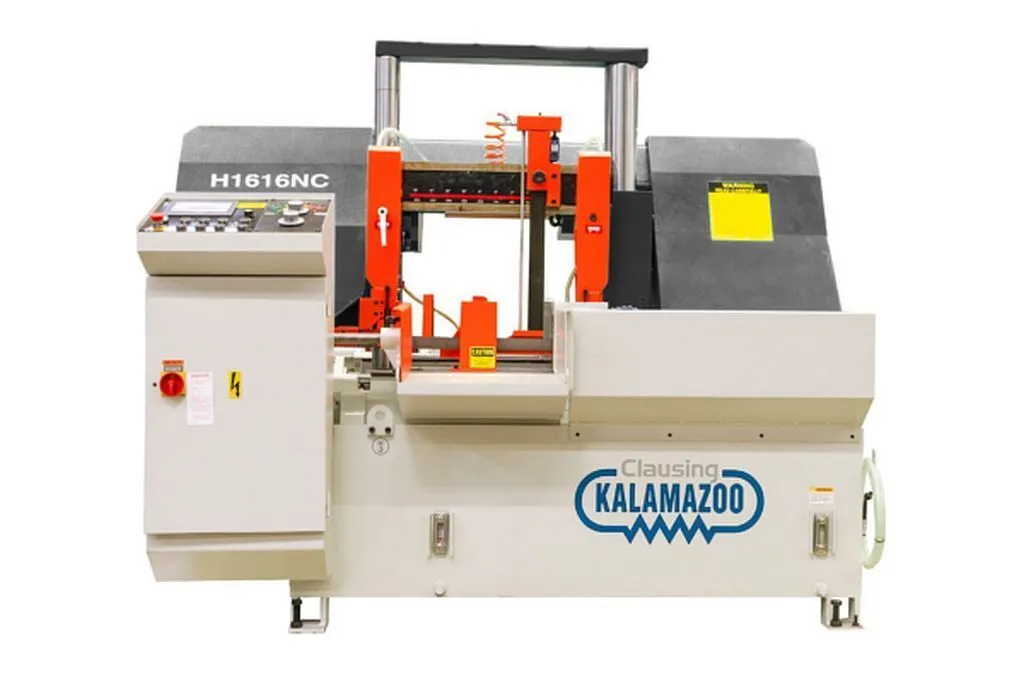

New Clausing Kalamazoo H1616NC Double Column Automatic Horizontal Bandsaw "In Stock Now"
Have one to sell?
ConditionNew
1 available
New
Discover the new Clausing Kalamazoo H1616NC Automatic Horizontal Bandsaw. Cut with precision using its 16.5" capacity, 7.5 HP motor, and inverter-controlled speed. Smart NC-100 technology supports 100 job programs, ensuring efficiency in every task.
Specifications:
• Machine Style..........Automatic
• Drive Type..........Inverter Controlled Variable Speed
• *Motor..........7.5 Hp, 230v 3 Ph
• Hydraulic Pump Motor..........2 Hp
• Hydraulic Oil Capacity..........10.5 gallons
• Blade Speeds (Variable speed)..........57-378 fpm
• Blade Size (W x T x L)..........1.5” x .05” x 187.8”
• Blade Tension..........Hydraulic
• Coolant..........Recirculating
• Coolant Capacity..........22.5 gallons
• 90° Cutting Capacity
• - Round....... 16.5”
• - Square...... 16.5”
• - Rectangular 16.5” x 16.5”
• Bundle Cutting Width (Optional)..........7.48” x 14.17”
• Bundle Cutting Height (Optional)..........3.94” to 7.04”
• Feed Length/Index..........19.8”
• Max. Feed..........255.9”
• Length..........110.4”
• Width..........100.8”
• Height..........74.4”
• Bed Height..........28.5”
• Net Weight..........4,673 lbs.
• Shipping Weight..........4,901 lbs.
Machine Features:
• Oversized hydraulic cylinder
• Twin column design ensures rigid support during cutting cycle
• Hydraulic shuttle vice assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed,
• blade life, feed vise position and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
Discover the new Clausing Kalamazoo H1616NC Automatic Horizontal Bandsaw. Cut with precision using its 16.5" capacity, 7.5 HP motor, and inverter-controlled speed. Smart NC-100 technology supports 100 job programs, ensuring efficiency in every task.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
This Double Column Automatic Horizontal Bandsaw is designed for rugged production use, and it offers high production output and heavy-duty performance in fully automatic operation. Voltage specific model, at either 230 or 460, may require a transformer or special order.
A powerful drive motor provides the power, and the Smart NC-100 technology programmable up to 100 different jobs.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Why Choose T.R. Wigglesworth Machinery Company?
With over 90 years of experience, T.R. Wigglesworth Machinery Company is a trusted supplier of high-performance Boring Mills, Grinding Machines, Turning CNC Machines, Drilling Machines, and precision tooling accessories. We specialize in delivering the right equipment for your application at fair prices, backed by a team that understands machines inside and out. Whether you're upgrading a single piece of equipment or outfitting an entire facility, T.R. Wigglesworth Machinery Company offers personalized service, expert advice, and access to some of the most respected machine tool brands in the world.
Imperial
| Rect-Cap (H) | 16.5" |
| Rect-Cap (W) | 16.5" |
| Rounds-Cap | 16.5" |
| Square-Cap | 16.5" |
| Power | 7.5 hp |
| Type (Auto, Manual, Semi) | Auto |
| Blade Width | 1.5" |
| Blade Thickness | 0.05" |
| Blade Length | 187.8" |
| Dimensions | 110.4" x 100.8" x 74.4" |
| Weight | 4,673Lbs. |
Specifications:
• Machine Style..........Automatic
• Drive Type..........Inverter Controlled Variable Speed
• *Motor..........7.5 Hp, 230v 3 Ph
• Hydraulic Pump Motor..........2 Hp
• Hydraulic Oil Capacity..........10.5 gallons
• Blade Speeds (Variable speed)..........57-378 fpm
• Blade Size (W x T x L)..........1.5” x .05” x 187.8”
• Blade Tension..........Hydraulic
• Coolant..........Recirculating
• Coolant Capacity..........22.5 gallons
• 90° Cutting Capacity
• - Round....... 16.5”
• - Square...... 16.5”
• - Rectangular 16.5” x 16.5”
• Bundle Cutting Width (Optional)..........7.48” x 14.17”
• Bundle Cutting Height (Optional)..........3.94” to 7.04”
• Feed Length/Index..........19.8”
• Max. Feed..........255.9”
• Length..........110.4”
• Width..........100.8”
• Height..........74.4”
• Bed Height..........28.5”
• Net Weight..........4,673 lbs.
• Shipping Weight..........4,901 lbs.
Machine Features:
• Oversized hydraulic cylinder
• Twin column design ensures rigid support during cutting cycle
• Hydraulic shuttle vice assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed,
• blade life, feed vise position and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
