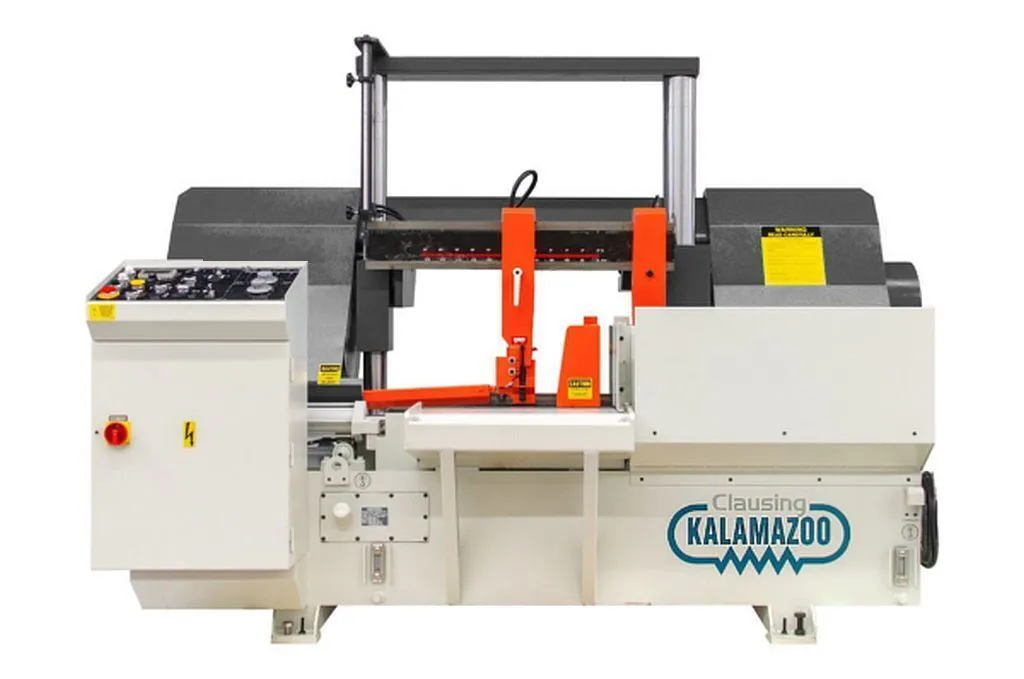

New 2025 Clausing Kalamazoo H1628SA Double Column Semi-Automatic Horizontal Bandsaw 13.8” x 27.5” Max Rectangular Capacity

Machine Style.......... Semi-Automatic
Drive Type............. Infinitely Variable Speed
*Motor................. 7.5 Hp, *230v 3 Ph
Hydraulic Pump Motor... 1 Hp
Hydraulic Oil Capacity 13 gallons
Blade Speeds (Variable speed).......... 66-328 fpm
Blade Size (W x T x L)................. 1.5” x .050” x 215”
Blade Tension.......... Hydraulic
Coolant Recirculating
Coolant Capacity....... 10.4 gallons
90° Cutting Capacity
Round................ 16.5”
Square............... 16.5”
Rectangular (H x W).. 13.8” x 27.6”
Length................. 47”
Width.................. 108”
Height................. 84.2”
Bed Height............. 27.5”
Net Weight............. 4,400 lbs.
Shipping Weight........ 4,720 lbs.

Machine Features:
• Twin column design ensures rigid support during cutting cycle
• by keeping the blade parallel and square to the work piece
• Infinitely variable speed
• Digital blade speed indicator
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Automatic shutoff at end of material or after preset number of cuts
• Precision feed pressure & feed rate
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
