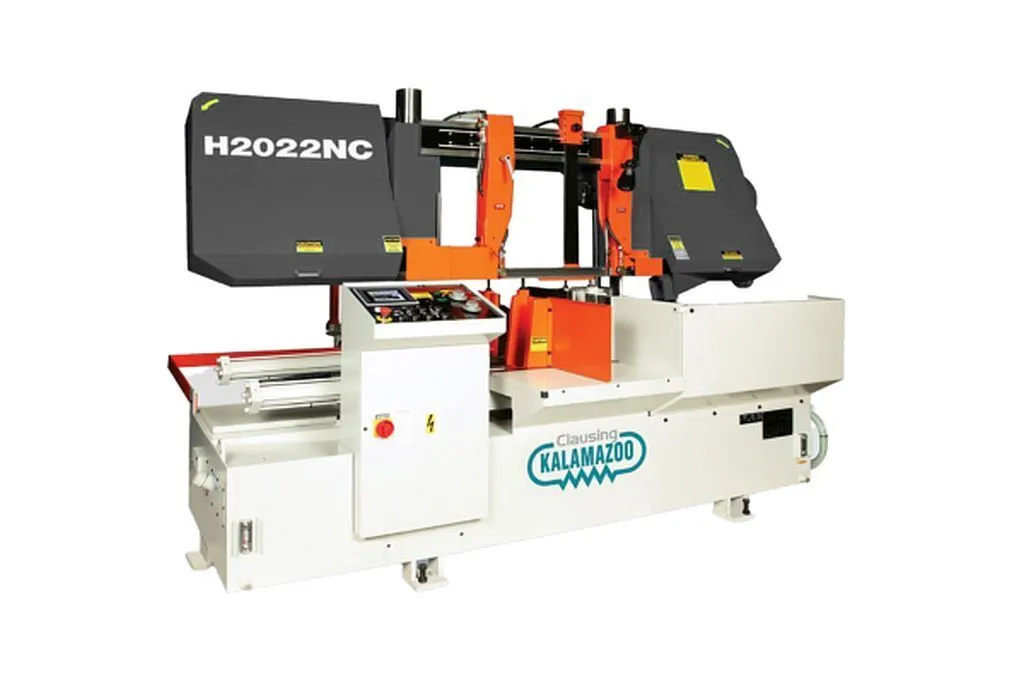

New 2025 Clausing Kalamazoo H2022NC Double Column Fully Automatic Horizontal Bandsaw 22” x 20.5” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Introducing the new 2025 Clausing Kalamazoo H2022NC, a fully automatic 22" x 20.5" horizontal bandsaw with inverter-controlled variable speeds, hydraulic systems, smart NC-100 tech for 100 jobs, and HMI touch screen for precise control. Ideal for precision cutting tasks.
Machine Style.......... Automatic
Drive Type............. Inverter controlled infinitely variable speed
*Motor................. 7.5 Hp, *230 3 Ph
Hydraulic Pump Motor... 2 Hp
Hydraulic Oil Capacity 10.5 gallons
Blade Speeds (Variable speed).......... 66-328 fpm
Blade Size (W x T x L) 2” x .06” x 238”
Blade Tension.......... Hydraulic
Coolant Recirculating
Coolant Capacity....... 22.5 gallons
90° Cutting Capacity
Round................ 20.5”
Square............... 20.5”
Rectangular (H x W).. 22” x 20.5”
Bundle Cutting Width (Optional)........ 9.84” x 18.5”
Bundle Cutting Height (Optional)....... 5.9” to 12.4”
Feed Length/Index...... 19.8”
Max. Feed.............. 198”
Length................. 125”
Width.................. 89”
Height................. 89”
Bed Height............. 27.2”
Net Weight............. 6,930 lbs.
Shipping Weight........ 7,326 lbs.
Machine Features:
• Oversized hydraulic cylinder
• Hydraulic shuttle vice assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed,
• blade life, feed vise position and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
Introducing the new 2025 Clausing Kalamazoo H2022NC, a fully automatic 22" x 20.5" horizontal bandsaw with inverter-controlled variable speeds, hydraulic systems, smart NC-100 tech for 100 jobs, and HMI touch screen for precise control. Ideal for precision cutting tasks.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
This Double Column Fully Automatic Horizontal Bandsaw is designed for rugged production use, and it offers high production output and heavy-duty performance in fully automatic operation. Voltage specific model, at either 230 or 460, may require a transformer or special order.
A powerful drive motor provides the power, and the Smart NC-100 technology programmable up to 100 different jobs.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 22" |
| Rect-Cap (W) | 20.5" |
| Rounds-Cap | 20.5" |
| Square-Cap | 20.5" |
| Power | 7.5 hp |
| Type (Auto, Manual, Semi) | Auto |
| Blade Width | 2" |
| Blade Thickness | 0.06" |
| Blade Length | 238" |
| Control | CNC |
| Dimensions | 125 x 89 x 89 in |
| Weight | 6930 lbs |
Machine Style.......... Automatic
Drive Type............. Inverter controlled infinitely variable speed
*Motor................. 7.5 Hp, *230 3 Ph
Hydraulic Pump Motor... 2 Hp
Hydraulic Oil Capacity 10.5 gallons
Blade Speeds (Variable speed).......... 66-328 fpm
Blade Size (W x T x L) 2” x .06” x 238”
Blade Tension.......... Hydraulic
Coolant Recirculating
Coolant Capacity....... 22.5 gallons
90° Cutting Capacity
Round................ 20.5”
Square............... 20.5”
Rectangular (H x W).. 22” x 20.5”
Bundle Cutting Width (Optional)........ 9.84” x 18.5”
Bundle Cutting Height (Optional)....... 5.9” to 12.4”
Feed Length/Index...... 19.8”
Max. Feed.............. 198”
Length................. 125”
Width.................. 89”
Height................. 89”
Bed Height............. 27.2”
Net Weight............. 6,930 lbs.
Shipping Weight........ 7,326 lbs.
Machine Features:
• Oversized hydraulic cylinder
• Hydraulic shuttle vice assembly
• Inverter controlled infinitely variable speed
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Smart NC-100 technology programmable up to 100 different jobs
• Easy recall and execution of stored parts
• Automatic shutoff after preset number of cuts or when out of stock
• 5.7” HMI touch screen incorporating readout on blade speed,
• blade life, feed vise position and error code display for self-diagnostics
• Automatic kerf loss compensation & computer controlled multiple indexing
• Precision feed pressure & feed rate
• Bundle/single cutting mode switch
• Automatic height setting feature
• Hydraulic front and rear vises
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Adjustable cut-off stock fence
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
