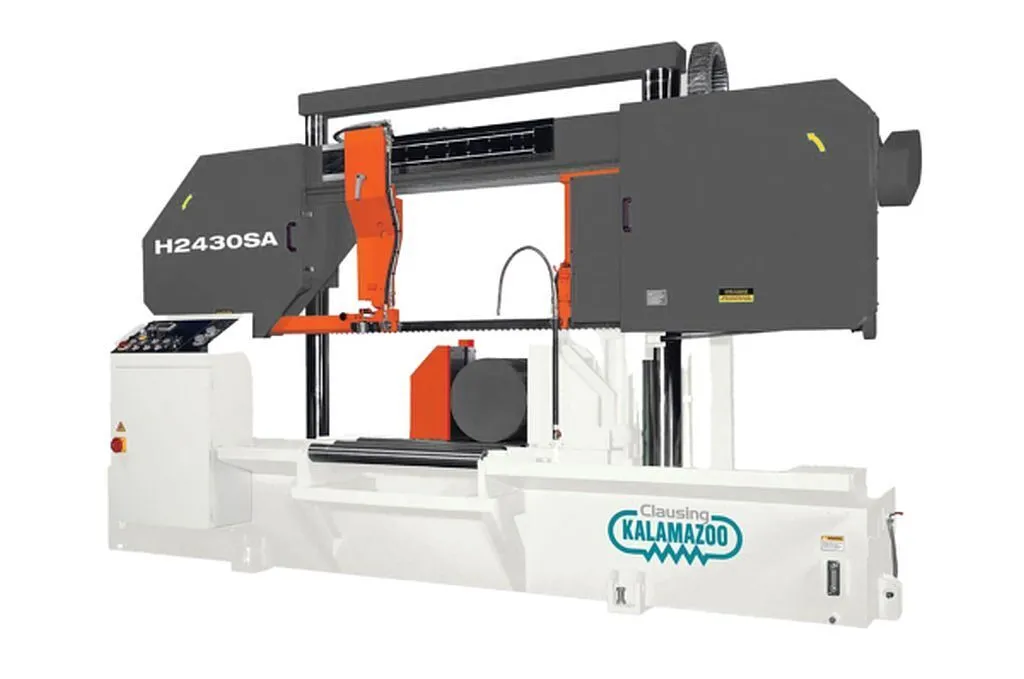

New 2025 Clausing Kalamazoo H2430SA Double Column Semi-Automatic Horizontal Bandsaw 24.4” x 30” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Discover the new 2025 Clausing Kalamazoo H2430SA Bandsaw with a 24.4” x 30” rectangular capacity. Featuring a 10 Hp motor, variable speed, hydraulic blade tensioning, and an integral coolant system, it's designed for precise, powerful performance.
Machine Style.......... Semi-Automatic
Drive Type............. Infinitely variable speed
*Motor................. 10 Hp, *230 3 Ph
Hydraulic Pump Motor... 2 Hp
Hydraulic Oil Capacity 12.5 gallons
Blade Speeds (Variable speed).......... 66-328 fpm
Blade Size (W x T x L) 2” x .063” x 283”
Blade Tension.......... Hydraulic
Coolant................ Recirculating
Coolant Capacity....... 25 gallons
90° Cutting Capacity
Round................ 24.4”
Square............... 24.4”
Rectangular (H x W).. 24.4” x 30”
Length................. 47.2”
Width.................. 140”
Height................. 93”
Bed Height............. 23.6”
Net Weight............. 7,700 lbs.
Shipping Weight........ 8,580 lbs.
Machine Features:
• Oversized precision ground, large dual columns
• Cross link connecting two columns for enhanced structural strength
• Specially designed gearbox for high lateral pressure
• Heavy duty inverter blade drive system
• LED speed indicator
• Cam lock carbide blade guides with bearing guides
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning device
• Integral coolant system
• Synchronized power driven blade brush
• PLC control
• Ergonomically located independent control station
• Precision feed pressure & feed rate dual valve system
• Work height selector & air gap eliminator
• “Last cut” or “keep on” selector
• Split vise jaws
• Full stroke ductile cast iron split vise
• Hydraulically powered in-feed lift roller for forward and backward feeding
• Ductile cast iron vises with replaceable hardened wear plates
• Proximity switch for sensing blade slippage or breakage
• Blade “clip” device for easy blade change
• Discharge roller workbed with built-in coolant return
• Additional flushing hose
• Bi-metal saw blade
• Tool box, leveling pads and an additional wire brush
• Operation & parts manual
• Two (2) year limited warranty
Discover the new 2025 Clausing Kalamazoo H2430SA Bandsaw with a 24.4” x 30” rectangular capacity. Featuring a 10 Hp motor, variable speed, hydraulic blade tensioning, and an integral coolant system, it's designed for precise, powerful performance.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
This Double Column Semi-Automatic Horizontal Bandsaw is designed for rugged production use, and it offers high production output and heavy-duty performance in Semi-automatic operation. Voltage specific model, at 230 volts, other voltages may require a transformer or special order.
Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 24.4" |
| Rect-Cap (W) | 30" |
| Rounds-Cap | 24.4" |
| Square-Cap | 24.4" |
| Power | 10 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 2" |
| Blade Thickness | 0.063" |
| Blade Length | 283" |
| Dimensions | 47.2in x 140in x 93in |
| Weight | 5720 lbs |
Machine Style.......... Semi-Automatic
Drive Type............. Infinitely variable speed
*Motor................. 10 Hp, *230 3 Ph
Hydraulic Pump Motor... 2 Hp
Hydraulic Oil Capacity 12.5 gallons
Blade Speeds (Variable speed).......... 66-328 fpm
Blade Size (W x T x L) 2” x .063” x 283”
Blade Tension.......... Hydraulic
Coolant................ Recirculating
Coolant Capacity....... 25 gallons
90° Cutting Capacity
Round................ 24.4”
Square............... 24.4”
Rectangular (H x W).. 24.4” x 30”
Length................. 47.2”
Width.................. 140”
Height................. 93”
Bed Height............. 23.6”
Net Weight............. 7,700 lbs.
Shipping Weight........ 8,580 lbs.
Machine Features:
• Oversized precision ground, large dual columns
• Cross link connecting two columns for enhanced structural strength
• Specially designed gearbox for high lateral pressure
• Heavy duty inverter blade drive system
• LED speed indicator
• Cam lock carbide blade guides with bearing guides
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning device
• Integral coolant system
• Synchronized power driven blade brush
• PLC control
• Ergonomically located independent control station
• Precision feed pressure & feed rate dual valve system
• Work height selector & air gap eliminator
• “Last cut” or “keep on” selector
• Split vise jaws
• Full stroke ductile cast iron split vise
• Hydraulically powered in-feed lift roller for forward and backward feeding
• Ductile cast iron vises with replaceable hardened wear plates
• Proximity switch for sensing blade slippage or breakage
• Blade “clip” device for easy blade change
• Discharge roller workbed with built-in coolant return
• Additional flushing hose
• Bi-metal saw blade
• Tool box, leveling pads and an additional wire brush
• Operation & parts manual
• Two (2) year limited warranty
