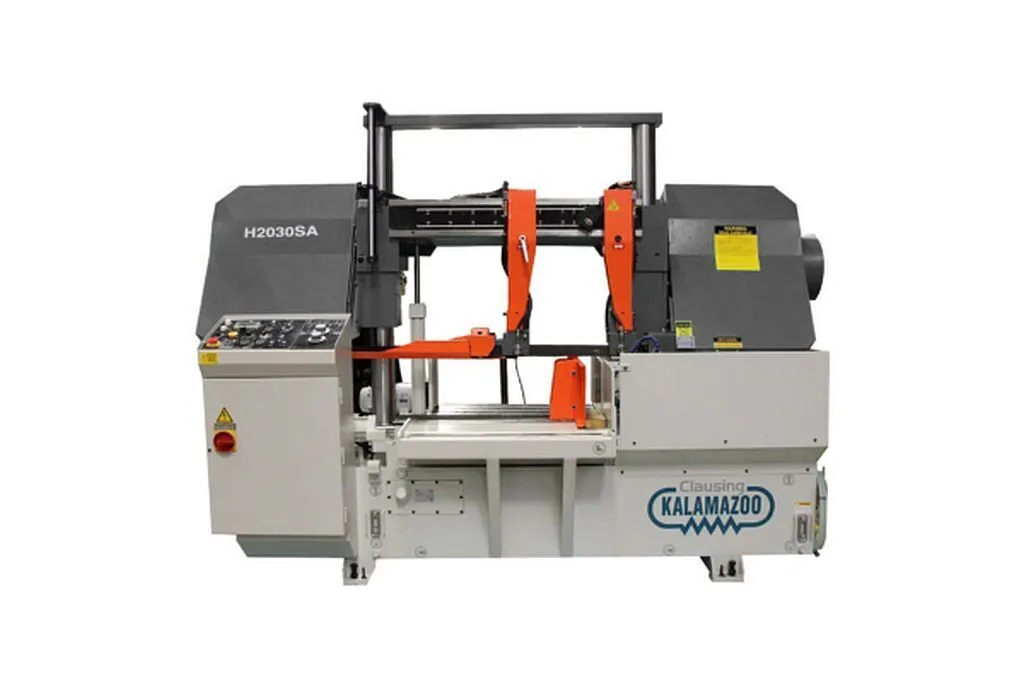

New 2025 Clausing Kalamazoo H2030SA Double Column Semi-Automatic Horizontal Bandsaw 20” x 29.5” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
New 2025 Clausing Kalamazoo H2030SA double column semi-automatic bandsaw with 20"x29.5" max capacity. Precision features include digital blade speed, automatic tension, and integral coolant. Robust design ensures efficient cuts.
Machine Style.......... Semi-Automatic
Drive Type............. Infinitely Variable Speed
*Motor................. 7.5 Hp, *230 3 Ph
Hydraulic Pump Motor... 2 Hp
Hydraulic Oil Capacity 10 gallons
Blade Speeds (Variable speed).......... 66-328 fpm
Blade Size (W x T x L)................. 2” x .063” x 238”
Blade Tension.......... Hydraulic
Coolant................ Recirculating
Coolant Capacity....... 21.5 gallons
90° Cutting Capacity
Round................ 20”
Square............... 20”
Rectangular.......... 20” x 29.5”
Length................. 122.9”
Width.................. 42.2”
Height................. 82.1”
Bed Height............. 27.5”
Net Weight............. 5,016 lbs.
Shipping Weight........ 5,720 lbs.
Machine Features:
• Twin column design ensures rigid support during cutting cycle by
• keeping the blade parallel and square to the work piece
• Infinitely variable speed
• Digital blade speed indicator
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Last cut selector switch
• LCD digital blade speed monitor
• Precision feed pressure & feed rate
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
New 2025 Clausing Kalamazoo H2030SA double column semi-automatic bandsaw with 20"x29.5" max capacity. Precision features include digital blade speed, automatic tension, and integral coolant. Robust design ensures efficient cuts.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
This Double Column Semi-Automatic Horizontal Bandsaw is designed for rugged production use, and it offers high production output and heavy-duty performance in Semi-automatic operation. Voltage specific model, at 230 volts, other voltages may require a transformer or special order.
Double column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.
Imperial
| Rect-Cap (H) | 20" |
| Rect-Cap (W) | 29.5" |
| Rounds-Cap | 20" |
| Square-Cap | 20" |
| Power | 7.5 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 2" |
| Blade Thickness | 0.063" |
| Blade Length | 238" |
| Dimensions | 122.9 x 42.2 x 82.1 in |
| Weight | 5016 lbs |
Machine Style.......... Semi-Automatic
Drive Type............. Infinitely Variable Speed
*Motor................. 7.5 Hp, *230 3 Ph
Hydraulic Pump Motor... 2 Hp
Hydraulic Oil Capacity 10 gallons
Blade Speeds (Variable speed).......... 66-328 fpm
Blade Size (W x T x L)................. 2” x .063” x 238”
Blade Tension.......... Hydraulic
Coolant................ Recirculating
Coolant Capacity....... 21.5 gallons
90° Cutting Capacity
Round................ 20”
Square............... 20”
Rectangular.......... 20” x 29.5”
Length................. 122.9”
Width.................. 42.2”
Height................. 82.1”
Bed Height............. 27.5”
Net Weight............. 5,016 lbs.
Shipping Weight........ 5,720 lbs.
Machine Features:
• Twin column design ensures rigid support during cutting cycle by
• keeping the blade parallel and square to the work piece
• Infinitely variable speed
• Digital blade speed indicator
• Carbide blade guides with roller bearings
• Two additional guides to support the blade from the top
• Automatic hydraulic blade tensioning
• Power driven blade brushes
• Integral coolant system
• Last cut selector switch
• LCD digital blade speed monitor
• Precision feed pressure & feed rate
• Cast iron vises with replaceable hardened wear plates
• Discharge table with built-in coolant return
• Blade slippage or breakage detection
• Additional flushing hose
• Bi-metal saw blade
• Built in work light
• Tool box, leveling pads and an additional wire brush
• Operation and parts manual
• Two (2) year limited warranty
