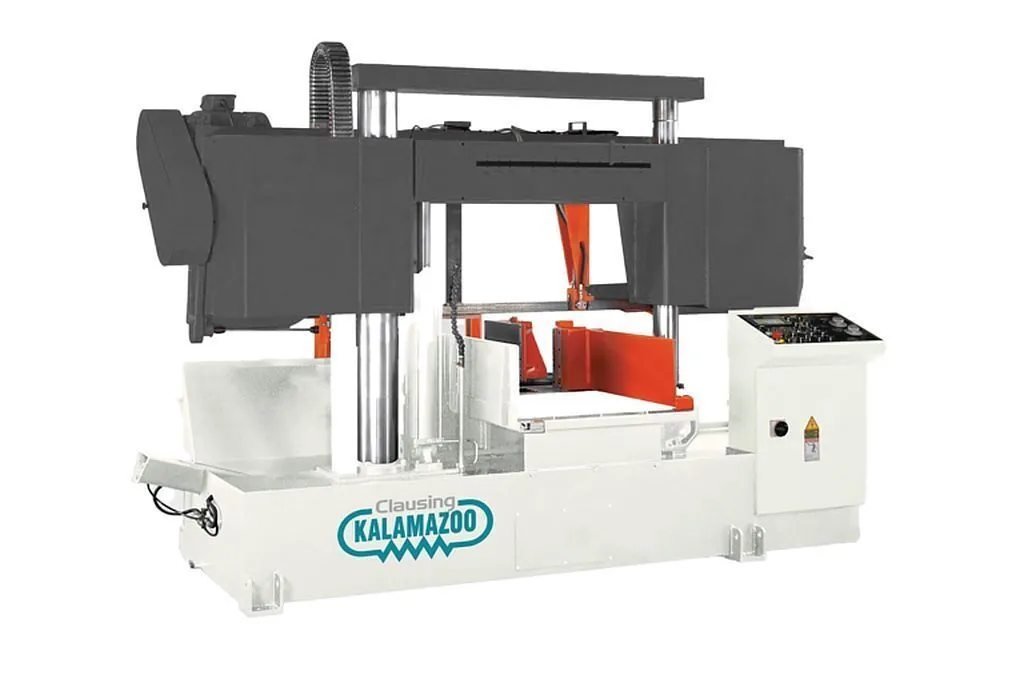

New 2025 Clausing Kalamazoo H3133NCNC Double Column Automatic Horizontal Bandsaw 31.5” x 33.5" Max Rectangular Capacity
Have one to sell?
ConditionNew
New
New 2025 Clausing Kalamazoo H3133NC Horizontal Bandsaw offers automatic cutting with a 31.5" x 33.5" capacity. Features inverter control, hydraulic tension, tungsten guide, and SNC controller. Motor output includes 10 Hp saw blade power. Weighs 13,200 lbs.
Machine Style.......... Automatic
Drive Type............. Inverter Controlled
Round........ 31.5”
Square....... 31.5” x 31.5”
Rectangle.... 31.5” x 33.5”
Speed........ 15-80 m/min (49-293 fpm)
Size......... 27’ 3” x 2.5” x .062”
Tension...... Hydraulic (Automatic Blade Breakage Detector)
Guide........ Tungsten Carbide Blade Guide
Cleaning..... Powered Wire Brush
*Motor Output
Saw Blade.... 10 Hp 230v 3ph
Hydraulic.... 3 Hp
Coolant...... ¼ Hp
Tank Capacity
Hydraulic Oil 100L
Coolant...... 120L
Feeding
Mode........... Hydraulic, Automatic, SNC controller
Length......... Single Stroke: 16.5” , Multiple: max. 256″
Vise Control... 2 full stroke hydraulic cylinder vises (one set being shuttle vices)
Minimum clamped width: 10.6″
Net Weight......... 13,200 lbs.
Gross Weight......... 19,360 lbs.
Floor Space (L x W x H).......... 153” x 92” x 116”
New 2025 Clausing Kalamazoo H3133NC Horizontal Bandsaw offers automatic cutting with a 31.5" x 33.5" capacity. Features inverter control, hydraulic tension, tungsten guide, and SNC controller. Motor output includes 10 Hp saw blade power. Weighs 13,200 lbs.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
This Double Column Fully Automatic Horizontal Bandsaw is designed for rugged production use, and it offers high production output and heavy-duty performance in fully automatic operation. Voltage specific model, at either 230 or 460, may require a transformer or special order.
A powerful drive motor provides the power, and the Smart NC-20 technology allows programmable jobs.
Three phase refers to three individual lines that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. This provides for a more stable flow of voltage and more horsepower to the machine.
Imperial
| Rect-Cap (H) | 31.5" |
| Rect-Cap (W) | 33.5" |
| Rounds-Cap | 31.5" |
| Square-Cap | 31.5" |
| Power | 10 hp |
| Type (Auto, Manual, Semi) | Auto |
| Blade Width | 2.5" |
| Blade Thickness | 0.062" |
| Blade Length | 327" |
| Control | CNC |
| Dimensions | 153” x 92” x 116” |
| Weight | 13,200 lbs. |
Machine Style.......... Automatic
Drive Type............. Inverter Controlled
Round........ 31.5”
Square....... 31.5” x 31.5”
Rectangle.... 31.5” x 33.5”
Speed........ 15-80 m/min (49-293 fpm)
Size......... 27’ 3” x 2.5” x .062”
Tension...... Hydraulic (Automatic Blade Breakage Detector)
Guide........ Tungsten Carbide Blade Guide
Cleaning..... Powered Wire Brush
*Motor Output
Saw Blade.... 10 Hp 230v 3ph
Hydraulic.... 3 Hp
Coolant...... ¼ Hp
Tank Capacity
Hydraulic Oil 100L
Coolant...... 120L
Feeding
Mode........... Hydraulic, Automatic, SNC controller
Length......... Single Stroke: 16.5” , Multiple: max. 256″
Vise Control... 2 full stroke hydraulic cylinder vises (one set being shuttle vices)
Minimum clamped width: 10.6″
Net Weight......... 13,200 lbs.
Gross Weight......... 19,360 lbs.
Floor Space (L x W x H).......... 153” x 92” x 116”
