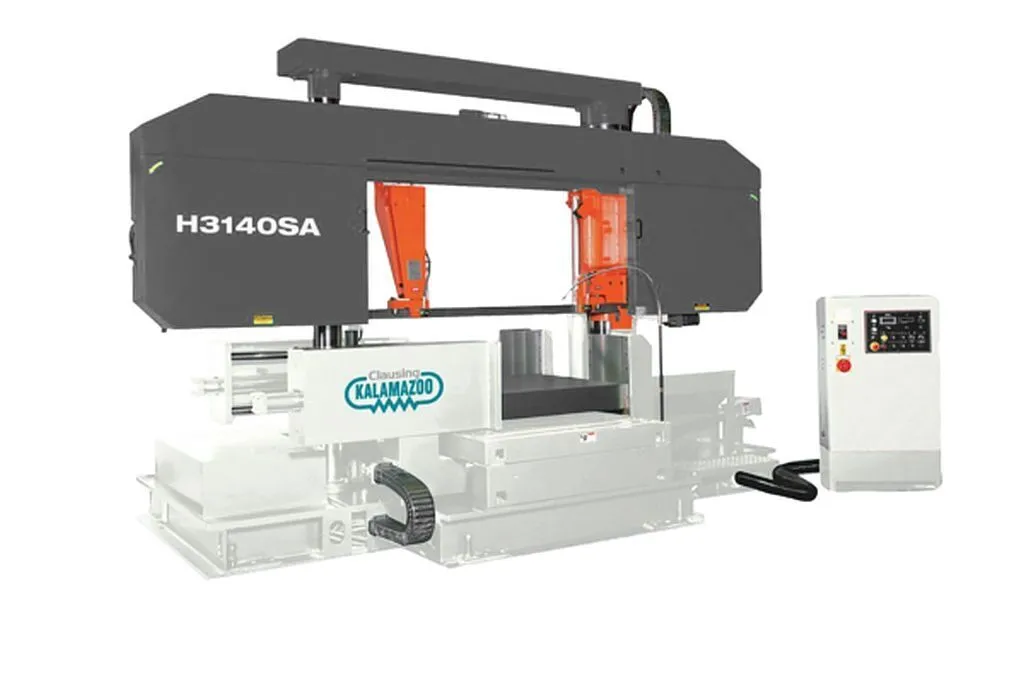

New 2025 Clausing Kalamazoo H3140SA Double Column Semi-Automatic Horizontal Bandsaw 31.5” x 39.4” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Introducing the 2025 Clausing Kalamazoo H3140SA, a new semi-automatic horizontal bandsaw with 31.5" x 39.4" rectangular capacity, 15 hp motor, and inverter drive. Experience precise cutting with hydraulic control and variable speed options.
Machine Style.......... Semi-Automatic
Drive Type.......... Inverter drive with infinitely variable blade speeds with blade speed indicator
Maximum Capacity Round (inch).......... 31.5
Maximum Capacity Rectangle (inch).......... 31.5 x 39.4
Voltage.......... 230
Phase.......... 3
Coolant System.......... Yes
Angular Cuts at 45 Degrees (inch).......... N/A
Blade Size.......... 2.5” x .063” x 346.5”
Blade Speeds (SFPM).......... 49-264
Blade Guide.......... TypeCarbide
Motor Horsepower.......... 15
Machine Features:
• Inverter drive with infinitely variable blade speeds with blade speed indicator
• Dual Column design with precision ground columns ensures smooth saw frame movement and consistent cutting force throughout the cutting cycle
• Hydraulic controlled tungsten carbide blade guide
• Hydraulic controlled blade tension device
• Hydraulic driven guide arm
• Precise flow control valve to finely adjust the cutting speed
• Two full stroke cylinder vices
• Proximity switch for sensing blade slippage or breakage
• Discharge table with built-in coolant return
• Auto shut-off function automatically stops the machine and shuts down the hydraulic system at the end of the last cut
• 2 Year limited warranty
Introducing the 2025 Clausing Kalamazoo H3140SA, a new semi-automatic horizontal bandsaw with 31.5" x 39.4" rectangular capacity, 15 hp motor, and inverter drive. Experience precise cutting with hydraulic control and variable speed options.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
This model is designed for rugged production use, and it offers high production output and heavy-duty performance in Semi-automatic operation. Voltage specific model, at 230 volts, other voltages may require a transformer or special order.
Twin column design ensures rigid support during cutting cycle by keeping the blade parallel and square to the work piece.
Imperial
| Rect-Cap (H) | 31.5" |
| Rect-Cap (W) | 39.4" |
| Rounds-Cap | 31.5" |
| Power | 15 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 2.5" |
| Blade Thickness | 0.063" |
| Blade Length | 346.5" |
Machine Style.......... Semi-Automatic
Drive Type.......... Inverter drive with infinitely variable blade speeds with blade speed indicator
Maximum Capacity Round (inch).......... 31.5
Maximum Capacity Rectangle (inch).......... 31.5 x 39.4
Voltage.......... 230
Phase.......... 3
Coolant System.......... Yes
Angular Cuts at 45 Degrees (inch).......... N/A
Blade Size.......... 2.5” x .063” x 346.5”
Blade Speeds (SFPM).......... 49-264
Blade Guide.......... TypeCarbide
Motor Horsepower.......... 15
Machine Features:
• Inverter drive with infinitely variable blade speeds with blade speed indicator
• Dual Column design with precision ground columns ensures smooth saw frame movement and consistent cutting force throughout the cutting cycle
• Hydraulic controlled tungsten carbide blade guide
• Hydraulic controlled blade tension device
• Hydraulic driven guide arm
• Precise flow control valve to finely adjust the cutting speed
• Two full stroke cylinder vices
• Proximity switch for sensing blade slippage or breakage
• Discharge table with built-in coolant return
• Auto shut-off function automatically stops the machine and shuts down the hydraulic system at the end of the last cut
• 2 Year limited warranty
