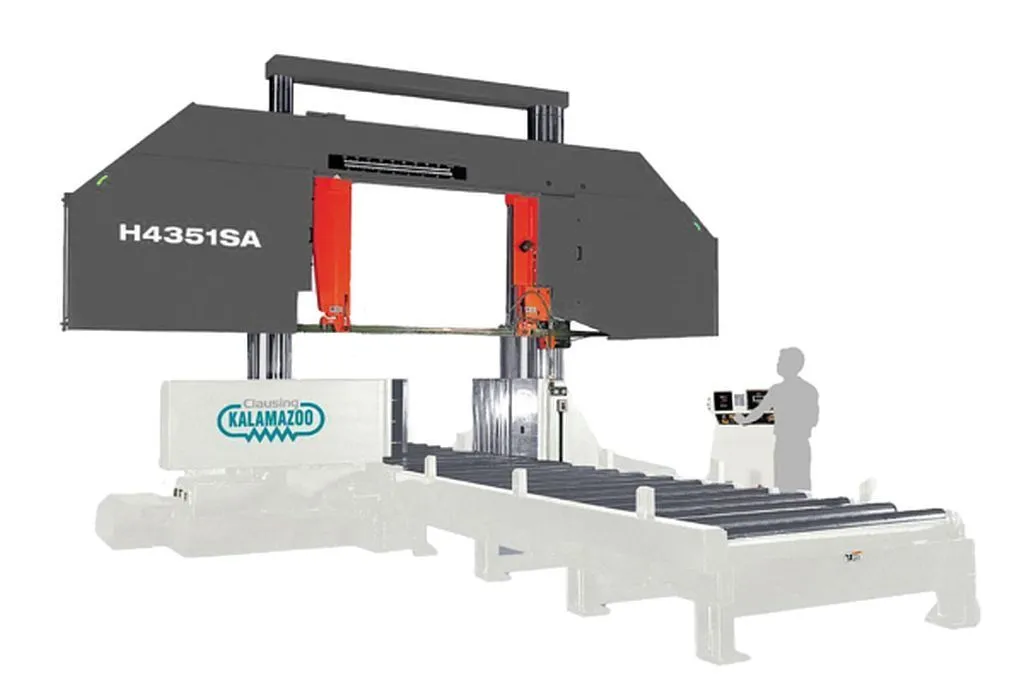

New 2025 Clausing Kalamazoo H4351SA Double Column Semi-Automatic Horizontal Bandsaw 43.3” x 51.2” Max Rectangular Capacity
Have one to sell?
ConditionNew
New
Discover the new 2025 Clausing Kalamazoo H4351SA Horizontal Bandsaw, boasting a 43.3” x 51.2” max rectangular capacity. With a powerful 15 HP motor, inverter drive, and hydraulic controls, this semi-automatic saw ensures precision and efficiency.
Machine Style.......... Semi-Automatic
Drive Type.......... Inverter drive with infinitely variable blade speeds with blade speed indicator
Maximum Capacity Round (inch)..........43.3
Maximum Capacity Rectangle (inch)..........43.3 x 51.2
Voltage..........230
Phase.......... 3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch).......... N/A
Blade Size.......... 3” x .063” x 433”
Blade Speeds (SFPM).......... 49-264
Blade Guide Type.......... Carbide
Motor Horsepower.......... 15
Machine Features:
• Inverter drive with infinitely variable blade speeds with blade speed indicator
• Dual Column design with precision ground columns ensures smooth
• saw frame movement and consistent cutting force throughout the cutting cycle
• Hydraulic controlled tungsten carbide blade guide
• Hydraulic controlled blade tension device
• Hydraulic driven guide arm
• Hydraulic driven work bed with rollers for moving large material safely
• Three sets of vises designs. The front and middle vises hold the stock during cutting while the guide
• vise can be separately controlled to guide the material during feeding cycle
• Discharge table with built-in coolant return
• Stock position cylinder pushes stock away from fixed vise for easy material handling
• Precision Feed Pressure control valve with micro-precision adjustment
• 2 Year limited warranty
Discover the new 2025 Clausing Kalamazoo H4351SA Horizontal Bandsaw, boasting a 43.3” x 51.2” max rectangular capacity. With a powerful 15 HP motor, inverter drive, and hydraulic controls, this semi-automatic saw ensures precision and efficiency.
T.R. Wigglesworth Machinery Company has proudly represented Clausing for over 40 Years.
For over 113 years, Clausing has been a leader in the Metalworking industry with rugged dependable Machine Tools. Today, Clausing markets and manufactures the best Machine Tools the world has to offer. Every product is backed by our independently operated Clausing Service Center. The service center has over 80,000 parts and 95% of all orders are shipped within 24 hours. Highly qualified technicians are available to provide phone and on-site support.
This model is designed for rugged production use, and it offers high production output and heavy-duty performance in Semi-automatic operation. Voltage specific model, at 230 volts, other voltages may require a transformer or special order.
Dual Column design with precision ground columns ensures smooth saw frame movement and consistent cutting force throughout the cutting cycle.
Imperial
| Rect-Cap (H) | 43.3" |
| Rect-Cap (W) | 51.2" |
| Rounds-Cap | 43.3" |
| Power | 15 hp |
| Type (Auto, Manual, Semi) | Semi |
| Blade Width | 3" |
| Blade Thickness | 0.063" |
| Blade Length | 433" |
Machine Style.......... Semi-Automatic
Drive Type.......... Inverter drive with infinitely variable blade speeds with blade speed indicator
Maximum Capacity Round (inch)..........43.3
Maximum Capacity Rectangle (inch)..........43.3 x 51.2
Voltage..........230
Phase.......... 3
Coolant System..........Yes
Angular Cuts at 45 Degrees (inch).......... N/A
Blade Size.......... 3” x .063” x 433”
Blade Speeds (SFPM).......... 49-264
Blade Guide Type.......... Carbide
Motor Horsepower.......... 15
Machine Features:
• Inverter drive with infinitely variable blade speeds with blade speed indicator
• Dual Column design with precision ground columns ensures smooth
• saw frame movement and consistent cutting force throughout the cutting cycle
• Hydraulic controlled tungsten carbide blade guide
• Hydraulic controlled blade tension device
• Hydraulic driven guide arm
• Hydraulic driven work bed with rollers for moving large material safely
• Three sets of vises designs. The front and middle vises hold the stock during cutting while the guide
• vise can be separately controlled to guide the material during feeding cycle
• Discharge table with built-in coolant return
• Stock position cylinder pushes stock away from fixed vise for easy material handling
• Precision Feed Pressure control valve with micro-precision adjustment
• 2 Year limited warranty
